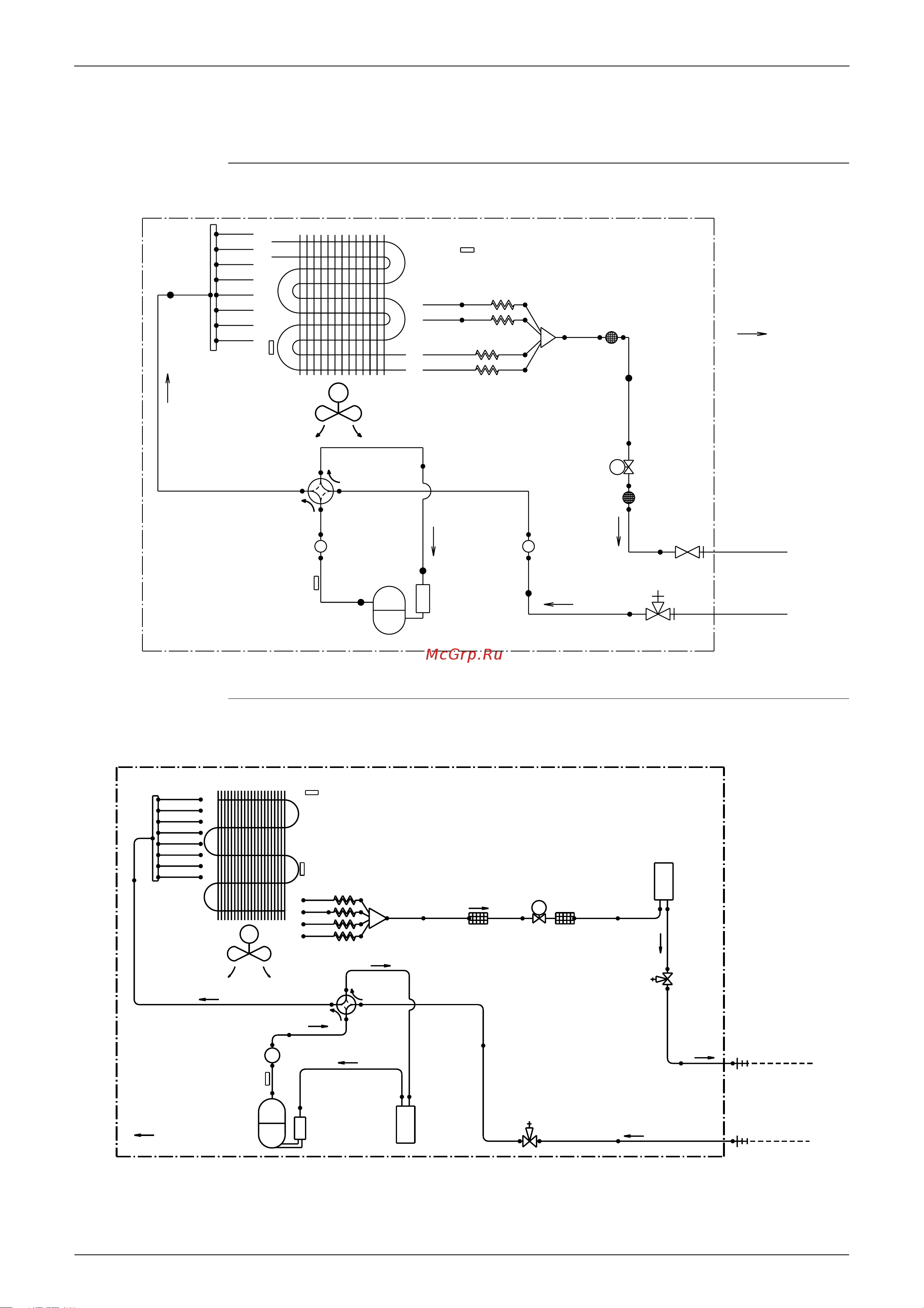

Piping Diagrams SiBE041011_A
122 Appendix
1.2 Outdoor Unit
1.2.1 Cooling Only
RKS60F3V1B
RKS71FAV1B
OUTDOOR UNIT
HEAT EXCHANGER
7.9CuT
7.9CuT
7.9CuT
7.9CuT
7.9CuT
12.7CuT
CAPILLARY TUBE 1
7.9CuT 4.0CuT
7.9CuT
4.0CuT7.9CuT
7.9CuT
REFRIGERANT FLOW
6.4CuT
CAPILLARY TUBE 2
COOLING
7.9CuT
CAPILLARY TUBE 3
4.0CuT
6.4CuT
4.0CuT
CAPILLARY TUBE 4
M
PROPELLER FAN
6.4CuT
12.7CuT
EV
12.7CuT
12.7CuT
7.9CuT
12.7CuT
MUFFLER
MUFFLER
6.4CuT
12.7CuT
7.9CuT
12.7CuT
COMPRESSOR
HEAT
EXCHANGER
THERMISTOR
OUTDOOR AIR TEMPERATURE
THERMISTOR
MUFFLER
WITH
FILTER
ELECTRONIC
EXPANSION
VALVE
MUFFLER
WITH FILTER
FOUR WAY
VALVE
NORMALLY : OFF
DISCHARGE PIPE
THERMISTOR
FIELD PIPING
(
6.4CuT
)
FIELD PIPING
(
12.7CuT
)
LIQUID
STOP VALVE
GAS STOP VALVE
WITH SERVICE PORT
3D051636U
EV
HEADER
9.5CuT
9.5CuT
DC FAN MOTOR
9.5CuT
12.7CuT
15.9CuT
7.9CuT
FILTER
15.9CuT
REFRIGERANT FLOW
9.5CuT
7.9CuT
15.9CuT
7.9CuT
DISTRIBUTOR
COMPRESSOR
COOLING
RECEIVER
HEAT EXCHANGER
4.0CuT
7.9CuT
7.9CuT
15.9CuT
9.5CuT
15.9CuT
7.9CuT
FILTER
ACCUMULATOR
M
9.5CuT
15.9CuT
7.9CuT
CAPILLARY TUBE
15.9CuT
PROPELLER FAN
ACCUMULATOR
7.9CuT
9.5CuT
MUFFLER
7.9CuT
7.9CuT
7.9CuT
OUTDOOR UNIT
9.5CuT
7.9CuT
DISCHARGE PIPE
THERMISTOR
4-WAY
VALVE
NORMALLY: OFF
OUTDOOR TEMPERATURE
THERMISTOR
GAS LINE
STOP VALVE
MOTOR
OPERATED
VALVE
HEAT EXCHANGER (CONDENSER)
THERMISTOR
LIQUID LINE
STOP VALVE
FIELD PIPING
LIQUID (6.4 CuT)
FIELD PIPING
GAS (15.9 CuT)
3D054596F
