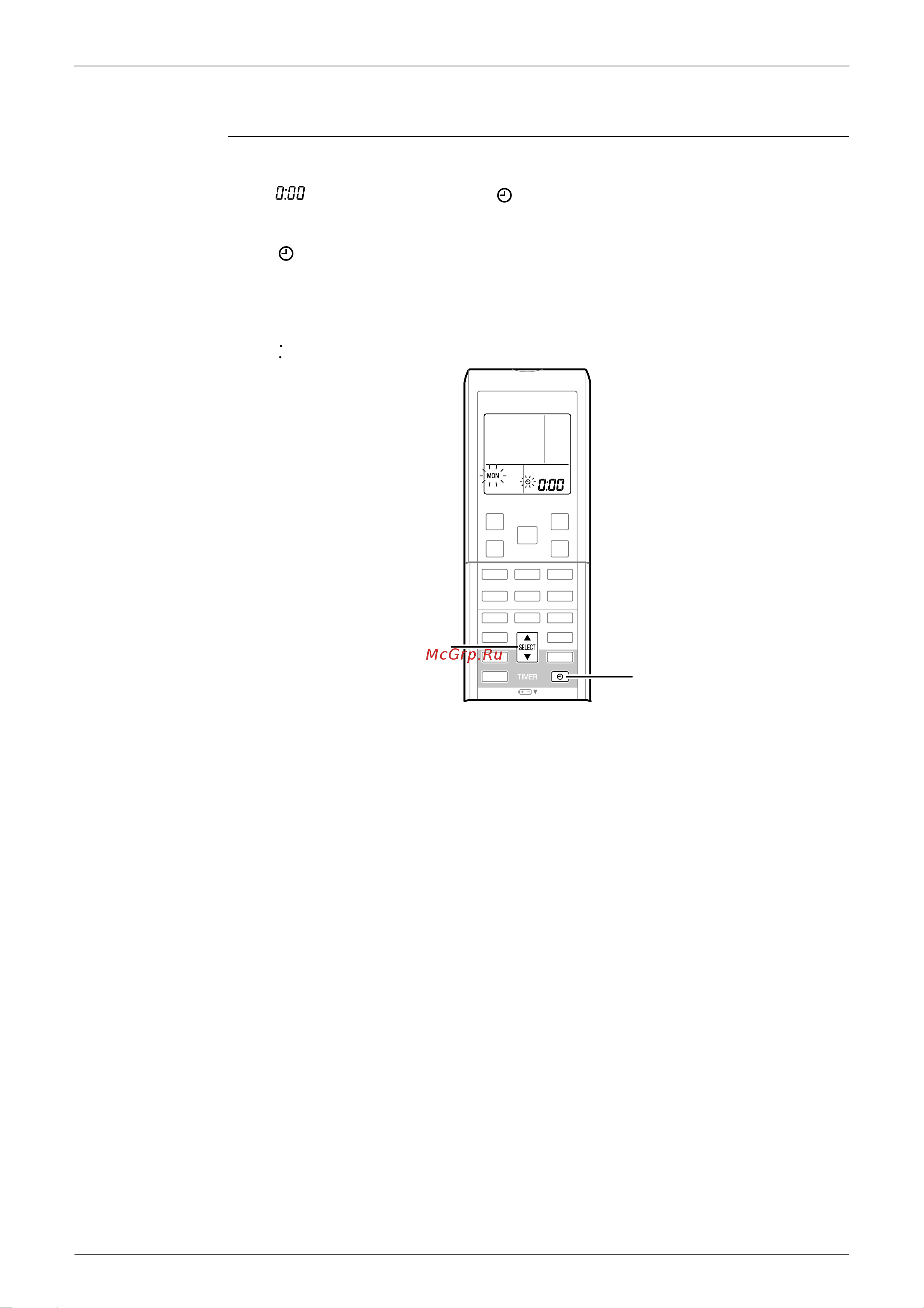

Main Functions SiBE041011_A
28 Function and Control
1.12 Clock Setting
ARC452 Series The clock can be set by taking the following steps:
1. Press the [CLOCK] button.
→ is displayed and MON and blink.
2. Press the [SELECT] or button to set the clock to the current day of the week.
3. Press the [CLOCK] button.
→ blinks.
4. Press the [SELECT] or button to set the clock to the present time.
Holding down the [SELECT] or button increases or decreases the time display rapidly.
5. Press the [CLOCK] button. (Point the remote controller at the indoor unit when pressing the
button.)
→ blinks and clock setting is completed.
SELECT button
CLOCK button
(R18281)
