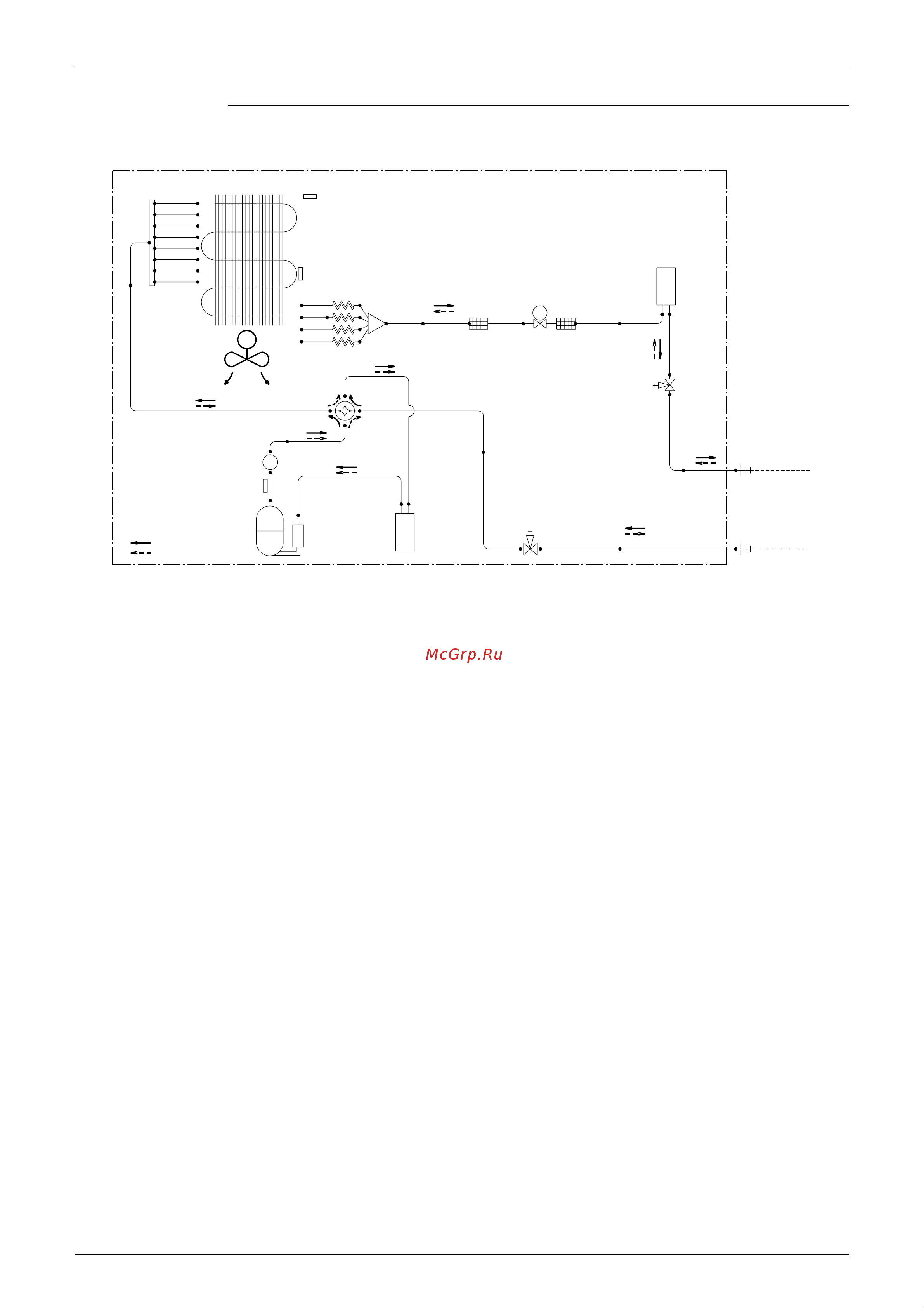

Piping Diagrams SiBE041011_A
124 Appendix
RXS71FAV1B, RXS71FAV1B9
OUTDOOR UNIT
HEAT EXCHANGER
7.9CuT
7.9CuT
HEADER
7.9CuT
7.9CuT
7.9CuT
7.9CuT
7.9CuT
12.7CuT
7.9CuT
RECEIVER
4.0CuT
7.9CuT
EV
9.5CuT 9.5CuT9.5CuT 9.5CuT9.5CuT
FILTERFILTERDISTRIBUTOR
DC FAN MOTOR
M
9.5CuT
CAPILLARY TUBE
PROPELLER FAN
15.9CuT15.9CuT
7.9CuT
9.5CuT
7.9CuT
MUFFLER
9.5CuT
15.9CuT
15.9CuT
15.9CuT
7.9CuT
REFRIGERANT FLOW
COMPRESSOR
ACCUMULATOR ACCUMULATOR
COOLING
HEATING
15.9CuT 15.9CuT
OUTDOOR TEMPERATURE
THERMISTOR
HEAT EXCHANGER
(
CONDENSER
)
THERMISTOR
ELECTRONIC
EXPANSION
VALVE
4-WAY
VALVE
ON: HEATING
DISCHARGE PIPE
THERMISTOR
GAS LINE
STOP VALVE
LIQUID LINE
STOP VALVE
FIELD PIPING
LIQUID
(
6.4CuT
)
FIELD PIPING
LIQUID
(
15.9CuT
)
3D054593L
