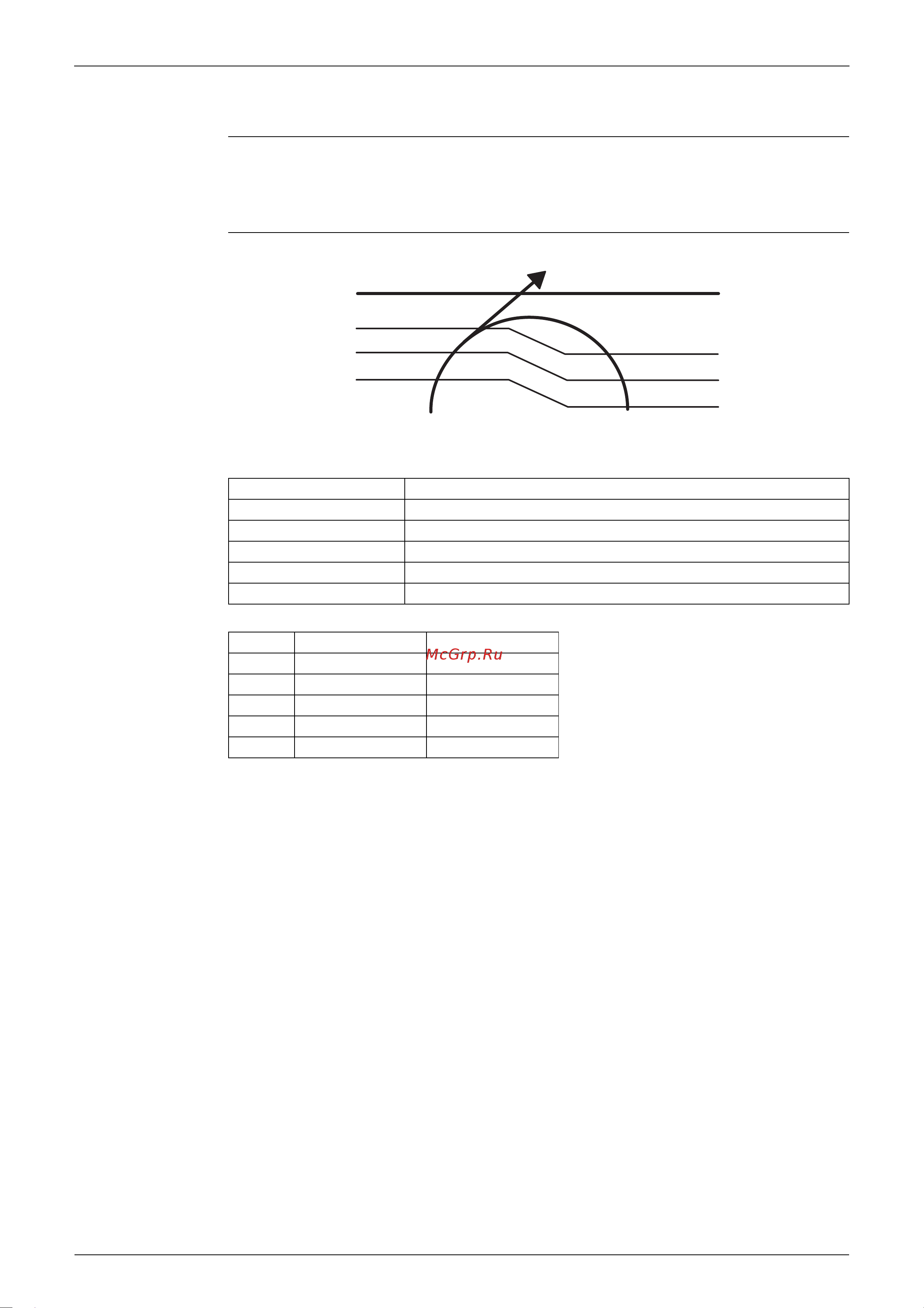

Daikin RXS60F3V1B [54/141] Discharge pipe temperature control
![Daikin RKS60F3V1B [54/141] Discharge pipe temperature control](/views2/1761744/page54/bg36.png)
Control Specification SiBE041011_A
44 Function and Control
3.4 Discharge Pipe Temperature Control
Outline The discharge pipe temperature is used as the internal temperature of the compressor. If the
discharge pipe temperature rises above a certain level, the upper limit of frequency is set to
keep the discharge pipe temperature from rising further.
Detail
The temperatures D and E are the same.
Zone Control
Stop zone When the temperature reaches the stop zone, the compressor stops.
Dropping zone The upper limit of frequency decreases.
Keep zone The upper limit of frequency is kept.
Up zone The upper limit of frequency increases.
Reset zone The upper limit of frequency is canceled.
60 class 71 class
A (ºC) 110 120
B (ºC) 103 111
C (ºC) 101.5 109
D (ºC) 100 107
E (ºC) 95 107
(R14642)
Discharge pipe
temperature
Stop zone
Dropping zone
Keep zone
Up zone
Reset zone
E˚C
A˚C
B˚C
C˚C
D˚C
