Daikin RKS35F2V1B [170/216] Removal of the vertical blade

SiBE06-708 Indoor Unit

Removal Procedure 159

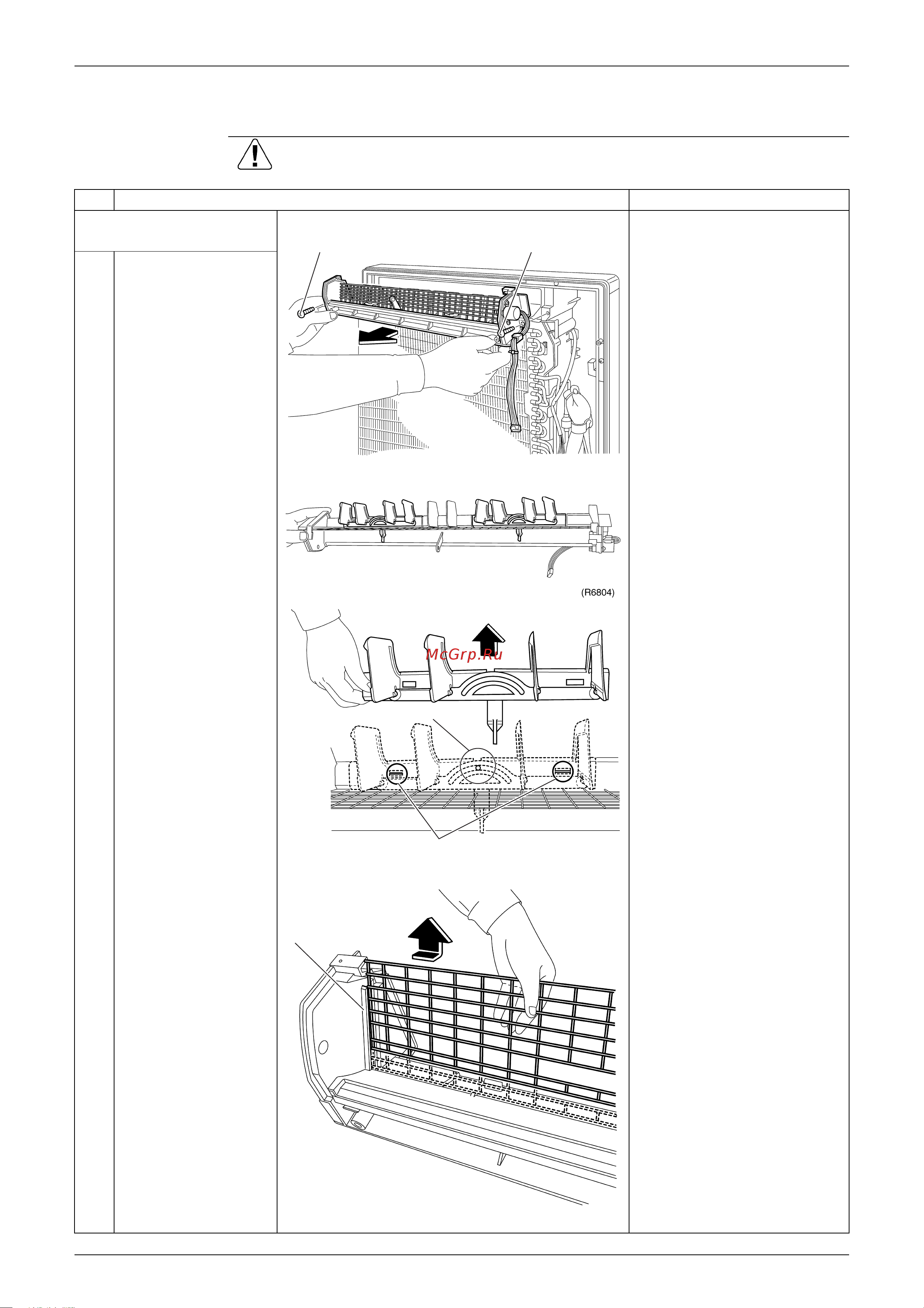

1.5 Removal of the Vertical Blade

Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies

before disassembling work.

Step Procedure Points

1. Removing the vertical

blade (upper).

Remove the 2 screws

from the upper

discharge grille.

Remove the 2 right and

left hooks and central

hook from the vertical

blade.

Bend the protection net

to remove it from the

right and left grooves

and remove the net.

Screw Screw

(R6803)

Central hook

Hooks

(R6805)

Groove

(R6806)
