Ghibli Rolly 7 E 33 - сетевая [10/20] Foglio 10
![Ghibli Rolly 7 E 33 - сетевая [10/20] Foglio 10](/views2/1777780/page10/bga.png)

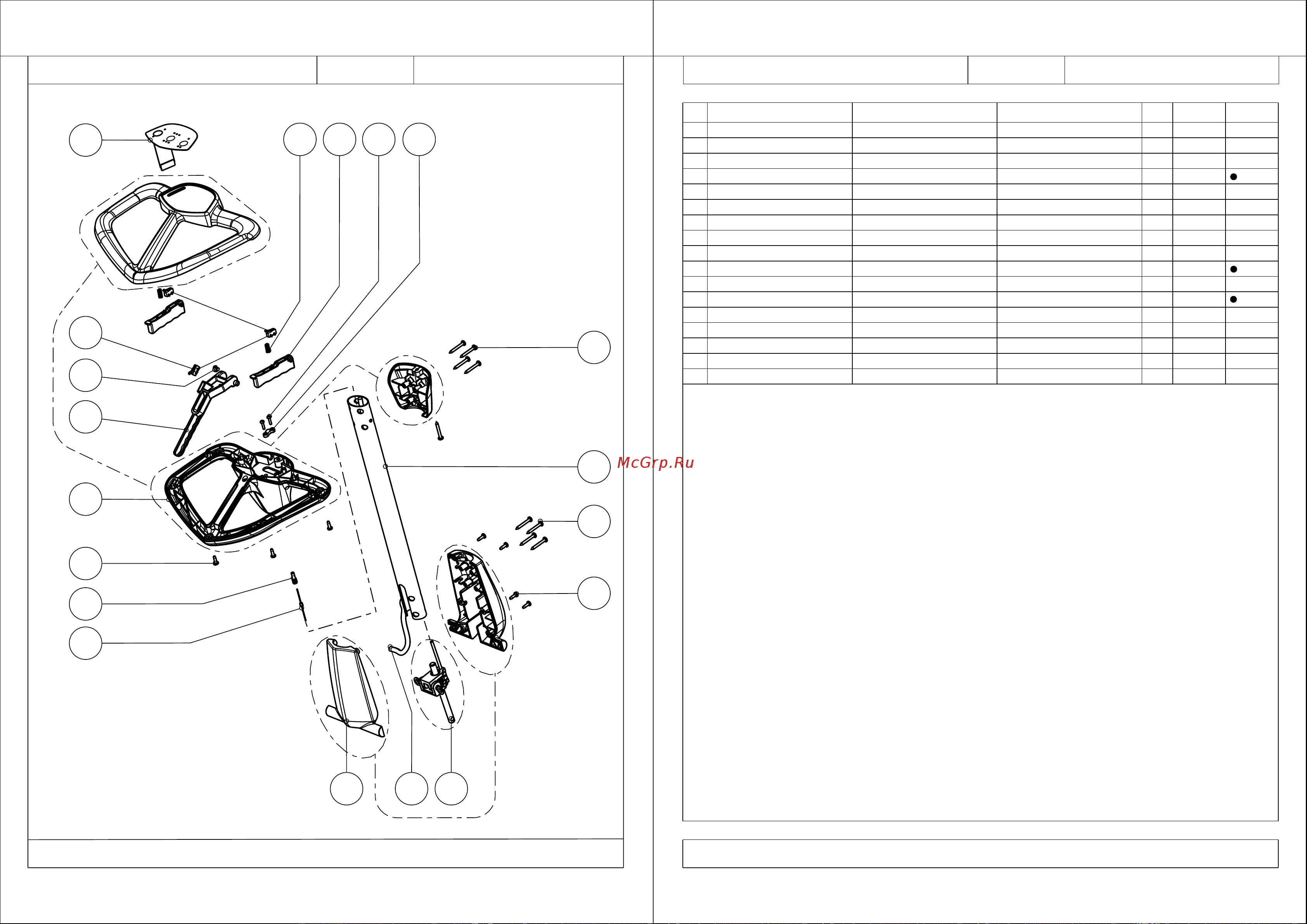

Complete handler Rolly assembly 22.0529.0X Complete handler Rolly assembly 22.0529.0X
Pos
DESCRIZIONE DESCRIPTION DESCRIPTION Q.tà COD. NOTE
1 Blocchetto fissaggio Fastening block Bloc de fixation 1 12-109
2 Cablaggio maniglione Cable Câblage 1 34.0504.00
3 Cablaggio micro maniglione Micro switch wiring Câblage micro-commutateur 1 34.0505.00
4 Cavo sblocco maniglione Cable unlocking handle Cable de débloquage poignée 1 37.0021.00
5 Gruppo copertura snodo Joint cover set Groupe couverture jonction 1 22.0566.00
6 Gruppo maniglione Haft cover set Groupe manche 1 22.0562.00
7 Leva consenso spazzola Lever consent brush Levier de consentement brosse 2 24.0313.0X
8 Leva sgancio maniglione Lever unlock handle Levier de déblocage poignèe 1 24.0314.0X
9 Molla Spring Printemps 2 2500900
10 Set piastrine blocco maniglione Plate locking handle set Plaque de verrouillage poignèe 1 96.0105.00
11 Stelo ovale L= 535 Tube oval L= 535 Tube ovale L= 535 1 35.0053.00
12 Tastiera a membrana Membrane keyboard Clavier à membrane 1 34.0428.00
13 Terminale a vite Screw terminal Borne à vis 1 23.0226.00
14 Vite autofilettante 4X18 Self-tapping screw 4X18 Vis autotaraudante 4X18 2 2508529
15 Vite autofilettante 5X16 Self-tapping screw 5X16 Vis autotaraudante 5X16 11 2508570
16 Vite autofilettante 5X40 Self-tapping screw 5X40 Vis autotaraudante 5X40 9 2508598
17 Vite regolazione cavo Cable adjusting screw Câble vis de réglage 1 23.0225.00
TAV. N° Rolly7½ - 07
TAV. N° Rolly7½ - 07
X= 0: giallo-yellow-jaune
1: blu-blue-bleu
1
2
3
7
8
9
12
14
15
16
16
13
17
15
11
5
6
10
4
