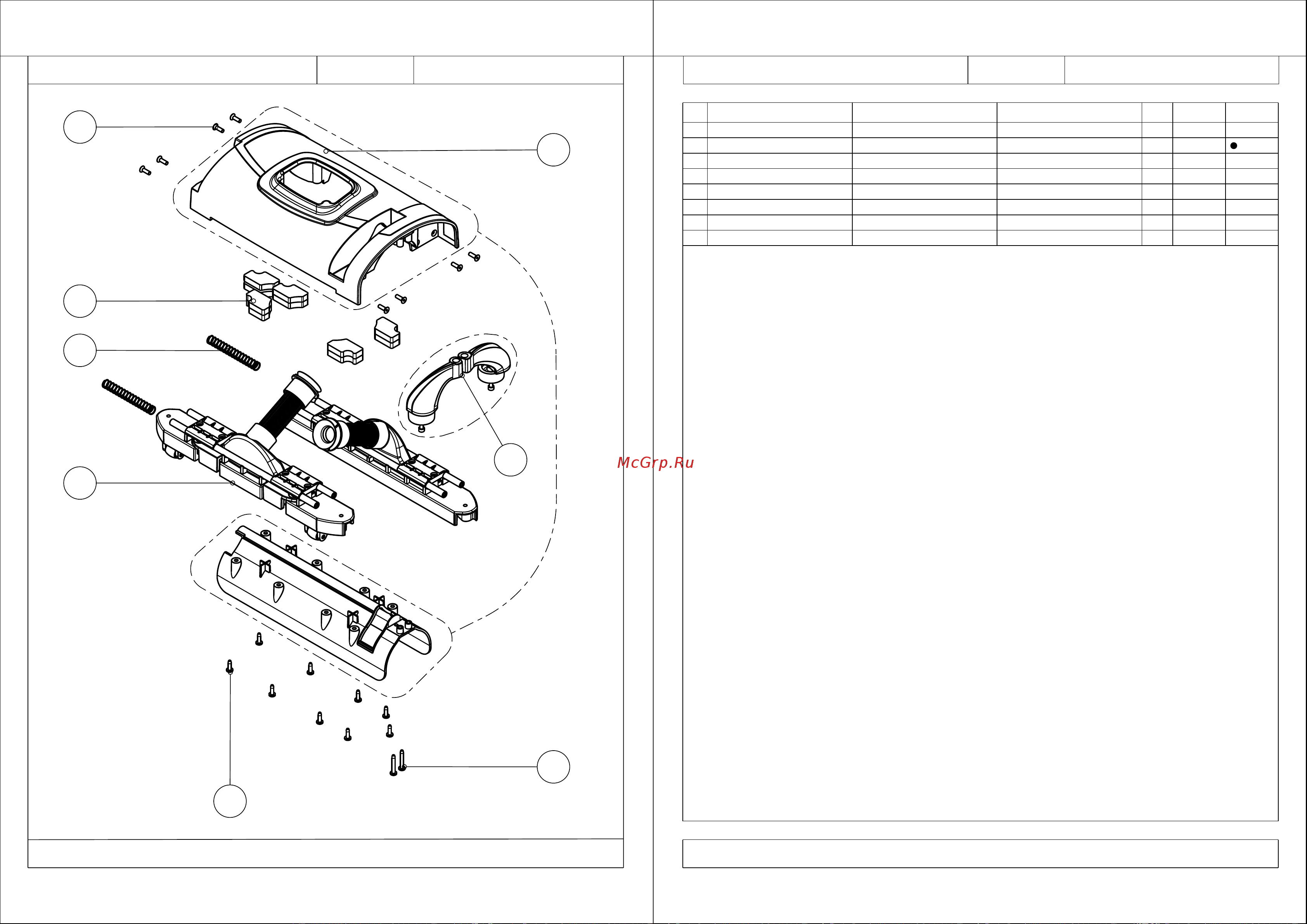

Group header complete 22.0503.0X Group header complete 22.0503.0X
Pos
DESCRIZIONE DESCRIPTION DESCRIPTION Q.tà COD. NOTE
1 Gruppo copertura testata Head cover set Groupe couverture de la tête 1 22.0563.00
2 Gruppo paraurti testata Flange bumper set Group bride pare-chocs 1 96.0104.00
3 Gruppo supporto tergitore Support group squeegee Groupe de soutien seceuer 2 22.0518.0X
4 Molla a compressione Spring Ressort 2 31.0026.00
5 Peso testata Rolly Deck weight Rolly Poids de pont Rolly 10 25.0474.00
6 Vite TC T+ 5X32 Screw 5X32 Vis 5X32 2 2508596
7 Vite TCC 5X16 SP INOX A2 Self-tapping screw 5X16 Vis autotaraudante 5X16 9 2508571
8 Vite TSP T+ M5X16 DIN7991 Screw TSP T+ M5X16 DIN7991 Vis M5X16 DIN7991 8 23.0040.00
TAV. N° Rollly7½ - 10
TAV. N° Rolly7½ - 10
X= 0: giallo-yellow-jaune
1: blu-blue-bleu
3
4
6
7
8
2
5
1
