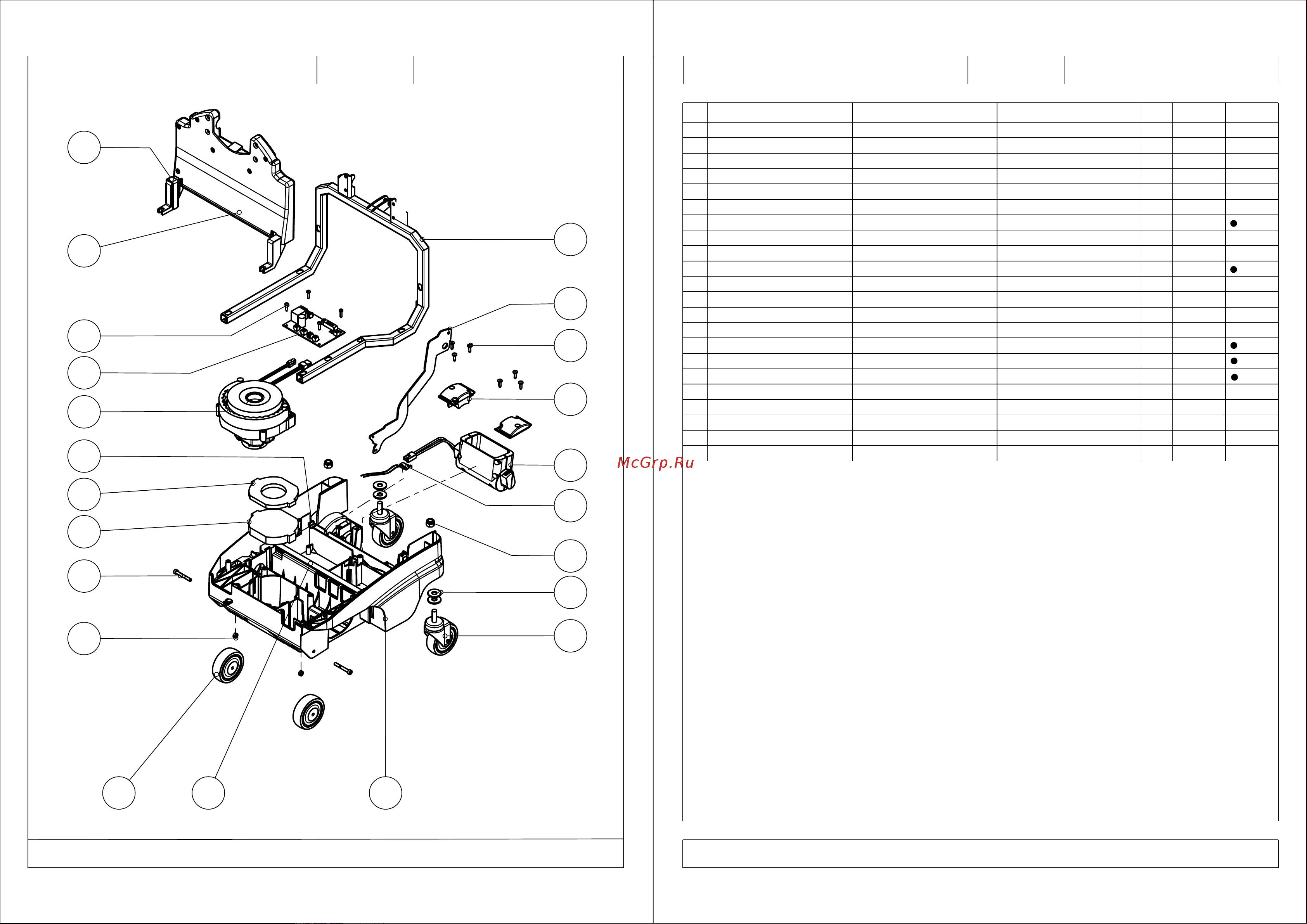

Chassis Rolly7.5 assembly 22.0514.0X Chassis Rolly7.5 assembly 22.0514.0X
Pos
DESCRIZIONE DESCRIPTION DESCRIPTION Q.tà COD. NOTE
1 Blocchetto fiss. supp. batteria Block fixing supp battery Bloquer de serrage supp. batterie 2 24.0317.00
2 Braccio pedale Pedal arm Bras de la pédale 1 25.0451.00
3 Cablaggio rilevamento batteria Wiring battery detection Câblage détection de la batterie 1 34.0501.00
4 Copert. ant. telaio tubolare Fr. 7.5 Front cover tubular chassis Couverture ant. châssis tubulaire 1 24.0302.00
5 Dado autobloccante M10 Self-locking nut M10 Ecrou autobloquant M10 2 23.0161.00
6 Dado M6 ZB UNI 5588 Nut M6 ZB UNI 5588 Ecrou M6 ZB UNI 5588 2 2508710
7 Filtro protez. raffredd. motore asp. Bottom gasket Joint inférieur 1 39.0176.00
8 Gruppo supp. motore aspirazione Aspiration engine support group Group support moteur d'aspiration 1 22.0537.0X
9 Gruppo supporto batteria Battery support assembly Group de soutien de la batterie 1 22.0515.00
10 Guarnizione inferiore Bottom gasket Joint inférieur 1 39.0164.00
11 Mousse adesiva 3X15 L=170 Mousse adhesive 3X15 L=170 Mousse adhésive 3X15 L=170 1 39.0016.00
12 Mousse adesiva 3X15 L=20 Mousse adhesive 3X15 L=20 Mousse adhésive 3X15 L=20 1 39.0016.00
13 Mousse adesiva 3X15 L=270 Mousse adhesive 3X15 L=270 Mousse adhésive 3X15 L=270 1 39.0016.00
14 Rondella 10X30 A2 DIN9021 Whaser 10X30 A2 DIN9021 Rondelle 10X30 A2 DIN9021 4 23.0095.00
15 Ruota pivottante D.80X24 Pivoting wheel Roue pivottant 2 28.0040.00
16 Ruota Ø80X24 Wheel Ø80 Roue Ø80 2 28.0041.00
17 Scheda elettronica Rolly Circuit board Circuit imprimé 1 34.0508.00
18 Telaio plastica Plastic chassis Châssis en plastic 1 24.0300.00
19 Telaio tubolare Rolly7.5 Chassis Rolly7.5 Châssis Rolly 7.5 1 25.0450.00
20 Vite autofilettante 4X18 Self-tapping screw 4X18 Vis autotaraudante 4X18 4 2508529
21 Vite TCC 5X16 SP INOX A2 Self-tapping screw 5X16
Vis autotaraudante 5X16 6 2508571
22 Vite TCEI M6X45 UNI 5931 Screw M6X45 Vis M6X45 2 KA13-982
TAV. N° Rollly7½ - 02
TAV. N° Rolly7½ - 02
X= 0: giallo-yellow-jaune
1: blu-blue-bleu
1
3
4
5
8
9
15
16 18
19
21
22
7
10
17
20
2
6
14
13
12
11
