Ghibli Rolly 7 E 33 - сетевая [14/20] Foglio 14
![Ghibli Rolly 7 E 33 - сетевая [14/20] Foglio 14](/views2/1777780/page14/bge.png)

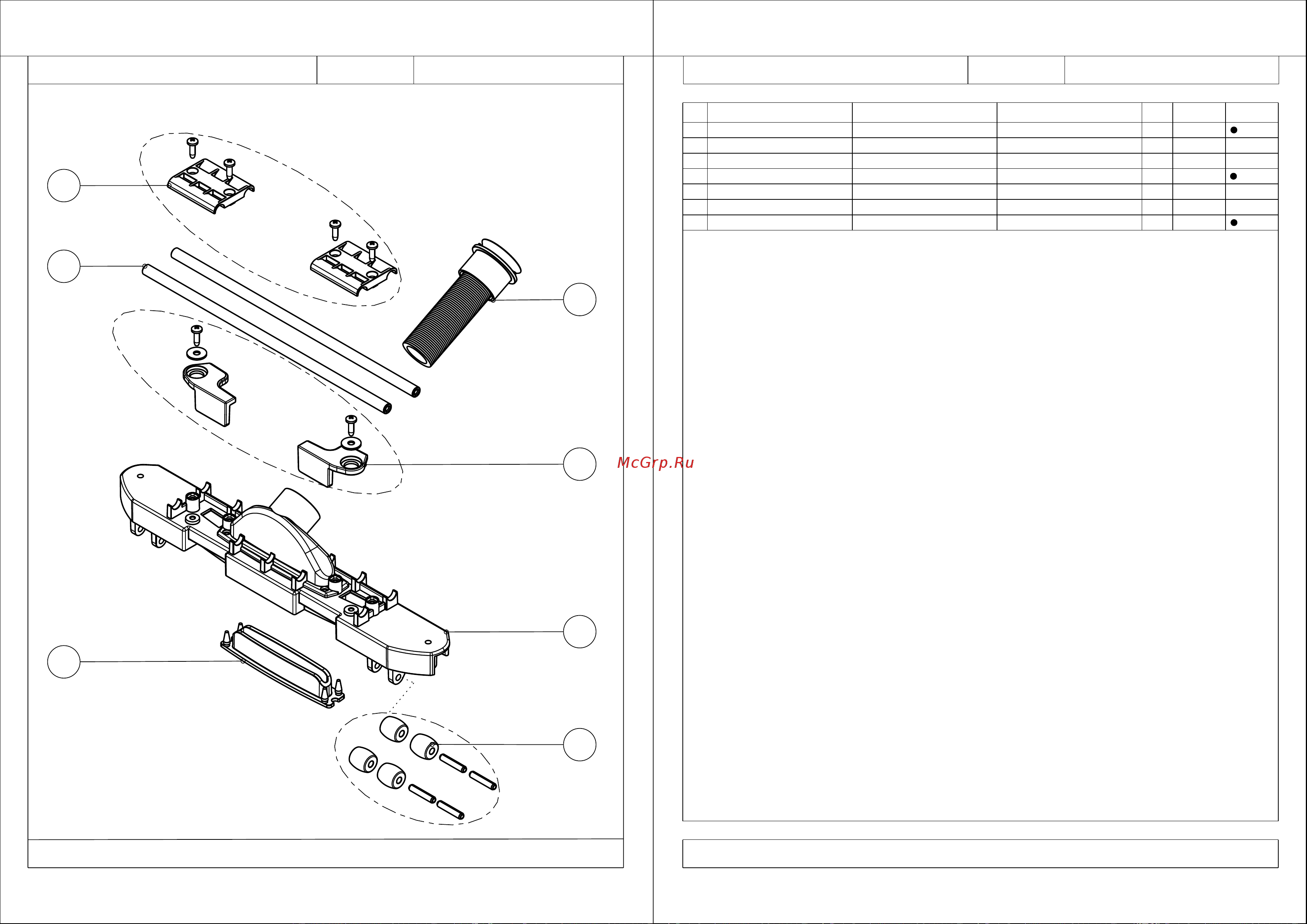

Support group squeegee 22.0518.0X Support group squeegee 22.0518.0X
Pos
DESCRIZIONE DESCRIPTION DESCRIPTION Q.tà COD. NOTE
1 Gruppo 4 ruote 4 wheel assembly Unité de 4 roues 1 96.0102.00
2 Gruppo leve bloccaggio tergitore Locking lever for squeegee Levier de verrouill. seceur 1 96.0100.0X
3 Gruppo supporto tergitore Support group squeegee Groupe de soutien seceuer 1 96.0103.00
4 Guarnizione tergitore Squeegee seal Joint raclette 1 39.0160.00
5 Guida supporto tergitore Rolly 2 50.0064.00
6 Supporto tergitore Squeege support Support seceuer 1 24.0348.00
7 Tubo aspirazione estensibile Exstendable vacuum hose Tuyau d'aspiration extensible 1 96.0099.00
TAV. N° Rolly7½ - 11
TAV. N° Rolly7½ - 11
X= 0: giallo-yellow-jaune
1: blu-blue-bleu
1
3
4
5
2
6
7
