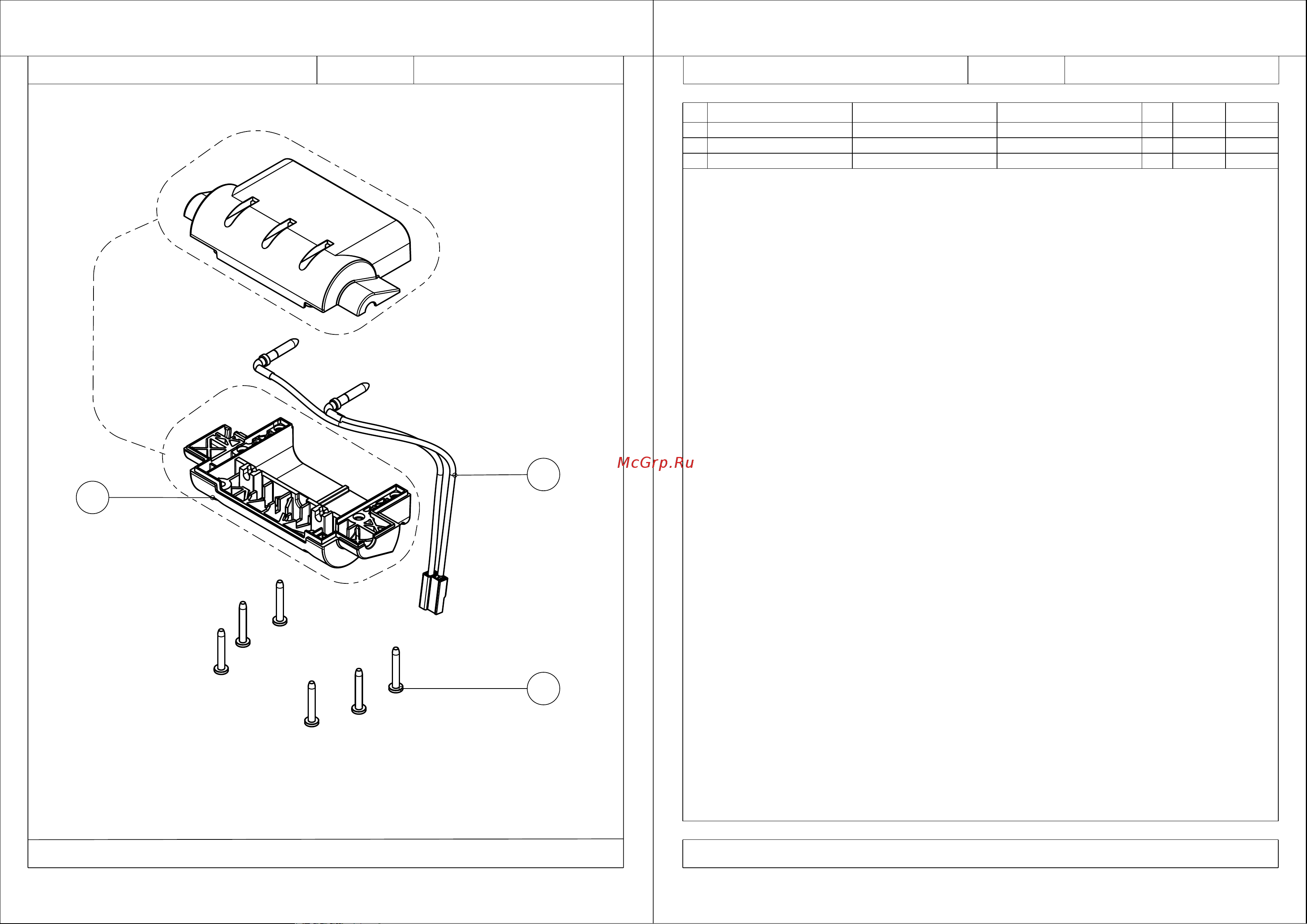

Battery support assembly 22.0515.00 Battery support assembly 22.0515.00
Pos
DESCRIZIONE DESCRIPTION DESCRIPTION Q.tà COD. NOTE
1 Cablaggio supporto batteria Battery support wiring Câblage de le soutien de la batt. 1 34.0500.00
2 Gruppo supporto batteria Battery support assembly Group de soutien de la batterie 1 22.0565.00
3 Vite TC T+ 5X32 Screw 5X32 Vis 5X32 6 2508596
TAV. N° Rolly7½ - 03
TAV. N° Rolly7½ - 03
1
2
3
