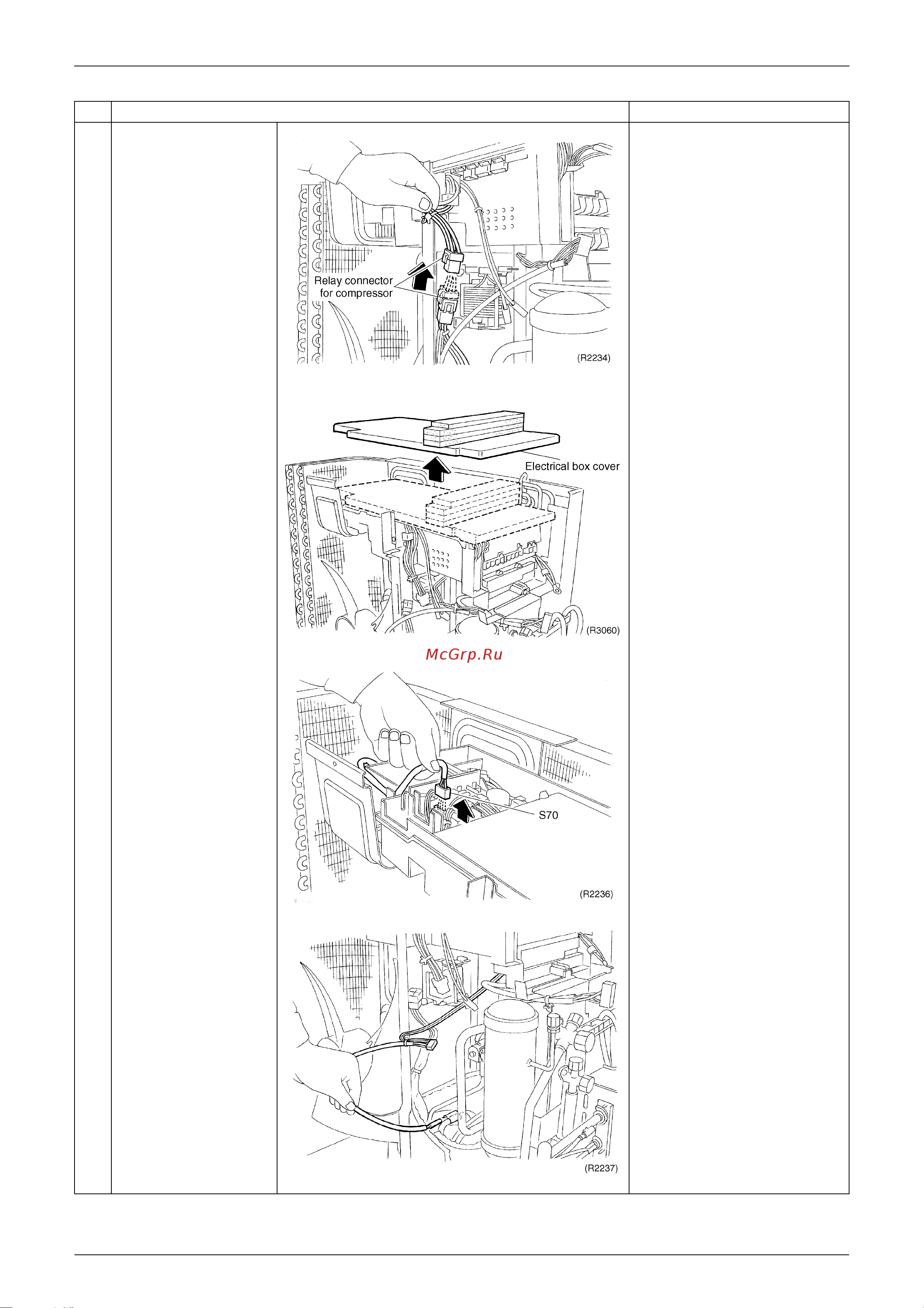

Outdoor Unit (80 / 90 Class) Si12-411A
226 Removal Procedure
8
Remove the relay
connector for
compressor.
9
Remove the electrical
box cover.
10
Disconnect the fan
motor connector.
11
Remove the discharge
pipe thermistor.
Step
Procedure Points
