Outdoor Unit (80 / 90 Class) Si12-411A
236 Removal Procedure
4

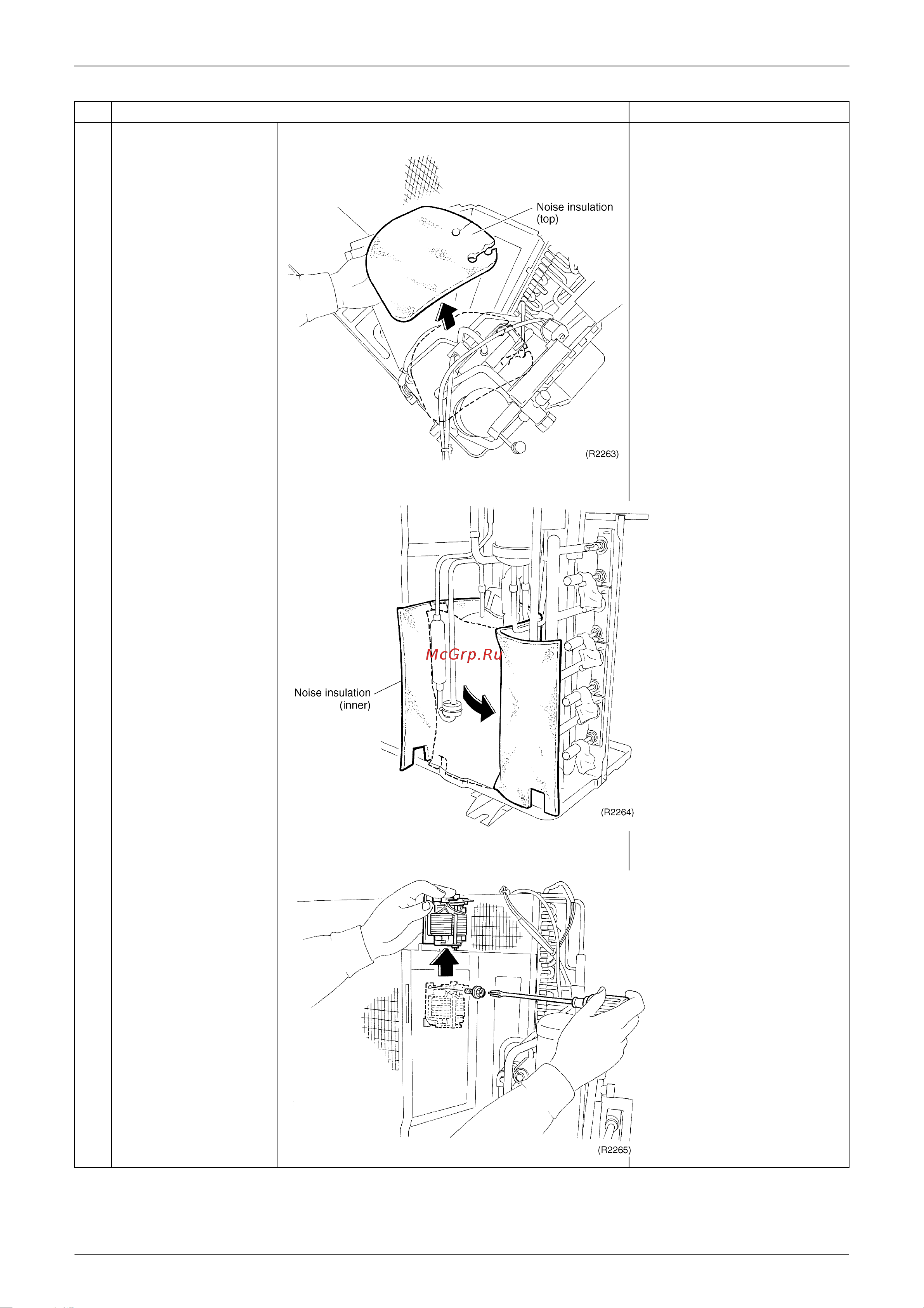

Remove the noise
insulation (top).
Carefully remove the noise
insulation, which is easily
torn in the piping section.
5
Remove the noise
insulation (inner).
6
Remove 1 screw of the
reactor.
Step
Procedure Points
