Outdoor Unit (50 / 52 / 58 / 68 / 75 Class) Si12-411A
242 Removal Procedure
2. Outdoor Unit (50 / 52 / 58 / 68 / 75 Class)

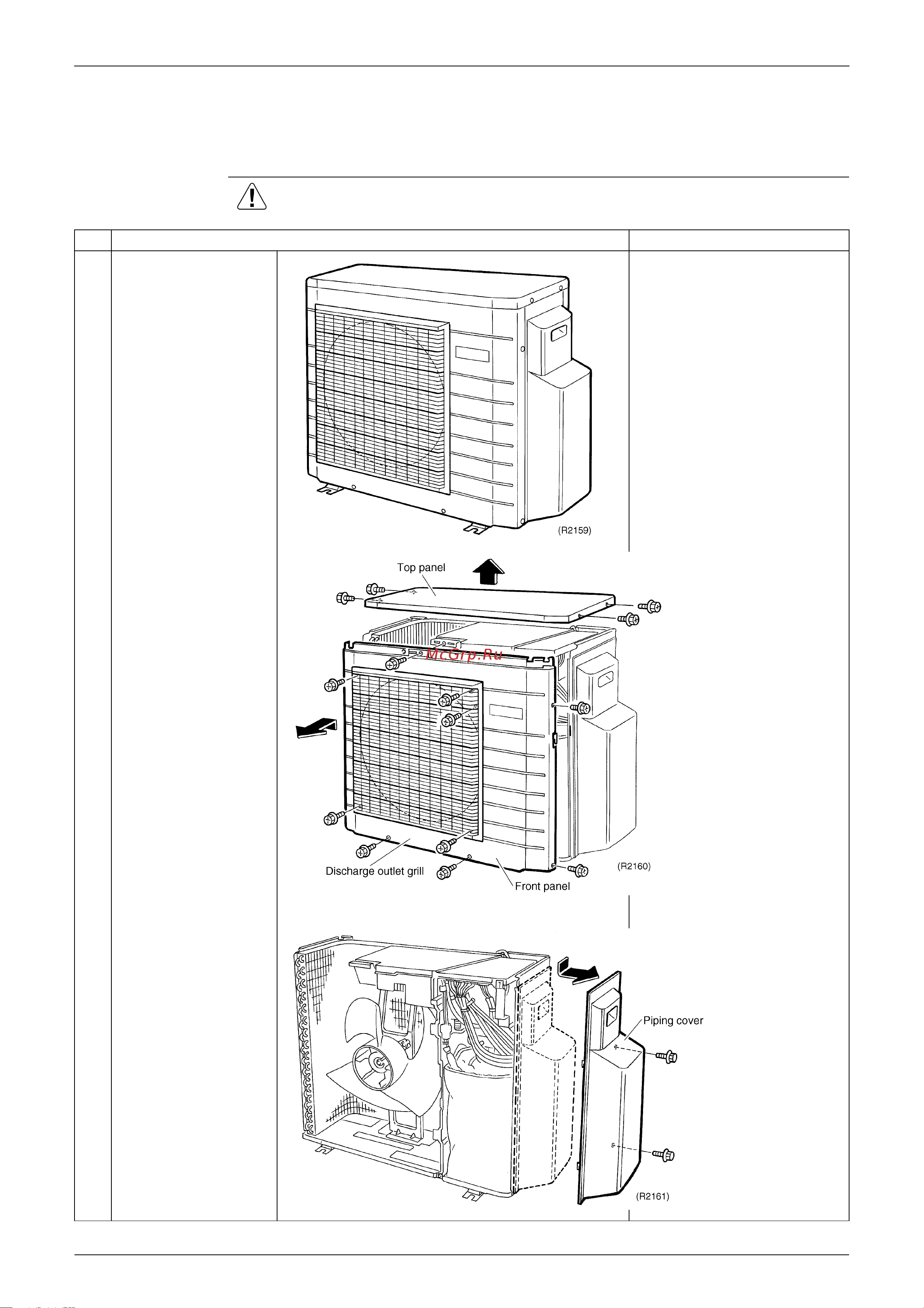

2.1 Removal of Outer Panels
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1
External appearance.
2
Remove 4 screws of
the top panel and 6
screws of the front
panel.
3
Remove 4 screws of
the discharge outlet
grill.
4
Remove 2 screws of
the piping cover.
