SiEN18-622 Instruction
System Configuration 203
Remote Control

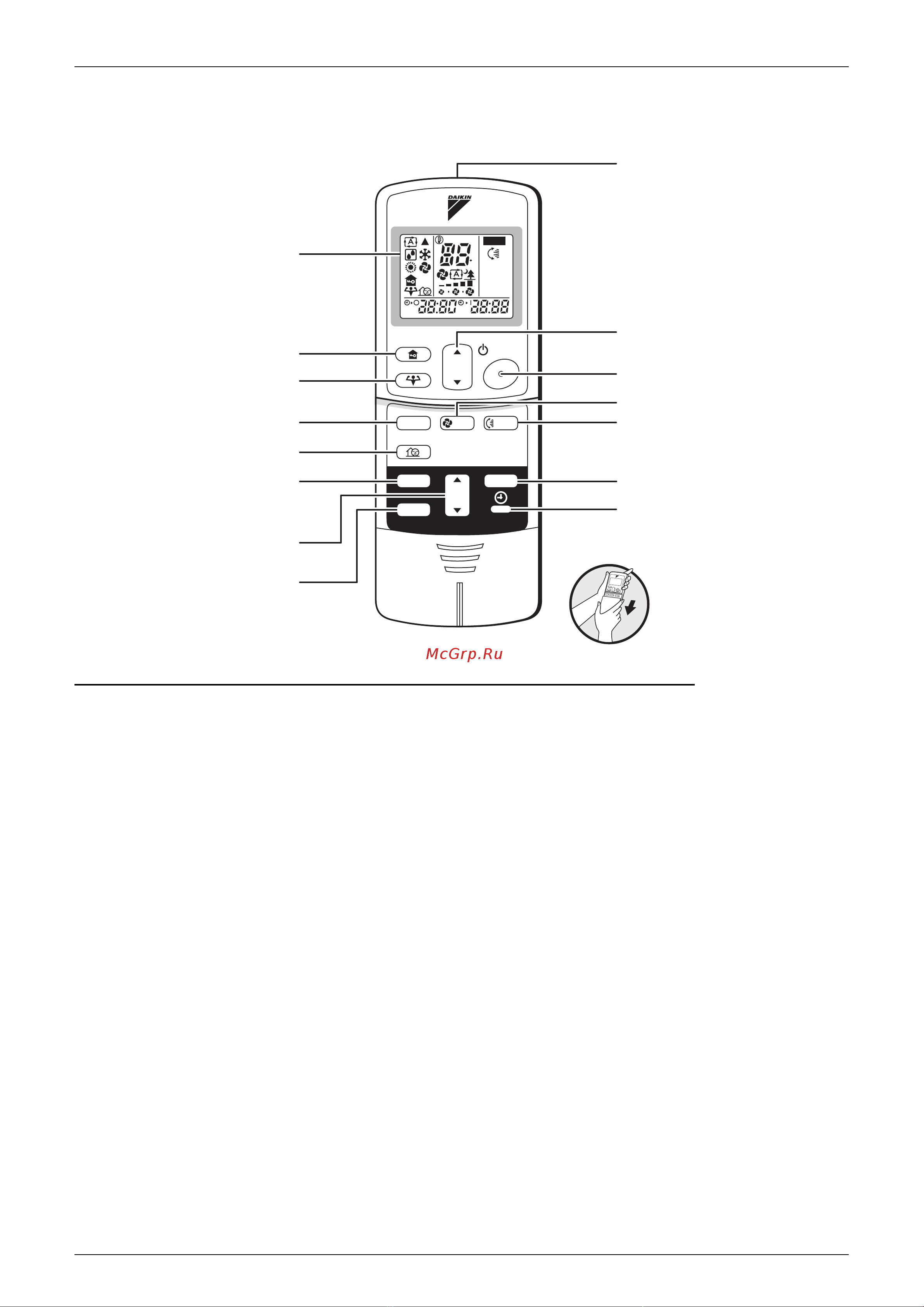

1. Signal transmitter:
• It sends signals to the indoor unit.
2. Display:
• It displays the current settings.
(In this illustration, each section is shown
with all its displays ON for the purpose of
explanation.)
3. HOME LEAVE button:
for HOME LEAVE operation
4. POWERFUL button:
for POWERFUL operation
5. TEMPERATURE adjustment buttons:
• It changes the temperature setting.
6. ON/OFF button:
• Press this button once to start operation.
Press once again to stop it.
7. MODE selector button:
• It selects the operation mode.
(AUTO/DRY/COOL/HEAT/FAN)
8. SILENT button:
for OUTDOOR UNIT SILENT
operation
9. FAN setting button:
• It selects the air flow rate setting.
10. SWING button
11. ON TIMER button
12. TIMER Setting button:
• It changes the time setting.
13. OFF TIMER button
14. TIMER CANCEL button:
• It cancels the timer setting.
15. CLOCK button.
C
ON
TEMP
ON/OFF
POWERFUL
HOME LEAVE
MODE
TIMER
FA N
SWING
SILENT
ON
CANCEL
OFF
1
2
5
6
9
10
14
15
11
12
13
<
ARC433A5
>
3
4
7
8
