Indoor Unit Si04-703A
150 Removal Procedure
9

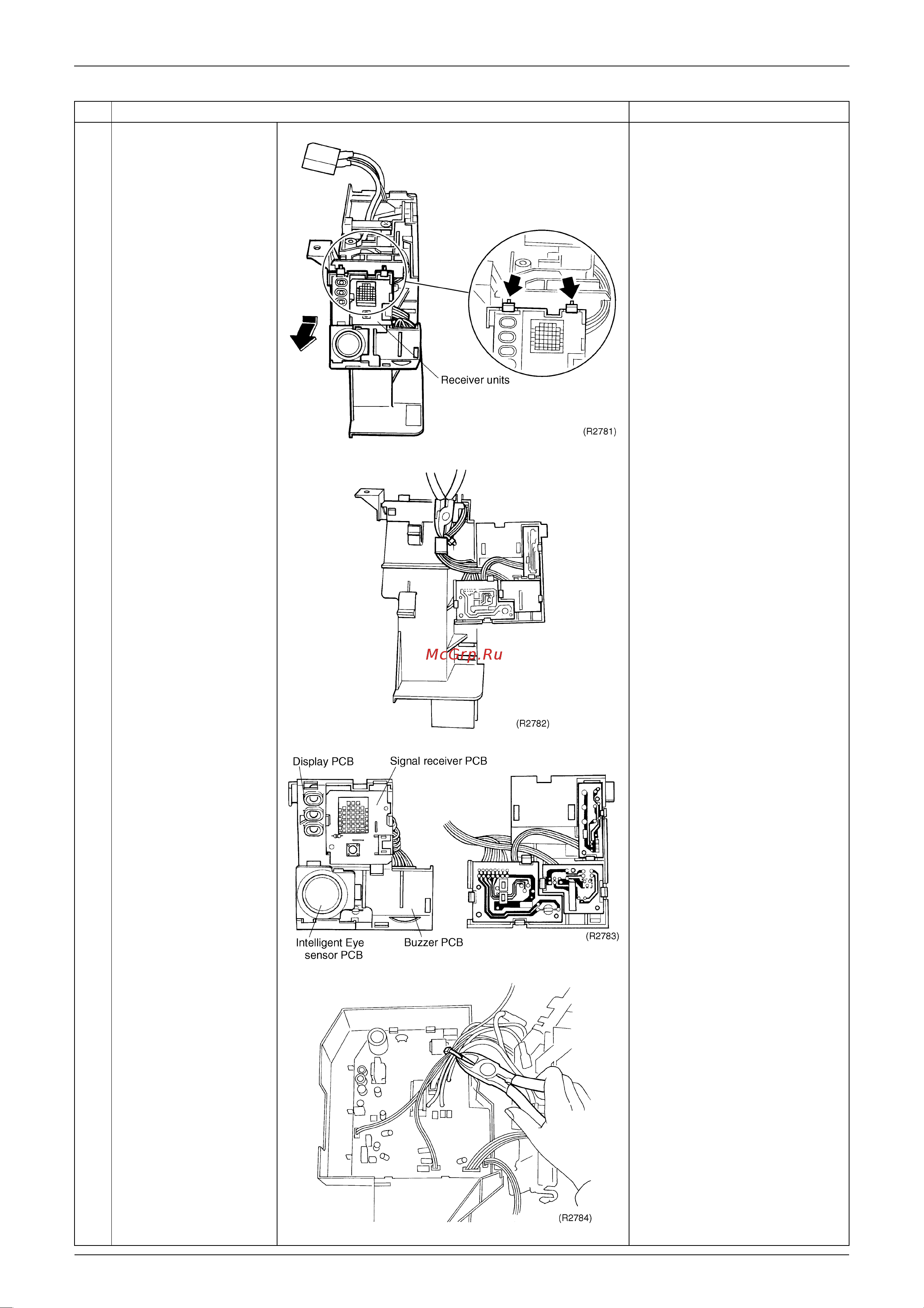

Press the receiver units
down and undo the
hooks on the upper
side, and then undo the
hooks on the lower
side.
Release the hooks on the
upper side.
10
Cut the clamp.
11
The receiver units
contain 4 PCBs.
Remove each PCB with
releasing hooks.
Disconnect every
connector from each
PCB.
Remove the receiver units
while pushing the hooks of
connectors.
12
Cut the clamp.
Clamps should be always
available.
Fix it as it was before.
Step
Procedure Points
