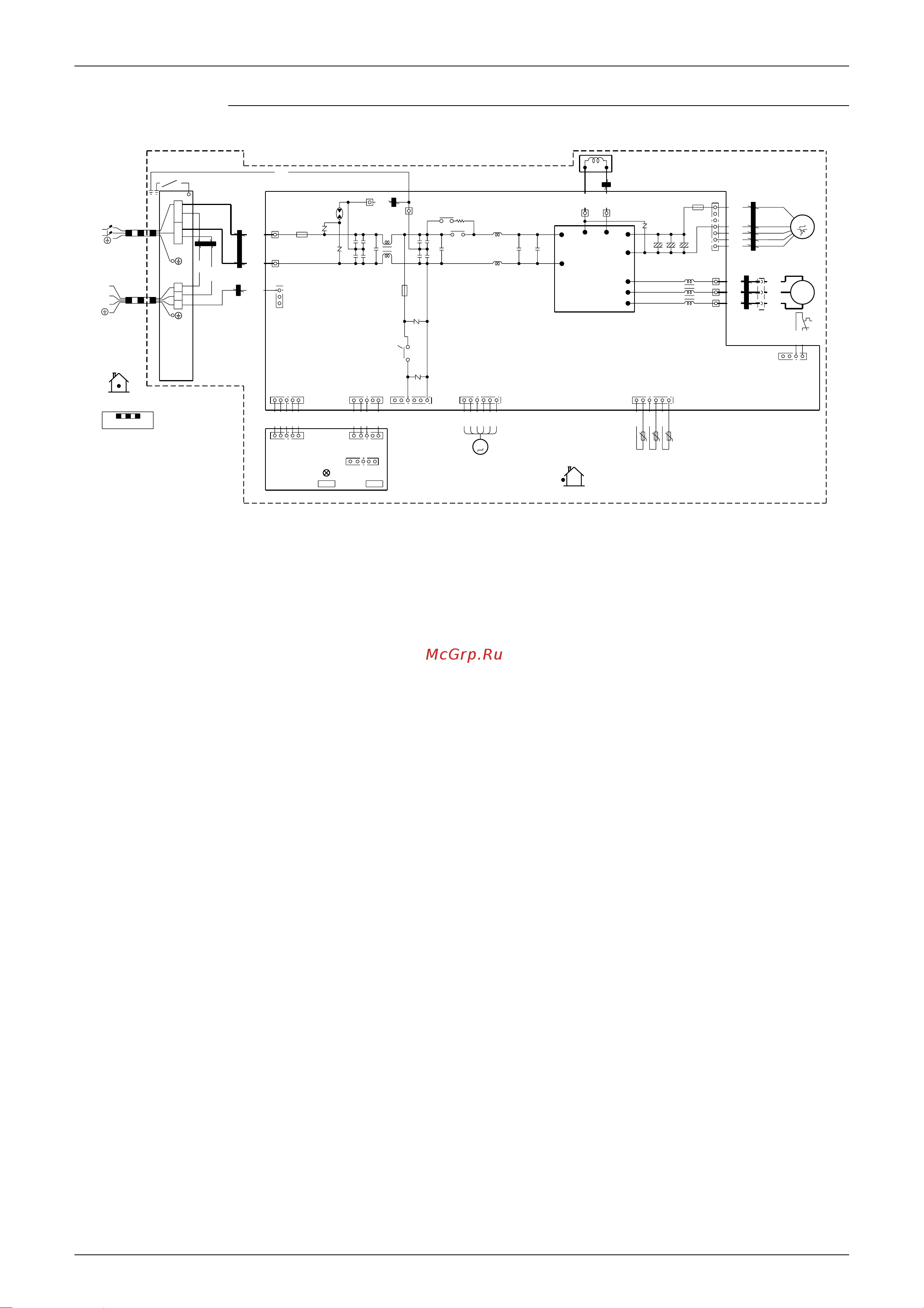

Si04-703A Wiring Diagrams
Appendix 223
RKS71FVMA
SA2
X1M
SHEET METAL
GRN
YLW
FIELD WIRING
indoor
outdoor
1
GRN
ORG
N
S10
V9
S102
V100
1
4
51
BLU
1
Z3C
BLU
5
AC1
BLU
(OUTDOOR)(DISCHARGE)
BLK
BLU
V5
S52
5
PCB1
W
S80
1
AC2
Z1C
YLW
SW1
POWER SUPPLY
X2M
U
X11A
Z4C
R1T
S70
9
(CONDENSER)
GRY
PCB2
7(N)
R2T
6
V3
RED
BLK
RED
1
MRM10
M1C
RED
RED
3~
BLK
RED
E2
PM1
S40
5
1
BLK
FU1
LED A
YLW
HR1
1
V
Z2C
WHT
2
1
S20
BLU
L1R
V
U
Z6C
V2
30A
N
3
GRN
S90
TO INDOOR UNIT
S51
WHT
BLU
WHT
W
BLK
2
M
WHT
S2
3
BLU
MRM20
M
3
BRN
E1
HR2
2
Z7C
R3T
GRN
6(P)
BLU
3.15A
W
BLU
RED
FU2
WHT
11
M1F
BRN
ORG
FU3
1
1
S101
8
7
6
4
MRC
L
BLU
L
BRN
Y1E
BLU
YLW
Z5C
SW4
Q1L
BLU
4
5
M
3.15A
6
M1C : COMPRESSOR MOTOR
M1F : FAN MOTOR
L1R : REACTOR
Q1L : OVERLOAD PROTECTOR
PM1 : POWER MODULE
PCB1,2 : PRINTED CIRCUIT BOARD
SHEET METAL
: TERMINAL STRIP FIXED PLATE
Z1C~Z7C
: FERRITE CORE
X1M,X2M
: TERMINAL STRIP
Y1E
: ELECTRONIC EXPANSION VALVE COIL
V2,V3,V5,V9,V100
: VARISTOR
SA2
: SURGE ARRESTER
FU1,FU2,FU3 : FUSE
AC1,AC2
U,V,W,X11A,X12A
E1,E2
HR1,HR2 : CONNECTOR
MRM10,MRM20
MRC/W : MAGNETIC RELAY
R1T~R3T : THERMISTOR
S2~S102 : CONNECTOR
LEDA : PILOT LAMP
L : LIVE
N : NEUTRAL
SW1
: FORCED OPERATION ON/OFF SW (SW1)
SW4 : LOCAL SETTING SW (SW4)
+++
t°t° t°
3D053930B
