Control Specification Si04-703A
52 Function and Control

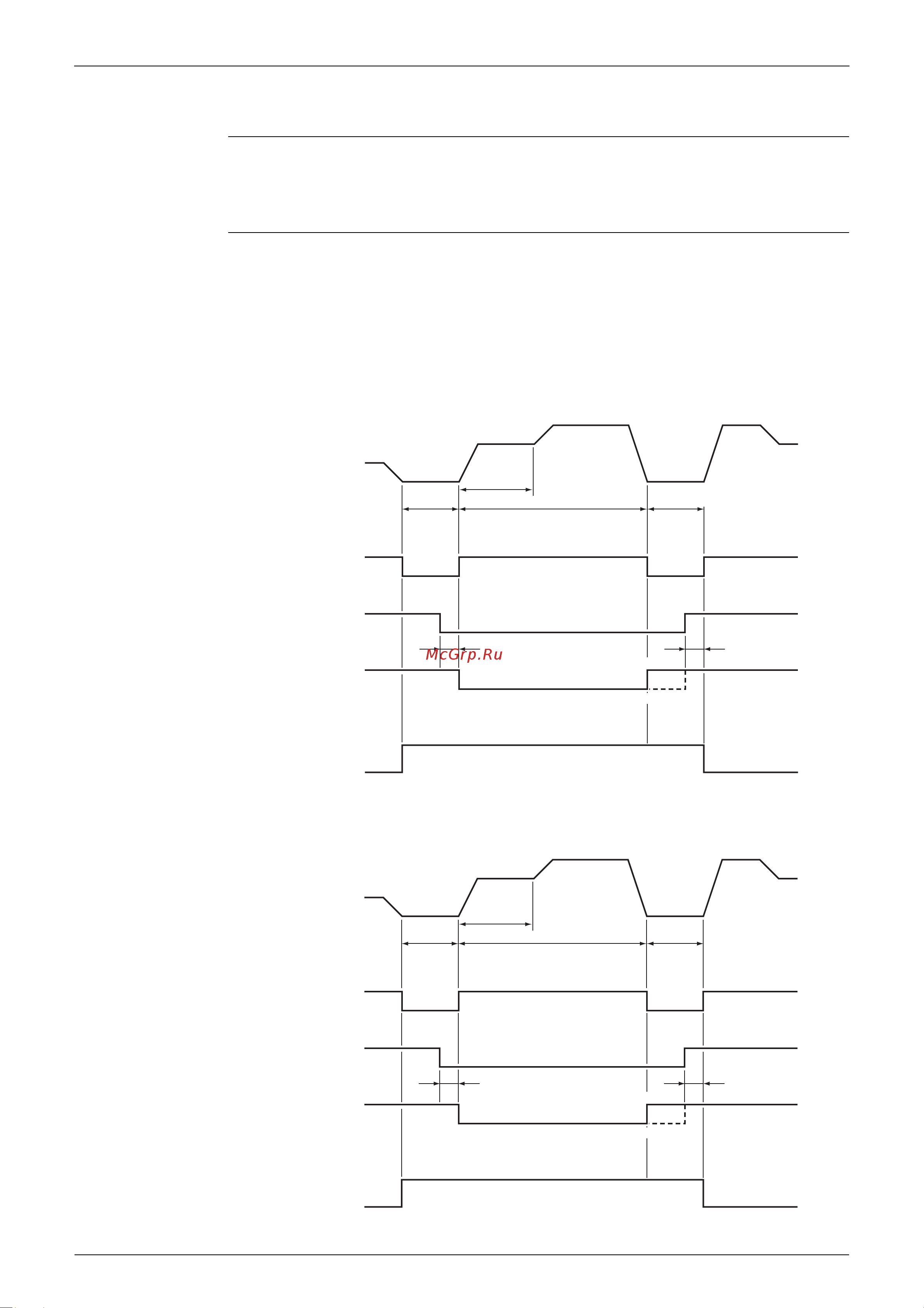

3.10 Defrost Control
Outline Heat Pump Only
Defrosting is carried out by the cooling cycle (reverse cycle). The defrosting time or outdoor
heat exchanger temperature must be more than its fixed value when finishing.
Detail Conditions for Starting Defrost
The starting conditions must be made with the outdoor air temperature and heat exchanger
temperature. Under the conditions that the system is in heating operation, 6 minutes after the
compressor is started and more than 44 minutes of accumulated time pass since the start of the
operation or ending the defrosting.
Conditions for Canceling Defrost
The judgment must be made with heat exchanger temperature. (4°C~12°C)
50/60 class, 71FVM(T)
71-90FVMA
Frequency
Compressor
Four way valve
Fan
Electronic expansion
valve opening
ON
OFF
ON
OFF
ON
OFF
0Hz
55Hz
2YC36 : 90Hz
2YC63 : 74Hz
5sec.
450pls
Initial opening
PI control
5sec.
60sec. 460 sec. (Max. limit)
120sec.
(R7065)
Outdoor temp. ≥ 0˚C
Outdoor temp. < 0˚C
30sec. (50 class)
50sec. (60/71 class)
Frequency
Compressor
Four way valve
Fan
Electronic expansion
valve opening
ON
OFF
ON
OFF
ON
OFF
0Hz
39Hz
62Hz
5sec.
450pls
Initial opening
PI control
5sec.
60sec.
60sec. 650 sec. (Max. limit)
120sec.
(R7111)
Outdoor temp. ≥ 0˚C
Outdoor temp. < 0˚C
