SiBE04-302 Indoor Unit
Removal Procedure 139
5

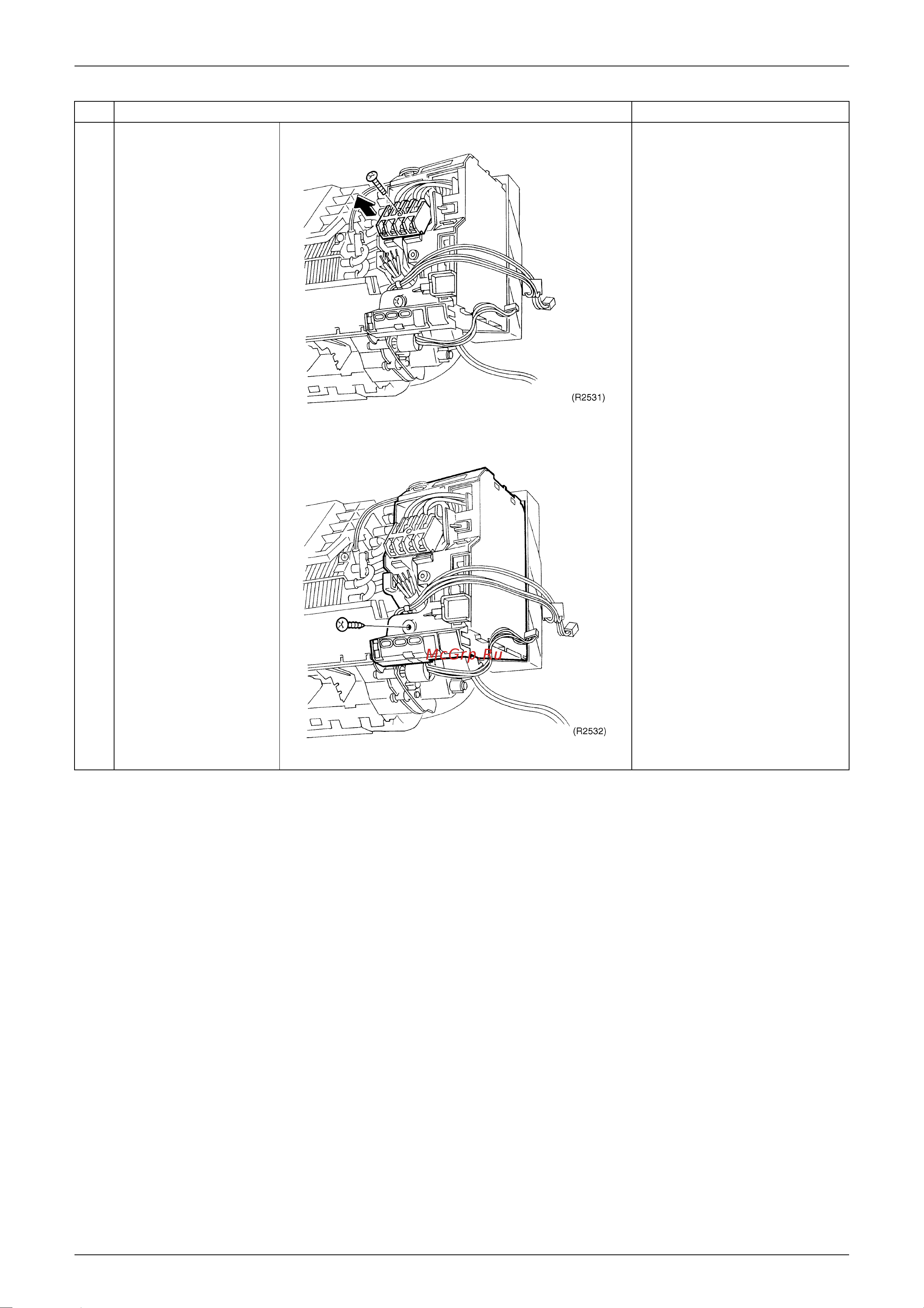

Remove a screw on the
terminal strip.
The switch box can be
removed instead of
disengaging the terminal
strip.
6
Remove a screw on the
switch box.
Step Procedure Points
