Outdoor Unit SiBE04-302

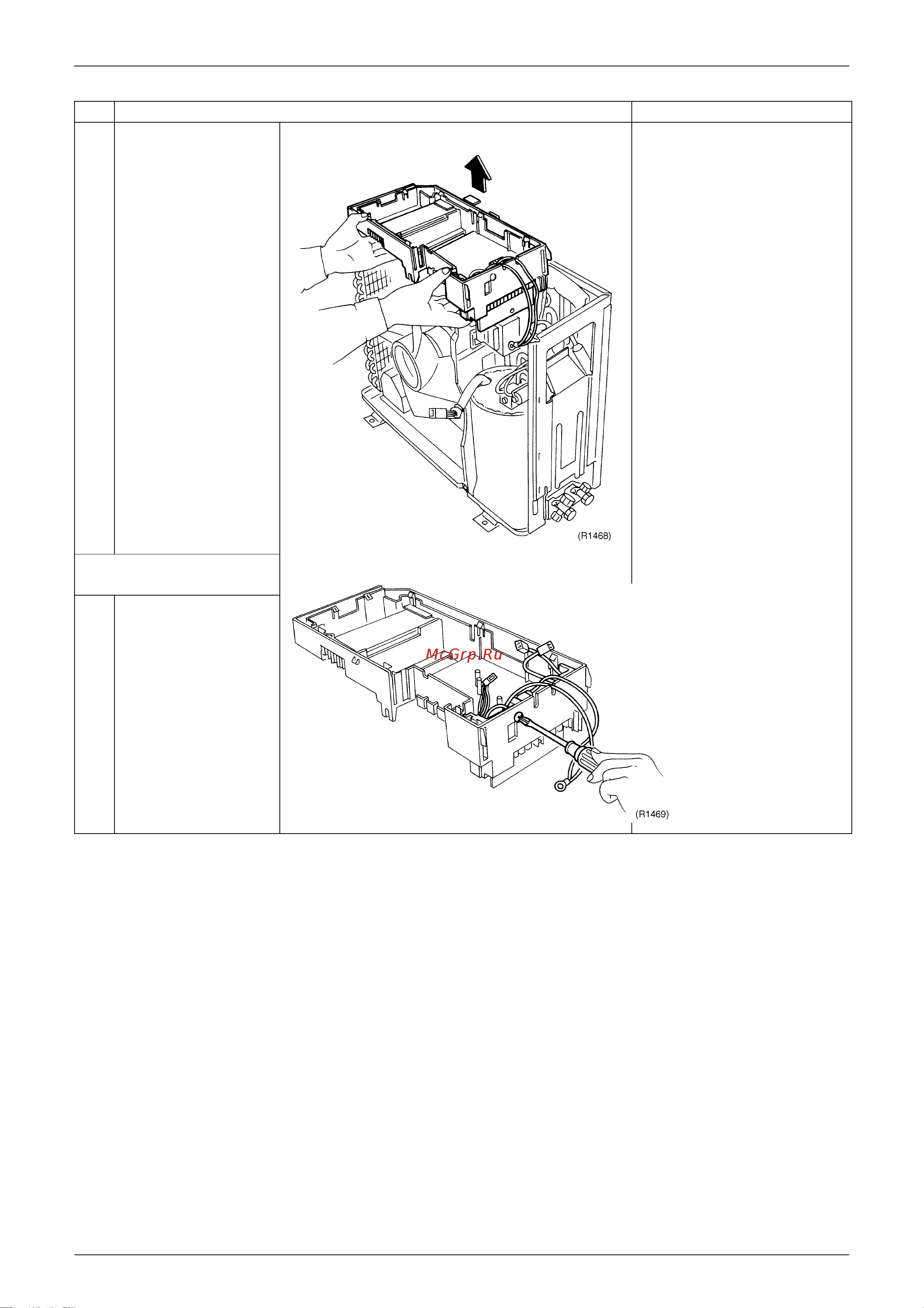

160 Removal Procedure
2
Lift and remove the
electrical box.
4. Remove the molded
interconnect device (MID).
1
Remove the one screw
fixing the MID.
Step Procedure Points
