SiBE04-302 Outdoor Unit
Removal Procedure 157
2

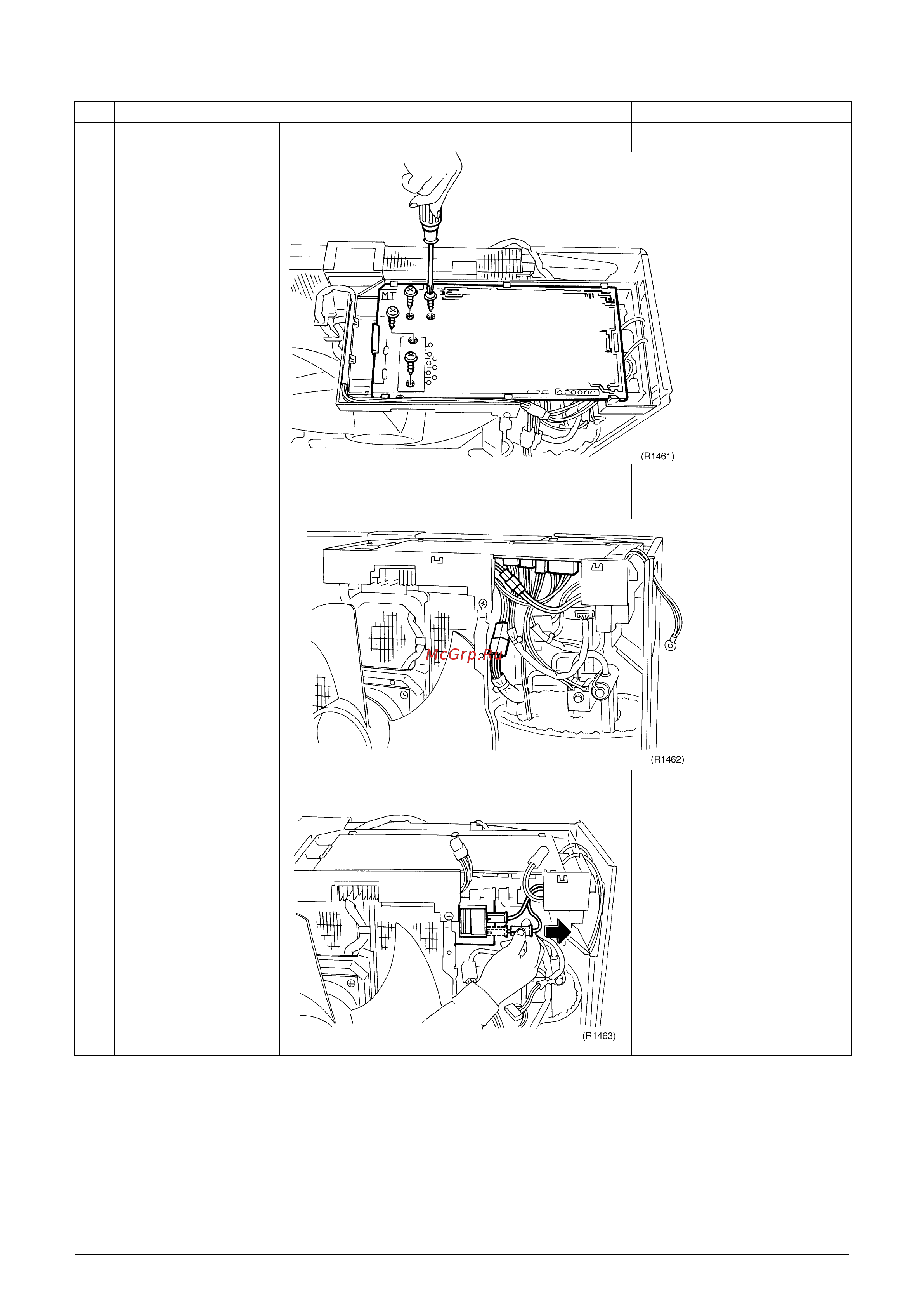

Remove the four
screws fixing the PCB.
3
Disconnect the wire
harness.
4
Disconnect the two
connectors of the
reactor.
Step Procedure Points
