ED18-730 Outdoor Units
Installation Manual 157
4
Setting (cooling/heating selection) in set mode 1 (H1P: Turn off)
Setting in set mode 2 (H1P: Turn on)

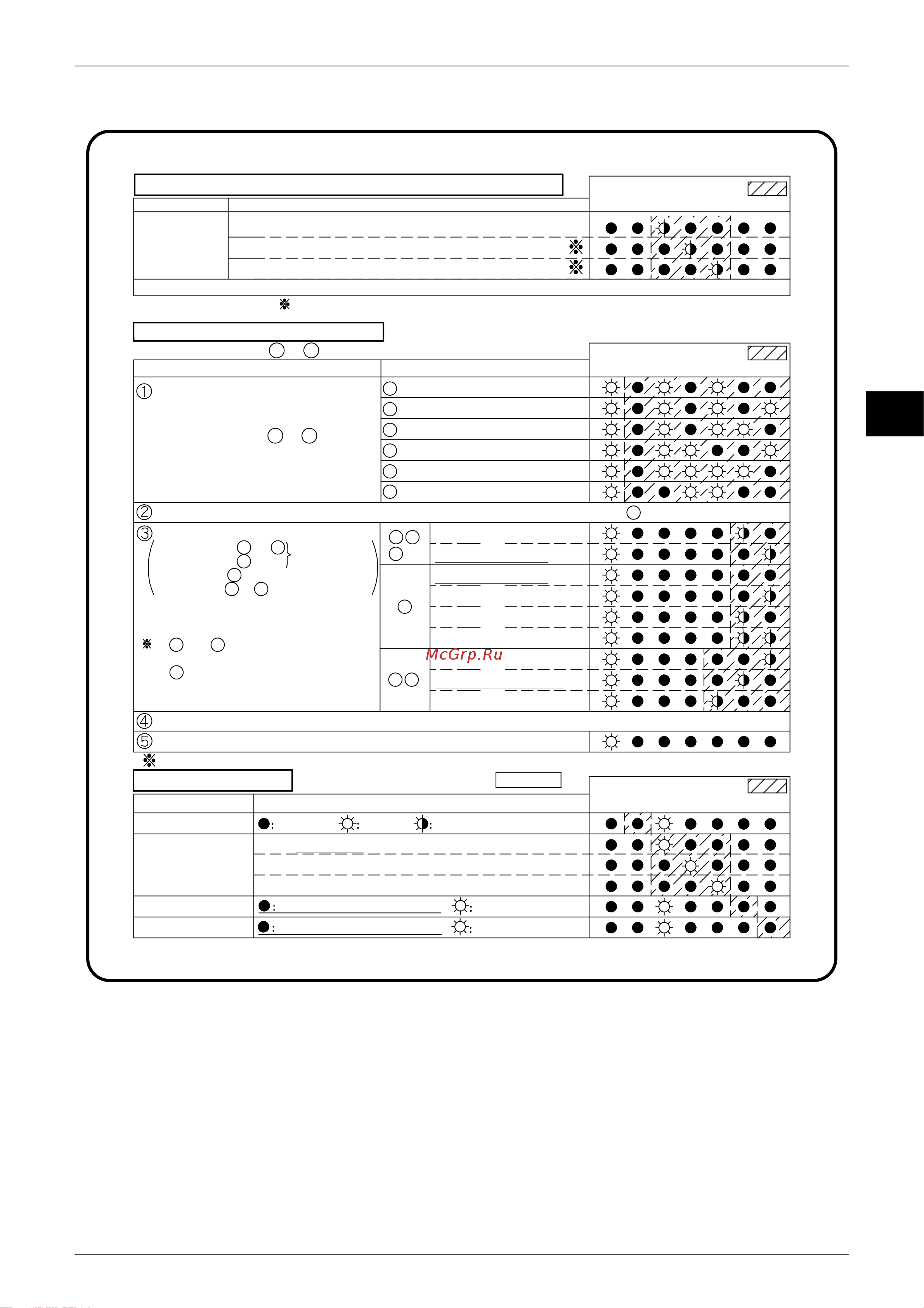

Checking the set items
Setting procedure
Setting procedure Contents of setting
For the contents marked with “ ”, the outdoor unit external control adaptor (optional accessory) is required. For the detai ls, refer to the
manual attached to the adaptor.
For any setting other than the above cases, refer to the Service Manual.
The following contents can be set in set mode 1 .
The following contents A to G can be set.
Contents of cooling/heating selection
Press the SET
button (BS2), and
select either LED
indicator status
shown at right.
Press the SET button (BS2), and
select either LED indicator status
shown at right in accordance with the
contents of setting ( A to G ).
Contents of each setting
In the case of A or B
… ON/OFF
In the case of F
In the case of C … OFF/mode 1 to mode 3
In the case of D or F … Mode 1 to mode 3
Press the SET button (BS2) , and select
either LED indicator status shown at
right in accordance with the above case.
In C and D , noise is smallest in mode
3, and largest in mode 1.
In E , the power consumption is smallest
in mode 3, and largest in mode 1.
(For the details, refer to the Service Manual.)
Press the RETURN button (BS3) to display the currently selected setting. (Refer to 3 .)
Press the RETURN button (BS3) to determine the setting. (The LED indicator status changes from “flicker” to “turn on”.)
Press the RETURN button (BS3) again to start the operation in accordance with the setting.
Press the RETURN button (BS3) to determine the setting.
When cooling or heating is selected individually in each outdoor unit
system (at factory set)
When cooling or heating is selected for all outdoor unit systems (master unit)
When cooling or heating is selected for all outdoor unit systems (slave unit)
A Refrigerant additional charging operation
B
Refrigerant recovery/evacuation mode
C
Automatic low noise setting at night
D
External low noise level setting
E
Demand level setting
F
External low noise demand absence/presence setting
ON
OFF (at factory set)
OFF (at factory set)
Mode 1
Mode 2
Mode 3
Mode 1
Mode 2 (at factory set)
Mode 3
Check item
Current operation status
Cooling/heating
selection
Low noise operation status
Demand operation status
LED indicator status example
Normal status Error status
During preparation or check operation
When cooling or heating is selected individually in each outdoor unit
system (at factory set)
When cooling or heating is selected for all outdoor unit systems (master unit)
When cooling or heating is selected for all outdoor unit systems (slave unit)
During normal operation (at factory set) During low noise operation
During normal operation (at factory set) During demand operation
LED indicator status and position
H1P H2P H3P H4P H5P H6P H7P
LED indicator status and position
H1P H2P H3P H4P H5P H6P H7P
LED indicator status and position
H1P H2P H3P H4P H5P H6P H7P
A B
F
C
D E
