INSTALLATION AND CONFIGURATION

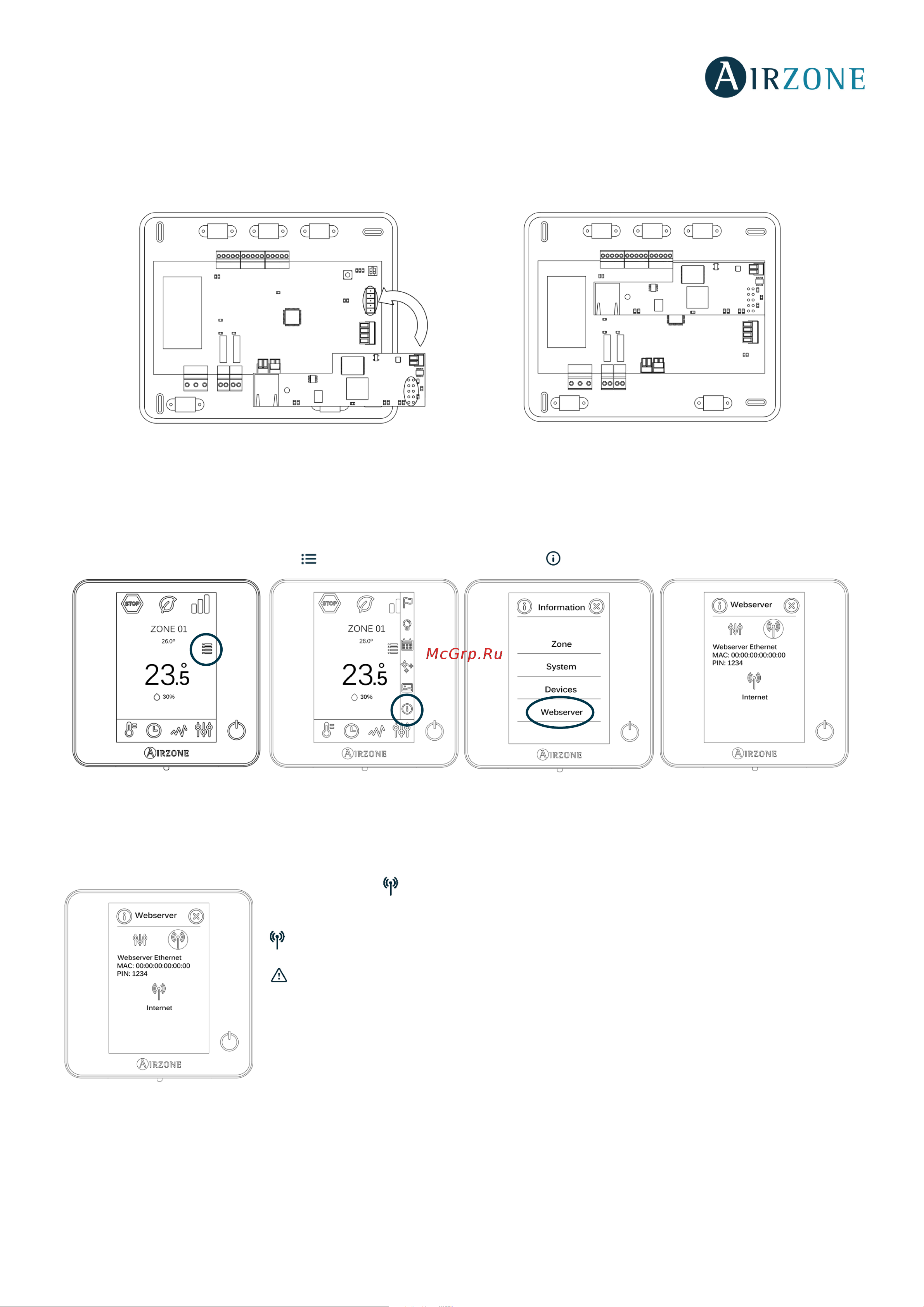

INSTALLATION ON THE CONTROL BOARD

The Airzone BACnet Interface connects to the Airzone Main Control Board using the automation bus.

The Ethernet cable should be connected to the Airzone BACnet Interface gently. Once the control board has the interface

connected, it will auto-detect the presence of the BACnet Interface and automatically set the parameters to enable the BACnet

operation.

BACNET INTERFACE CONFIGURATION

From the main screen, press the icon , select the Information parameter and press on the Webserver menu.

Keep in mind: For proper operation, Airzone systems must be powered up before the indoor unit.

Status Menu

The status menu , gives information about the MAC and PIN of the device, as well as the

connection status:

The internet connection is correct.

There is no internet connection, check the connection between the BACnet interface and

the router and the status of the router.
