- Verify that the IP address set for the PC is correct.

- Verify the Ethernet cable connection:

• Verify if connecting via the hub: straight cable.

• Verify communication with the Interface for use in BACnet® by testing the operation from the PC directly: Use a

crossover cable.

- Verify that the PC's LAN communication port is active.

- If using the hub, verify that the hub is powered on.

- Do a PING to the Airzone BACnet Interface from the PC to verify the Ethernet Link (See below).

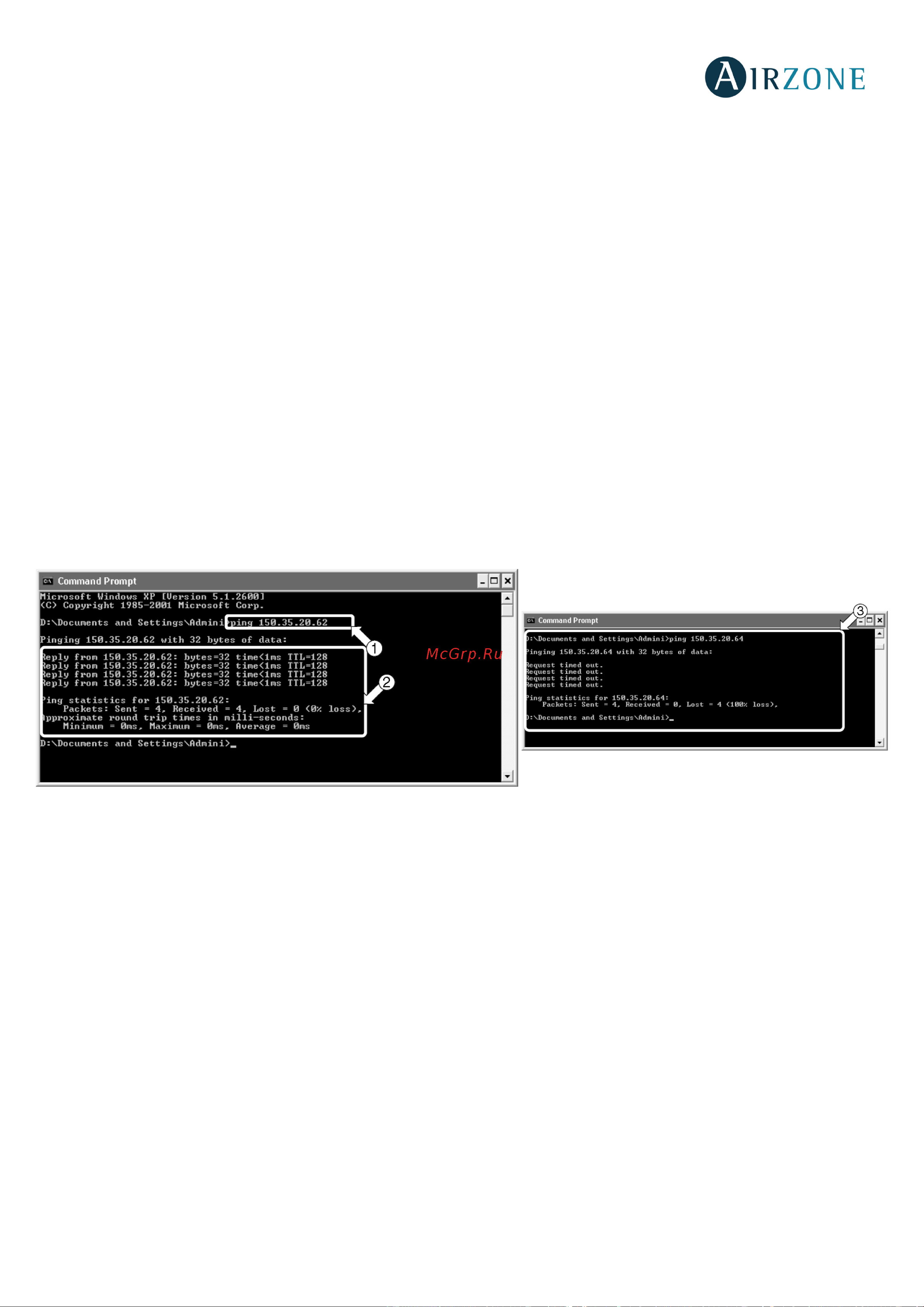

[Cómo ejecutar un PING a la pasarela BACnet].

1. From the PC's desktop, select "Start", "Program", "Accessories", and "Command Prompt". The dialog box shown

below opens.

2. Use the PC's key board; enter the BACnet gateway IP address in [1]. Ex. When Interface for use in BACnet®'s IP

address is "150.35.20.62", enter "ping 150.35.20.62" and press the Return key.

2. If you can see information as shown in [2], the LAN connection is established. Start the test operation program and try

connection again.

If you see information as shown in [3], the LAN connection is not established for some reason. Check the PC's settings, etc.

again.

HOW TO SET THE PC’S IP ADDRESS

1. Take a note of the test operation PC's current IP address. (Be sure to take a note of the current IP address because this

address needs to be restored after the test operation)

1.1. Start the test operation PC. (The screens shown below are Windows XP's examples, and the actual

screens differ depending on the OS used).

1.2. On Windows XP, double-click the Network Connections icon on the Control Panel. Click the Local Area

Connection and right-click to choose "Properties". The dialog box 1 below opens.

1.3. For newer OS, click start and enter “ncpa.cpl” on the search bar to see the network connections window.

Right click over “local area connection” and select “properties”.

1.4. Select "Internet Protocol (TCP / IP)" [1] and click the Properties button [2]. The dialog box 2 opens. This

dialog box shows the test operation PC's current IP address [3], subnet mask [4], and default gateway

address [5]. Take a note of this information in Table 1.
