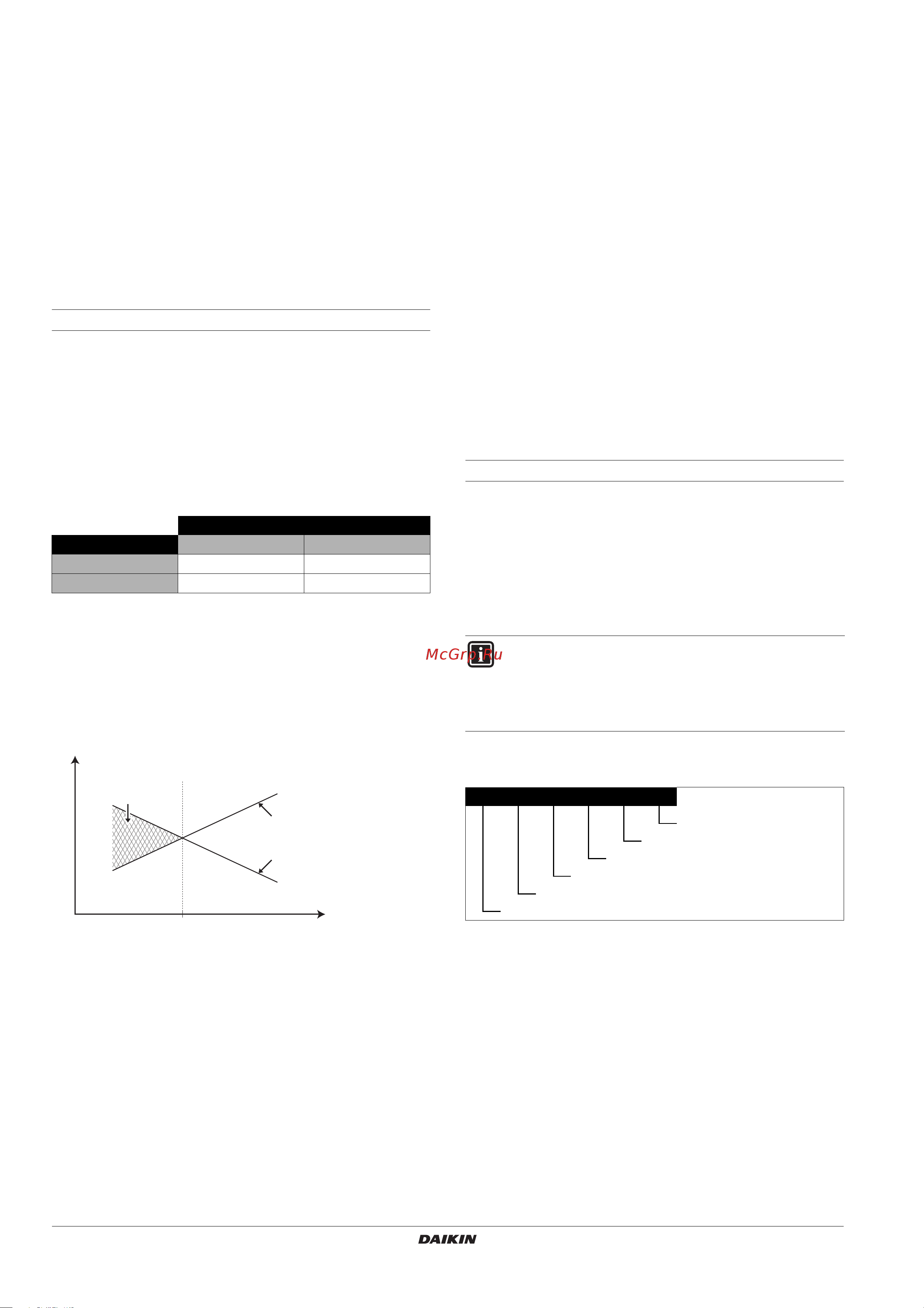

Installation manual
4
EBHQ006+008BBV3
Unit for air to water heat pump system
4P347825-1A – 2013.04
3. INTRODUCTION
3.1. General information
This installation manual concerns the outdoor EBHQ006BBV3 and
EBHQ008BBV3 of the Monoblock units of the GBS Altherma series.
The Monoblock units exist out of an outdoor installed unit (EBHQ
(this manual)) and an indoor installed (wall mounted) unit (EKCB).
These units are used for both heating and cooling applications. The
units can be combined with Daikin fan coil units, floor heating
applications, low temperature radiators, domestic hot water tank
(option) and solar kit (option).
A user interface is standard supplied with the unit to control your
installation.
Heating/cooling units and heating only units
The monoblock unit range consists of two main versions: a
heating/cooling version (uses EKCBX indoor unit) and a heating only
version (uses EKCBH indoor unit), both available in 2 capacity sizes:
6 kW (EBHQ006) or 8 kW (EBHQ008).
The indoor unit and outdoor unit must be connected with the
obligatory optional datacable.
3.2. Combination and options
Possible combinations
Both versions (heating only and heating/cooling) are optionally
delivered with a backup heater kit (EKMBUH) for additional heating
capacity during cold outdoor temperatures. The backup heater also
serves as a backup in case of malfunctioning of the unit and for
freeze protection of the outside water piping during winter time. The
backup heater factory set capacity is 6 kW, however, depending on
the installation, the installer can limit the backup heater capacity to
3 kW. The backup heater capacity decision is a mode based on the
equilibrium temperature, see scheme below.
■ Datacable (obligatory option)
The EKCOMCAB1 thermistor interconnection cable must be
connected to allow communication between the indoor unit and
the outdoor unit.
■ Domestic hot water tank (option)
An optional EKHW* domestic hot water tank with integrated
3 kW electrical booster heater can be connected to the indoor
unit. The domestic hot water tank is available in three sizes: 150,
200 and 300 litre. Refer to the domestic hot water tank
installation manual for further details.
■ Solar kit for domestic hot water tank (option)
For information concerning the EKSOLHW solar kit, refer to the
installation manual of that kit.
■ Digital I/O PCB kit (option)
An optional EKRP1HB digital I/O PCB can be connected to the
indoor unit and allows:
■ remote alarm output
■ heating/cooling ON/OFF output
■ bivalent operation (permission signal for the auxiliary boiler)
Refer to the operation manual and to the installation manual of
the digital I/O PCB for more information.
Refer to the wiring diagram or connection diagram for
connecting this PCB to the unit.
■ Bottom plate heater EKBPHT08BA (option)
■ Remote thermostat kit (option)
An optional room thermostat EKRTWA, EKRTR or EKRTETS
can be connected to the indoor unit. Refer to the installation
manual of the room thermostat for more information.
To obtain more information concerning these option kits, please
refer to dedicated installation manuals of the kits.
Connection to a benefit kWh rate power supply
Refer to the EKCB installation manual.
3.3. Scope of the manual
This manual describes the procedures for handling, installing and
connecting the EBHQ units. This manual has been prepared to
ensure adequate maintenance of the unit, and it will provide help if
problems occur.
3.4. Model identification
s Indoor units
Outdoor units
EKCBX008BCV3 EKCBH008BCV3
EBHQ006BBV3 Possible Possible
EBHQ008BBV3 Possible Possible
1 Heat pump capacity
2 Required heating capacity (site dependent)
3 Additional heating capacity provided by the backup heater
4 Equilibrium temperature (can be set through the user interface.
refer to the chapter "Equilibrium temperature and space
heating priority temperature" in the EKCB installation manual.
T
A
Ambient (outdoor) temperature
P
H
Heating capacity
T
A
4
3
1
2
P
H
INFORMATION
Refer to the installation manual of the indoor unit for items
not described in this manual.
The operation of the outdoor unit is described in the
outdoor unit operation manual.
EB H Q 008 BB V3
Voltage: 1P, 230 V
Series
Indication of heating/cooling capacity (kW)
(a)
(a) For exact values, refer to "Technical specifications" on page 18.
Refrigerant R410A
Low water temperature, ambient zone 3
Monoblock oudoor heat pump
