![Nissan Note [41/52] Board on lift](/views2/1789816/page41/bg29.png)
LIFTING POINT
GI-41
C
D
E
F
G
H
I
J
K
L
M
B
GI

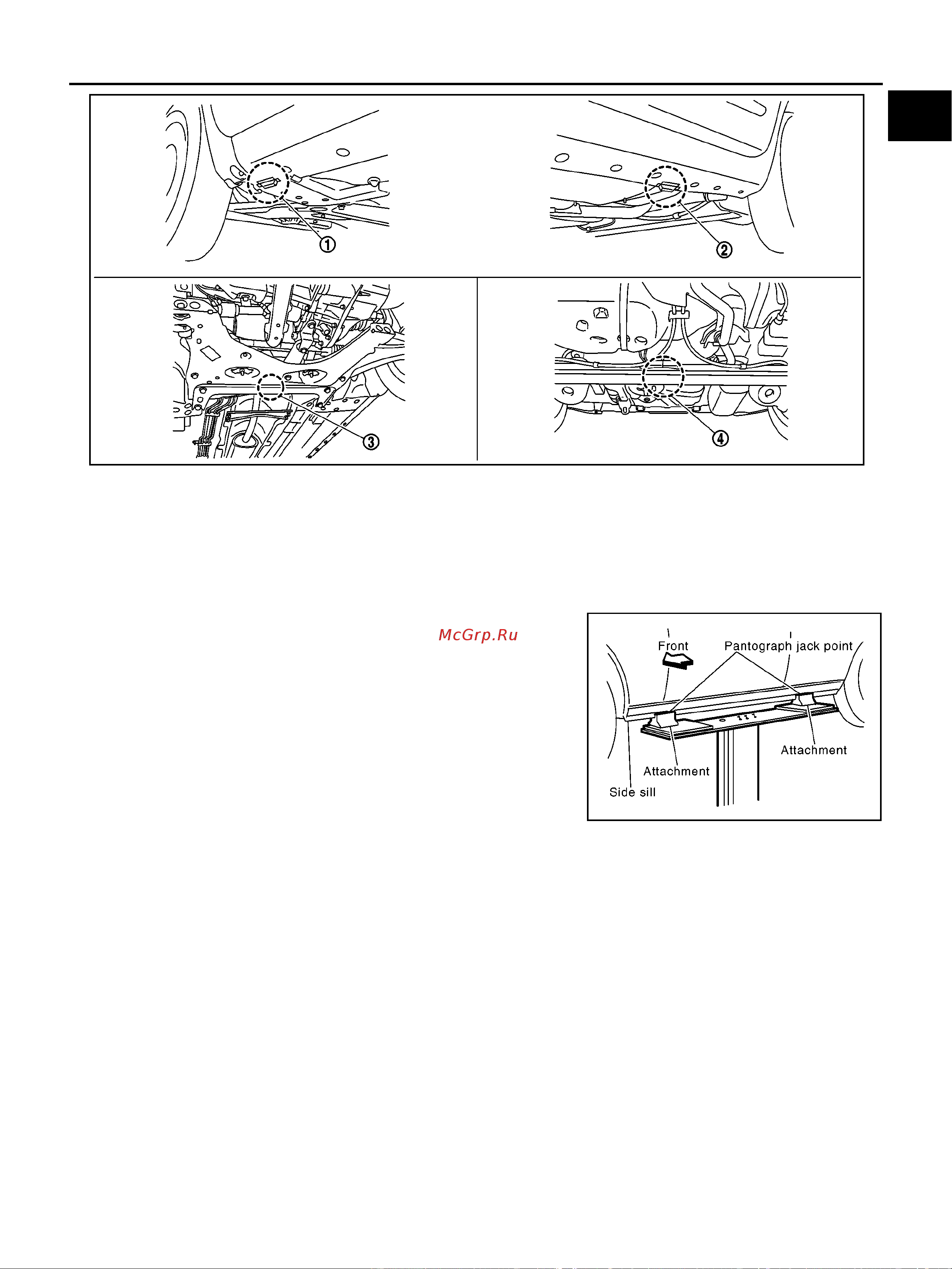

Board-On Lift
BAS00038
CAUTION:
Make sure vehicle is empty when lifting.
● The board-on lift attachment set at front end of vehicle
should be set on the front of the sill under the front door
opening.
● Position attachments at front and rear ends of board-on lift.
1. Safety stand point and lift up point
(front)
2. Safety stand point and lift up point
(rear)
3. Garage jack point (front)
4. Garage jack point (rear)
MAIB0076E
MAIB0030E
