PRECAUTIONS
GI-7
C
D
E
F
G
H
I
J
K
L
M
B
GI
Precautions for Hoses
BAS0002M

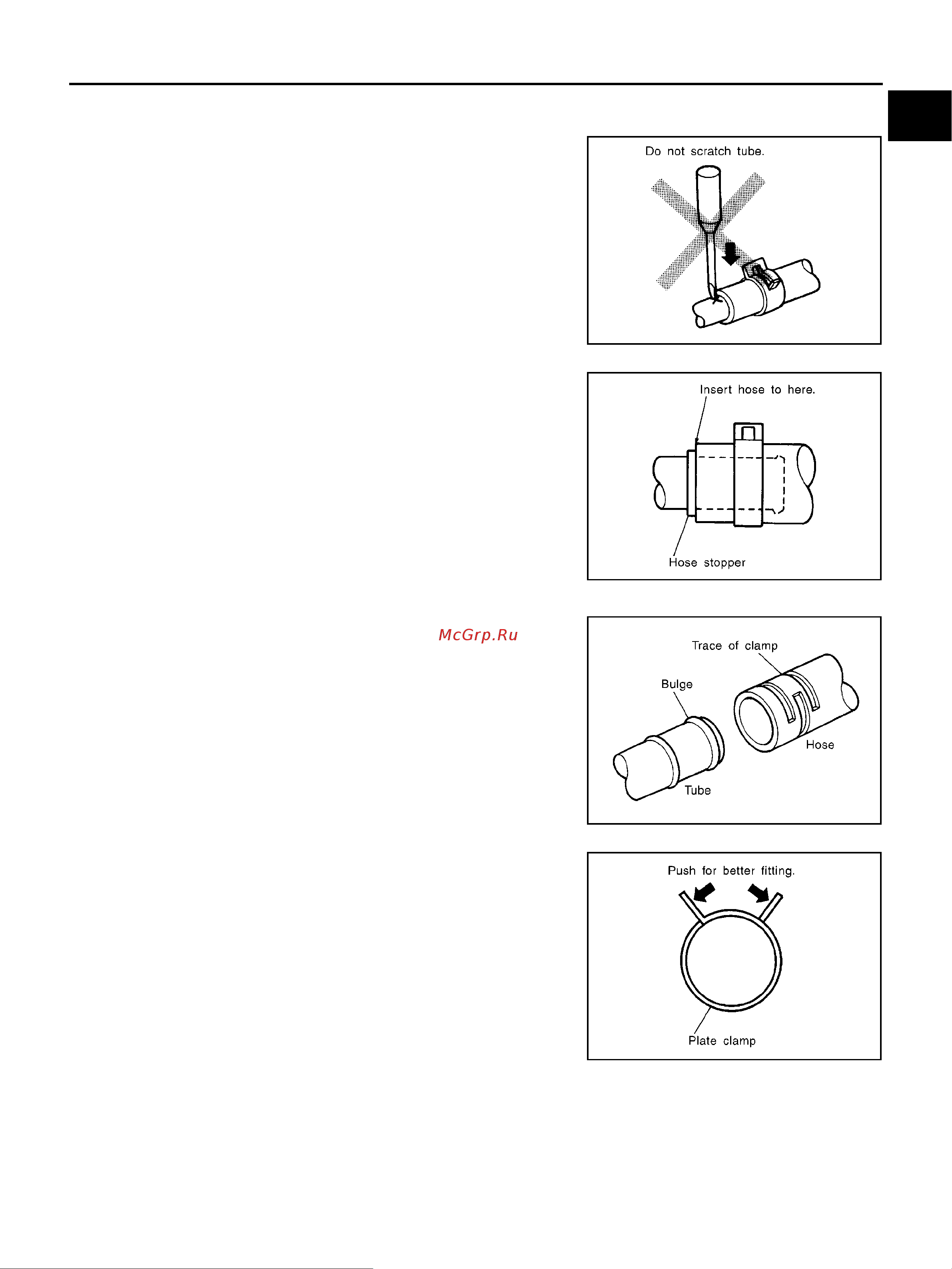

HOSE REMOVAL AND INSTALLATION
● To prevent damage to rubber hose, do not pry off rubber hose
with tapered tool or screwdriver.
● To reinstall the rubber hose securely, make sure that hose inser-
tion length and orientation is correct. (If tube is equipped with
hose stopper, insert rubber hose into tube until it butts up
against hose stopper.)
HOSE CLAMPING
● If old rubber hose is re-used, install hose clamp in its original
position (at the indentation where the old clamp was). If there is
a trace of tube bulging left on the old rubber hose, align rubber
hose at that position.
● Discard old clamps; replace with new ones.
● After installing plate clamps, apply force to them in the direction
of the arrow, tightening rubber hose equally all around.
Precautions for Engine Oils
BAS0002N
Prolonged and repeated contact with used engine oil may cause skin cancer. Try to avoid direct skin contact
with used oil.
If skin contact is made, wash thoroughly with soap or hand cleaner as soon as possible.
HEALTH PROTECTION PRECAUTIONS
● Avoid prolonged and repeated contact with oils, particularly used engine oils.
SMA019D
SMA020D
SMA021D
SMA022D
