GI-42
TOW TRUCK TOWING
TOW TRUCK TOWING
PFP:00000
Tow Truck Towing
BAS00039
CAUTION:
● All applicable local laws regarding the towing operation must be obeyed.
● It is necessary to use proper towing equipment to avoid possible damage to the vehicle during
towing operation. Towing is in accordance with Towing Procedure Manual at dealer.
● Always attach safety chains before towing.
● When towing, make sure that the transmission, steering system and power train are in good order.
If any unit is damaged, dollies must be used.

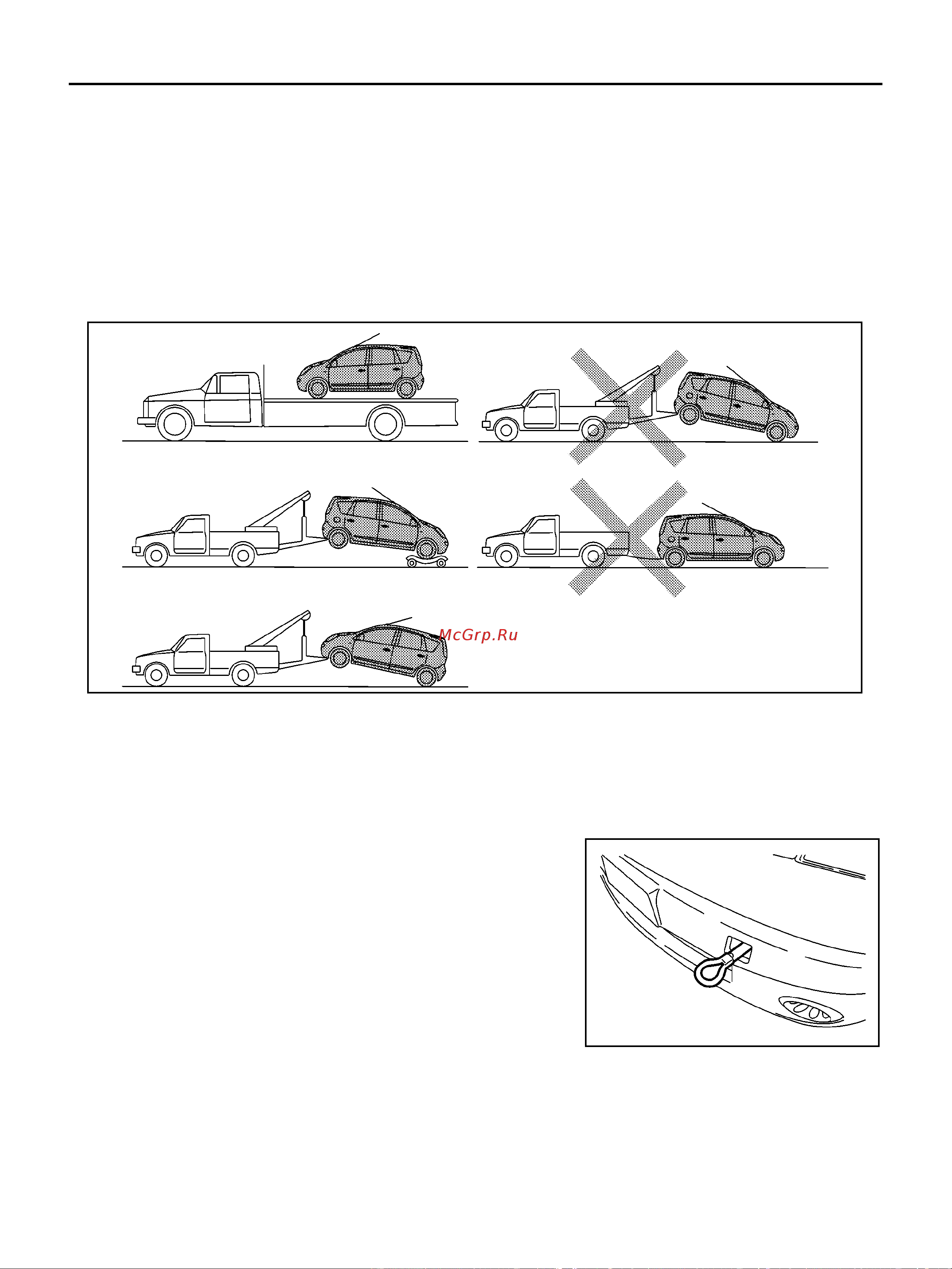

NISSAN recommends that the vehicle is towed with the driving (front) wheels off the ground as illustrated.
TOWING AN AUTOMATIC TRANSAXLE MODEL WITH FOUR WHEELS ON GROUND
CAUTION:
Never tow an automatic transaxle model with four wheels on the ground as this may cause serious
and expensive damage to the transaxle.
Vehicle Recovery (Freeing a Stuck Vehicle)
BAS0003A
FRONT
● Use the towing hook only, not other parts of the vehicle. Other-
wise, the vehicle body will be damaged.
● Use the towing hook only to free a vehicle stuck in sand, snow,
mud, etc. Never tow the vehicle for a long distance using only
the towing hook.
● The towing hook is under tremendous force when used to free a
stuck vehicle. Always pull the cable straight out from the front or
rear of the vehicle. Never pull on the hook at an angle.
● Stand clear of a stuck vehicle.
WARNING:
● Do not spin the tyres at high speed. This could cause them
to explode and result in serious injury. Parts of the vehicle could also overheat and be damaged.
● Install removable towing hook securely using wheel nut wrench.
MAIB0077E
MAIB0078E
