6 Technical data
Installation manual
15
RZAG71~140L7V1B
Split system air conditioners
4P418662-1 – 2016.02

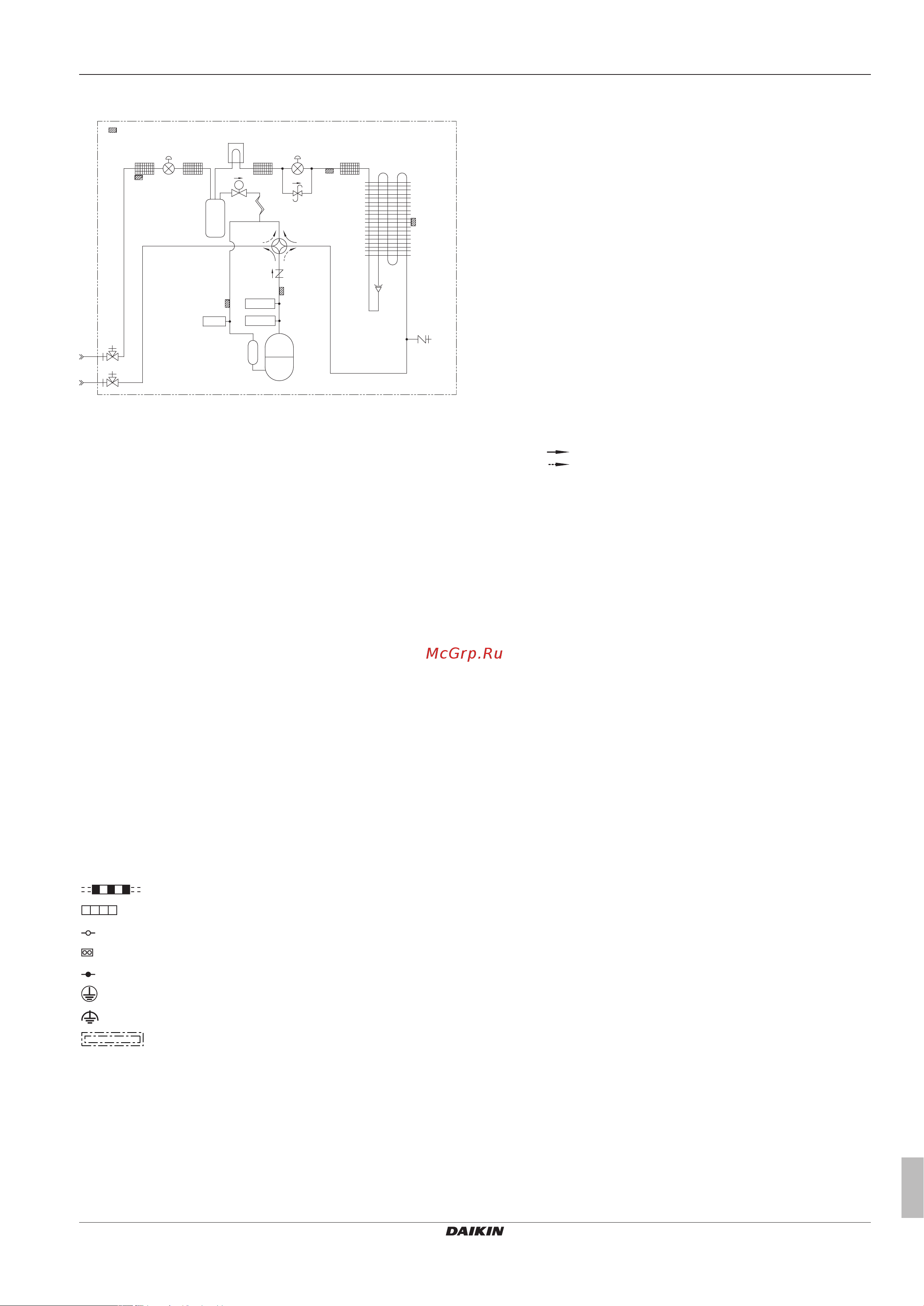

6.2 Piping diagram: Outdoor unit
S1PL
S1PH-M
S1PH-A
a
c
d d d
e
d
c
b
R2T
R6T
R1T
R4T
i
j
k
l
h
g
Y1E
Y1S
Y2S
M1C
R5T
R3T
f
Y3E
a Field piping (liquid: Ø9.5 flare connection)
b Field piping (gas: Ø15.9 flare connection)
c Stop valve (with service port 5/16")
d Filter (4×)
e Switch box cooling
f Pressure regulating valve
g Heat exchanger
h Internal service port 5/16"
i Check valve
j Compressor accumulator
k Liquid receiver
l Capillary tube
M1C Motor (compressor)
R1T Thermistor (air)
R2T Thermistor (discharge)
R3T Thermistor (suction)
R4T Thermistor (heat exchanger inlet)
R5T Thermistor (heat exchanger middle)
R6T Thermistor (liquid)
S1PH-A Automatic high pressure switch
S1PH-M Manual high pressure switch
S1PL Low pressure switch
Y1E Electronic expansion valve
Y3E Electronic expansion valve
Y1S Solenoid valve (4‑way valve)
Y2S Solenoid valve
Heating
Cooling
6.3 Wiring diagram: Outdoor unit
The wiring diagram is delivered with the unit, located at the inside of
the service cover.
Notes:
1 Symbols (see below).
2 Colours (see below).
3 This wiring diagram applies only to the outdoor unit.
4 Refer to the wiring diagram sticker (on the back of the service
cover) for how to use the BS1~BS4 and DS1 switches.
5 When operating, do not short-circuit protective devices S1PH
and S1PL.
6 Refer to the service manual for instructions on how to set the
selector switches (DS1). The factory setting of all switches is
OFF.
7 Refer to the combination table and the option manual for how
to connect the wiring to X6A, X28A and X77A.
Symbols:
L Live
N Neutral
Field wiring
Terminal strip
Terminal
Connector
Connection
Protective earth
Noiseless earth
Option
Colours:
BLK Black
BLU Blue
BRN Brown
GRN Green
PPL Purple
RED Red
WHT White
YLW Yellow
Legend for wiring diagram RZAG71:
A1P Printed circuit board (main)
A2P Printed circuit board
BS1~BS4 Push button switch
C1~C3 Capacitor
DS1 DIP switch
E1H Bottom plate heater (option)
F1U, F2U Fuse
F6U Fuse (T 3.15A / 250V)
F7U, F8U Fuse (F 1.0A / 250V)
H1P~H7P Light‑emitting diode (service monitor is orange)
HAP Light-emitting diode (service monitor is green)
K1R Magnetic relay (Y1S)
K2R Magnetic relay (Y2S)
K2R, K10R Magnetic relay
K11M Magnetic contactor
K13R~K15R Magnetic relay
L1R Reactor
M1C Motor (compressor)
M1F Motor (fan)
PS Switching power supply
Q1DI Earth leakage circuit breaker (30mA)
R2, R5, R6 Resistor
R1T Thermistor (air)
R2T Thermistor (discharge)
R3T Thermistor (suction)
R4T Thermistor (heat exchanger inlet)
R5T Thermistor (heat exchanger middle)
R6T Thermistor (liquid)
R7T, R8T Thermistor (Positive Temperature Coefficient)
