4 Installation
Installation manual
6
RZAG71~140L7V1B
Split system air conditioners
4P418662-1 – 2016.02
CAUTION
Appliance not accessible to the general public, install it in a
secured area, protected from easy access.
This unit, both indoor and outdoor, is suitable for
installation in a commercial and light industrial
environment.
The outdoor unit is designed for outdoor installation only, and for
ambient temperatures ranging:
Model Cooling Heating
RZAG –15~50°CDB –20~15.5°CWB
3.1.2 About the minimum floor area
WARNING
If appliances contain R32 refrigerant, then the floor area of
the room in which the appliances are installed, operated
and stored must be larger than the minimum floor area.
This applies to:
▪ Indoor units
▪ Outdoor units installed or stored indoors (example:
winter garden, garage, machinery room)
▪ Field piping in unventilated spaces
To determine the minimum floor area
1 Determine the total refrigerant charge in the system (=factory
refrigerant charge + additional refrigerant amount charged).
2 Determine which graph or table to use.
▪ For indoor units: Is the unit ceiling-mounted, wall-mounted or
floor-standing?
▪ For outdoor units installed or stored indoors, and field piping
in unventilated spaces, this depends on the installation
height:
If the installation height
is…
Then use the graph or
table for…
<1.8m Floor-standing units
≥1.8m Wall-mounted units
3 Use the graph or table to determine the minimum floor area.
See figure 4 on the inside of the rear cover.
m Total refrigerant charge in the system
A
min
Minimum floor area
(a) Ceiling-mounted unit (=Ceiling-mounted unit)
(b) Wall-mounted unit (=Wall-mounted unit)
(c) Floor-standing unit (=Floor-standing unit)
4 Installation

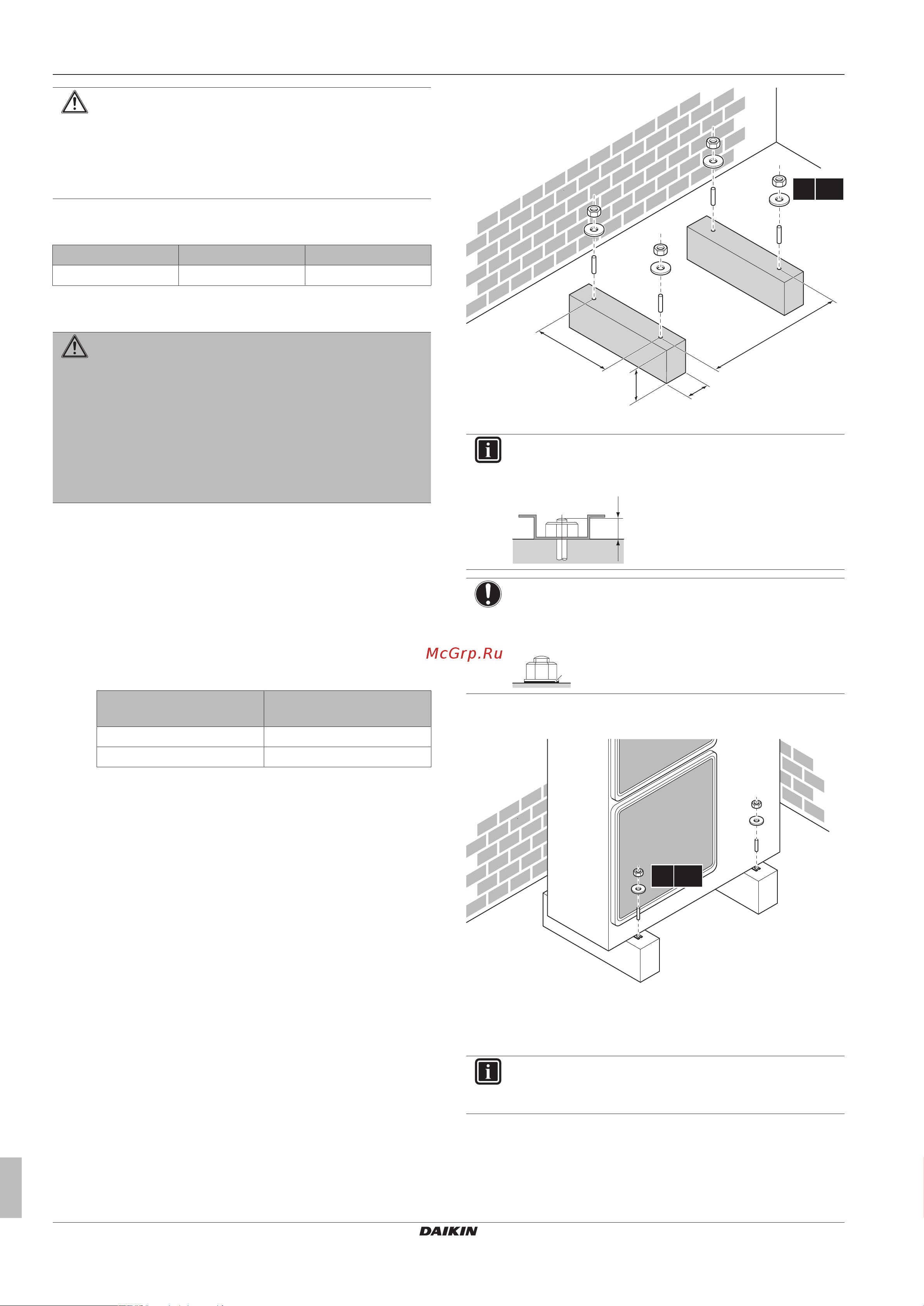

4.1 Mounting the outdoor unit
4.1.1 To provide the installation structure
Prepare 4 sets of anchor bolts, nuts and washers (field supply) as
follows:
(mm)
>150
620
350
(345-355)
4× M12
a
a Make sure not to cover the drain holes.
INFORMATION
The recommended height of the upper protruding part of
the bolts is 20mm.
20
NOTICE
Fix the outdoor unit to the foundation bolts using nuts with
resin washers (a). If the coating on the fastening area is
stripped off, the nuts rust easily.
a
4.1.2 To install the outdoor unit
4× M12
4.1.3 To provide drainage
Make sure that condensation water can be evacuated properly.
INFORMATION
If necessary, you can use a drain plug kit (field supply) to
prevent drain water from dripping.
