Karcher IV 100 / 55 M B1 [21/320] Changing replacing filter

– 8

Î Switch off the appliance using the ON/

OFF switch and separate it from the

mains.

Î At the lower end, loosen and pull out the

hose to the suction turbine.

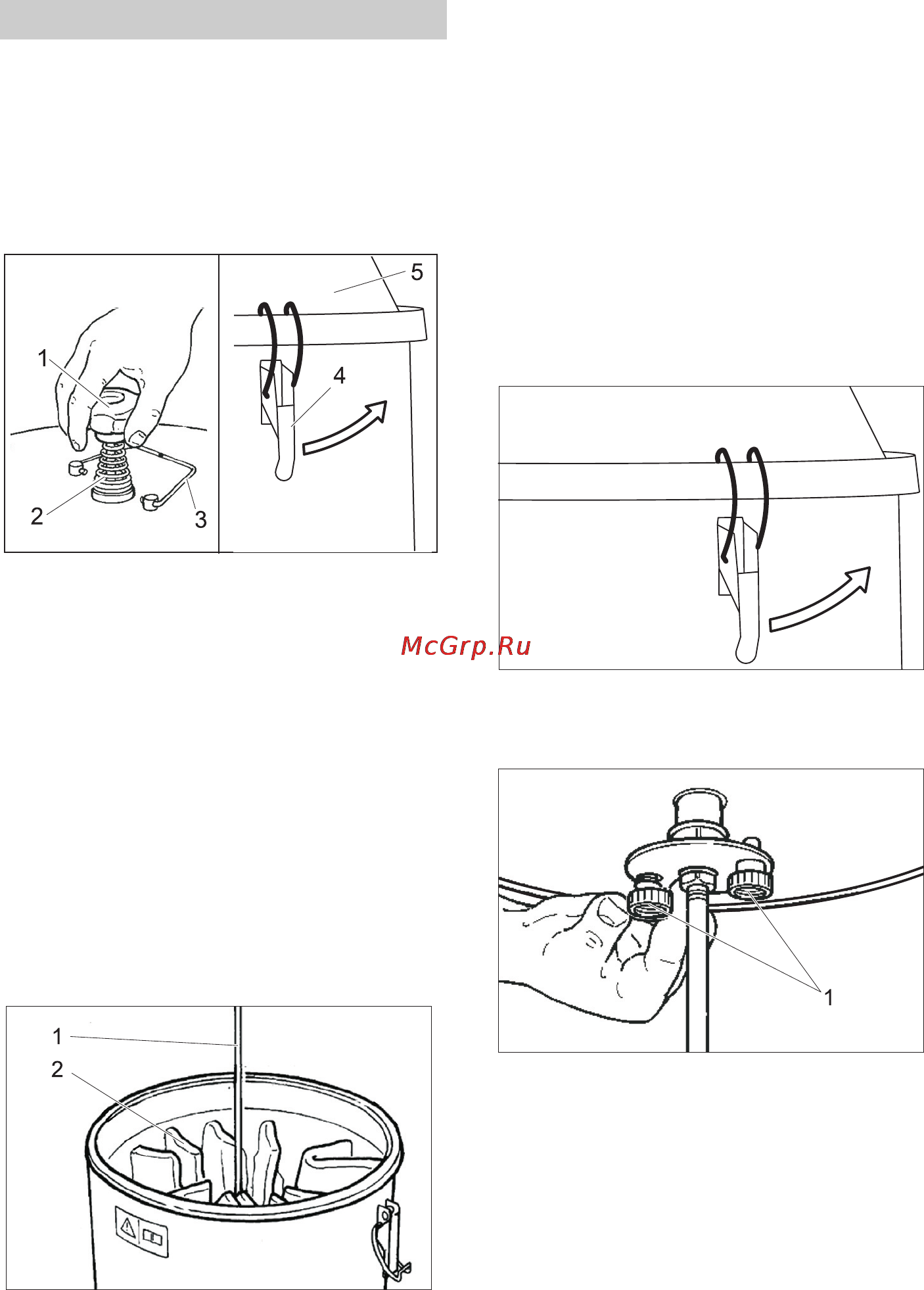

1 Handle for filter cleaning

2Spring

3 Fastener for filter dedusting

4 Lock

5 Lid of filter chamber

Î Tilt the fastener for filter dedusting to-

wards the side.

Î Unscrew the handle for filter cleaning.

Î Remove the spring.

Î Unscrew the nut below the spring (you

will need a spanner with width 27 mm).

Î Open locks.

Î Remove the lid of the filter chamber.

1 Frame

2Filter

Î Open the knot of the tapes on the filter

and remove the frame.

Î Take out the filter.

Î Insert and secure the new filter in the re-

verse sequence of steps.

Î Press the "Switch off appliance" switch.

Î Switch off the appliance using the ON/

OFF switch and separate it from the

mains.

Î At the lower end, loosen and pull out the

hose to the suction turbine.

Î Open locks.

Î Remove the lid of the filter chamber.

1 Knurled-head screw

Î Loosen both the knurled-head scerws

and remove the filter out of the appli-

ance.

Î Insert and secure the new filter in the re-

verse sequence of steps.

Changing/ replacing filter

IV 100/40, IV 100/55

IV 100/75

21EN
