3 Product description
Installation and operating instructions
9
Daikin FLOSTO150
Hot water storage tank
008.1632099_00 – 03/2019 – EN

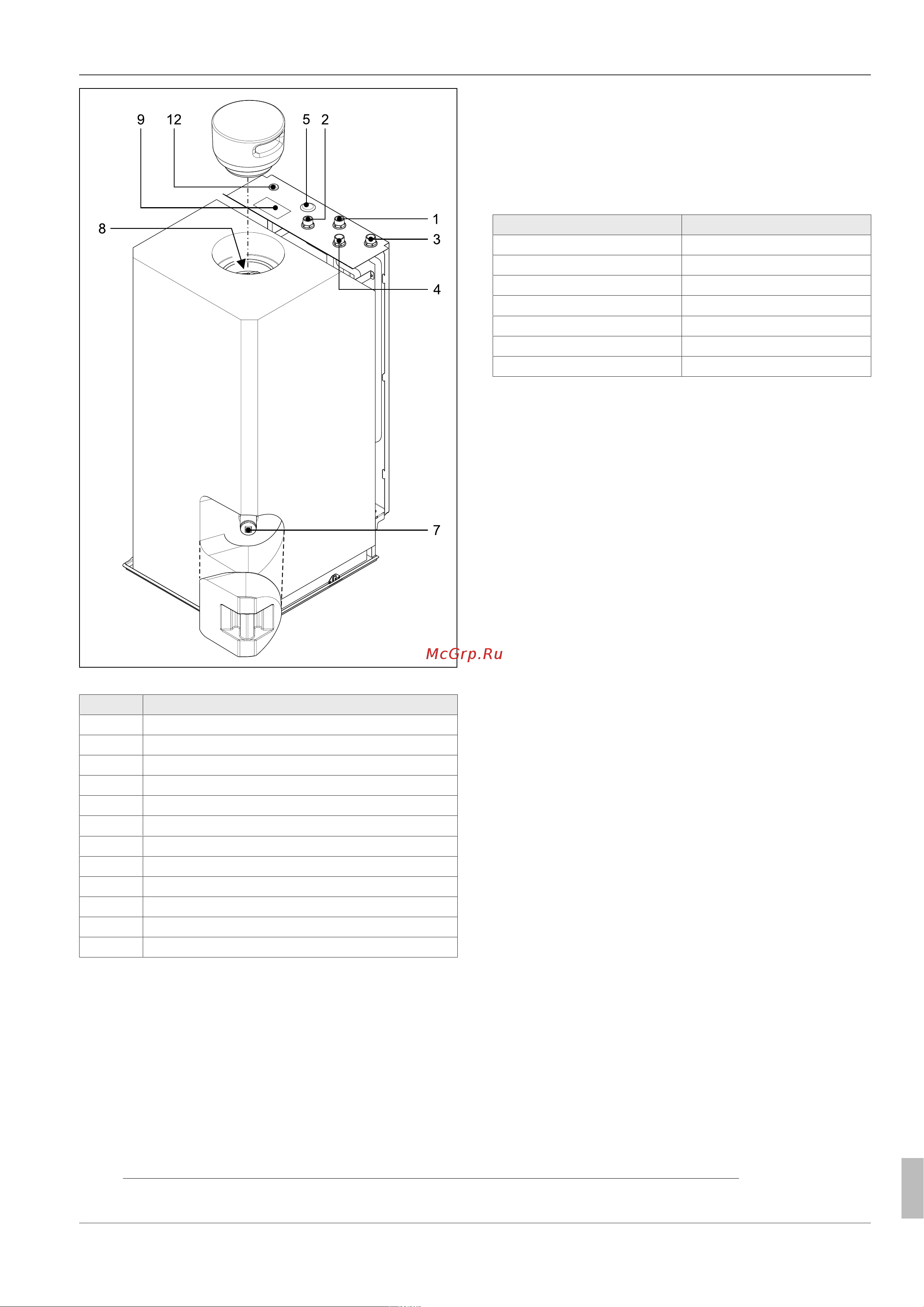

Fig.3-3 View without cladding
Item Designation
1 Cold water connection
2 Hot water connection
3 Storage tank charging return flow
4 Storage tank charging flow
5 Optional: Circulation connection
6 Storage tank sensor sleeve
7 Connection for electric immersion heater
8 Inspection opening/opening for external current anode
9 Type plate
10 Recessed grips
11 Combined valve for draining
12 Cable gland
Tab.3-1
3.2 Installing optional accessories
3.2.1 Electric immersion heater
In addition to the heating option via the stainless steel heat ex-
changer, the hot water storage tank can also be equipped with an
electric immersion heater.
Type DRELHEATERA
Operating voltage 230V / 50Hz
Heating output 4.5kW
Temperature range
(1)
30-78°C
Safety temperature limit
(1)
95°C
Heating element length 0.35m
Screw-in thread R 1½"
Suitable for DFLOSTO150A
Tab.3-2 Electric immersion heater - overview and technical data
3.2.2 Circulation brakes
To prevent heat loss from the connection pipes when the circulation
pump is switched off and during periods when no domestic water is
drawn off (gravity circulation), circulation brakes ZKB (set - 2 pieces)
should be fitted in the connections for the hot water storage tank.
3.2.3 Scalding protection
There is a danger of scalding at hot water temperatures over 60°C.
By installing scalding protection the hot water temperature can be in-
finitely adjusted and limited from 35 - 60°C.
▪ Scalding protection VTA32
▪ Screw connection set 1"
3.2.4 Circulation line connection
If a circulation line is to be connected, the DRCIRCSETA circulation
line connection is recommended.
3.2.5 External current anode
If the filling water has a high total hardness or other properties that
deviate from the minimum requirements (Chap. 1.2.5), the DRELE-
CANODEA external current anode should be installed as additional
corrosion protection.
3.2.6 Storage tank connection kit
To connect the hot water storage tank to an oil condensing boiler,
the DRTANKCOKITA storage tank connection set is needed.
(1)
Temperature regulation and a safety temperature limiter (STB) are already integrated in the electric immersion heater. The
electric immersion heater is delivered ready for fitting.
