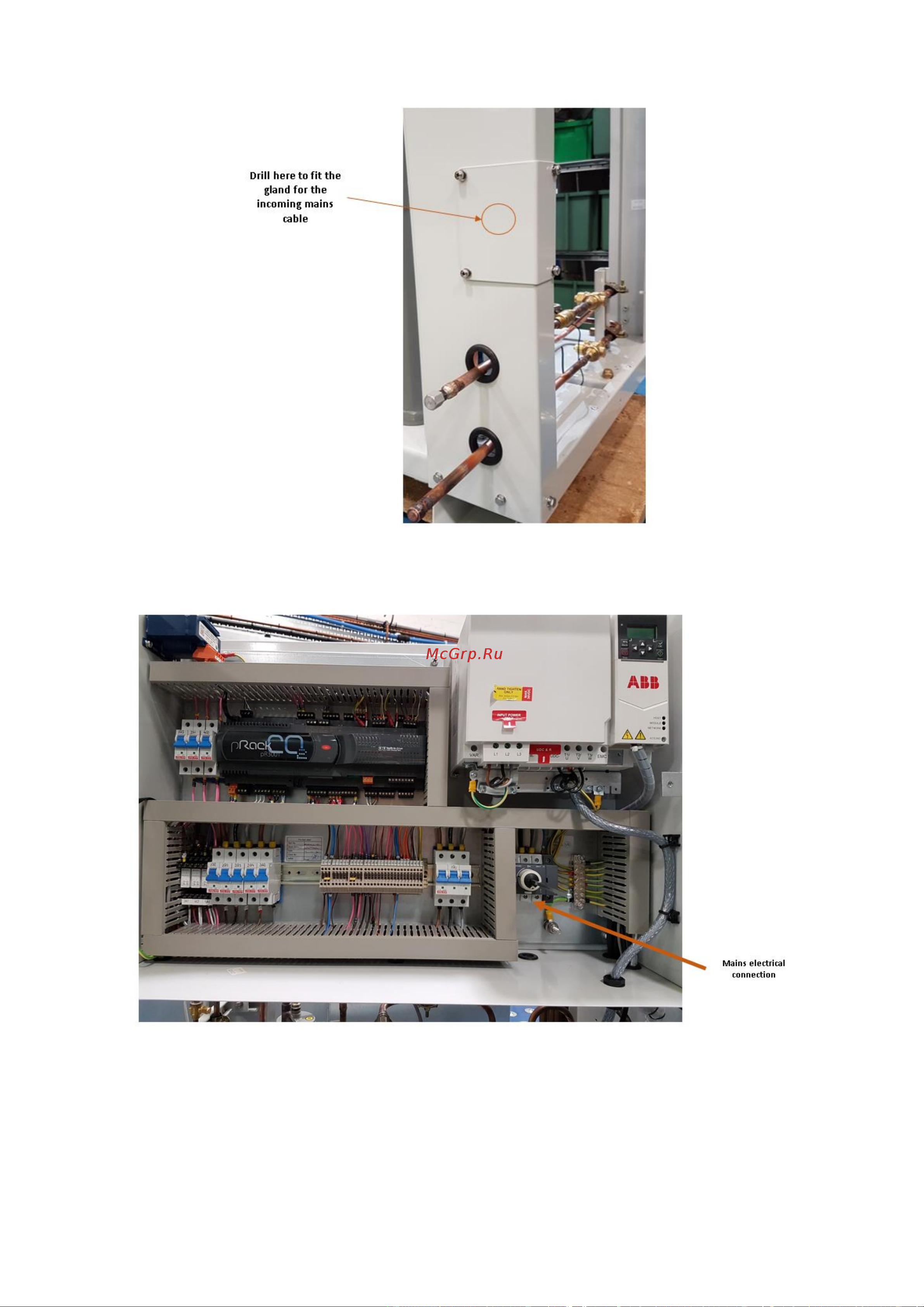

The incoming three phase is connected to the main isolator as shown below.
For GCU4070PXB1 unit an incoming cable size of not less than 4.00mm is recommended. However, cable run and
voltage drop need to be consinder.
Page 13 of 177
Copyright HPL January 2021
P4115S Rev 02
