1. Test for earth continuity. This test is to verify that in no instance should the resistance between the earth

conductor (or control panel main earth terminals) and the metal parts exceed 0.1 ohm.

The electrician MUST ensure that the resistance in the earth conductor between the mains incoming supply and

our control panel earth terminal does NOT exceed the figure quoted above. It is also the responsibility of the

electrician to ensure that the earth conductor into our control panel is sized in accordance with the latest edition of

I.E.E. regulations.

2. A test of polarity should be made and it should be verified that all fuses and single pole control devices are

connected in the phase conductor only.

13.3 Evacuation

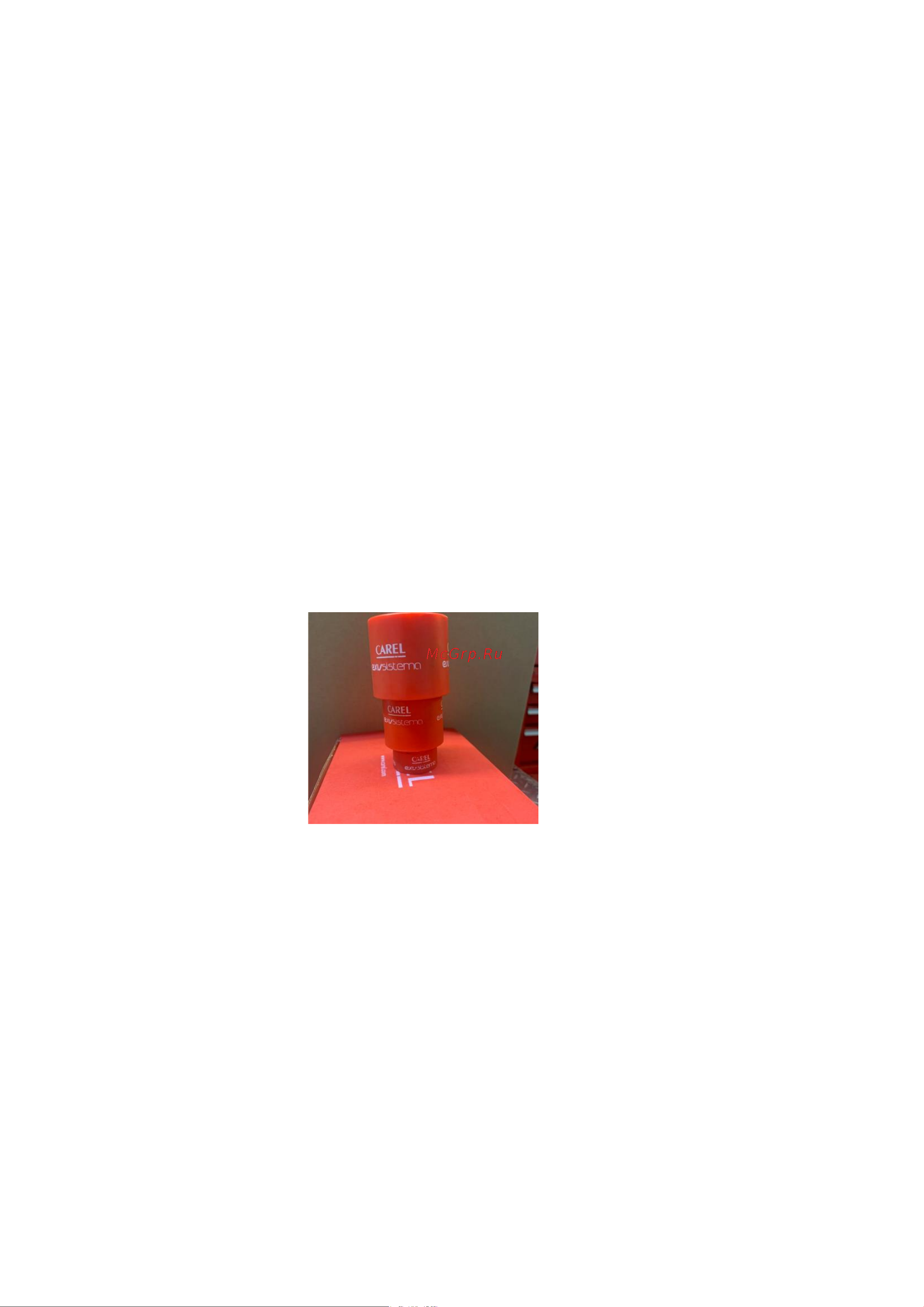

Before startarting the vacuum procedure it is necessary to open by hand the high pressure valve (HPV), see

section 11 above. Also you can refer to P&ID attached in this maunal. For this operation the magnetic tool shown

below needs to be used.

13.4 Charging Refrigerant into the System

Initial charging should only be completed once the system has been proven to be leak free and after proper

vacuum. The charging point is located on the liquid line adjacent to the drier assembly. Liquid or gas should not be

added through the low pressure side of the system. Break vaccum with ONLY CO2 vapour (vapour off take

cylinder) up to 8 to 10 bar pressure. By using vapour CO2 up to that pressure you can avoid any dry-ice formation.

Make sure that compressor is off during this operation.

Maximum amount of refrigerant can be found in section 16.
