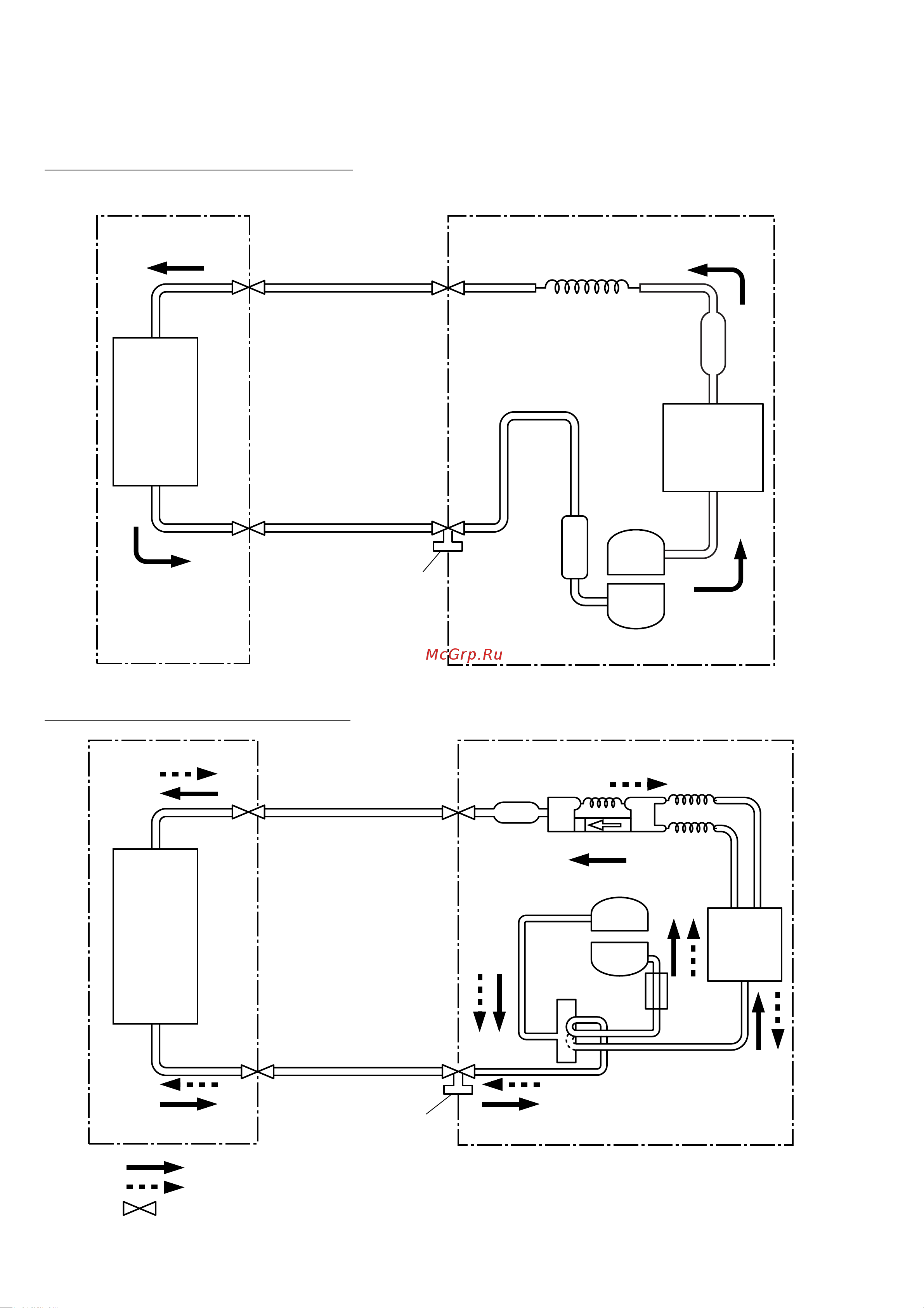

Refrigerant pipe
ø 12.7mm(1/2")
Refrigerant pipe
ø 6.35mm(1/4")
Capillary tube
Charging valve
3-Way
valve
2-Way valve
Compressor
Strainer
OUTDOOR UNITINDOOR UNIT
Condenser
Evaporator
Refrigerant pipe
ø 12.7mm(1/2")
Refrigerant pipe
ø 12.7mm(1/4")
Charging valve
Cooling
Heating
: Flare coupling
3-Way
valve
4-Way
valve
2-Way
valve
Strainer
Compressor
Check valve
Capillary tube
for heating
Capillary tube
for heating and cooling
OUTDOOR UNITINDOOR UNIT
Condenser
Evaporator
– 3 –
Models : ASH12ASGCW / AOH12ASGC
Models : ASH12RSGCW / AOH12RSGC
