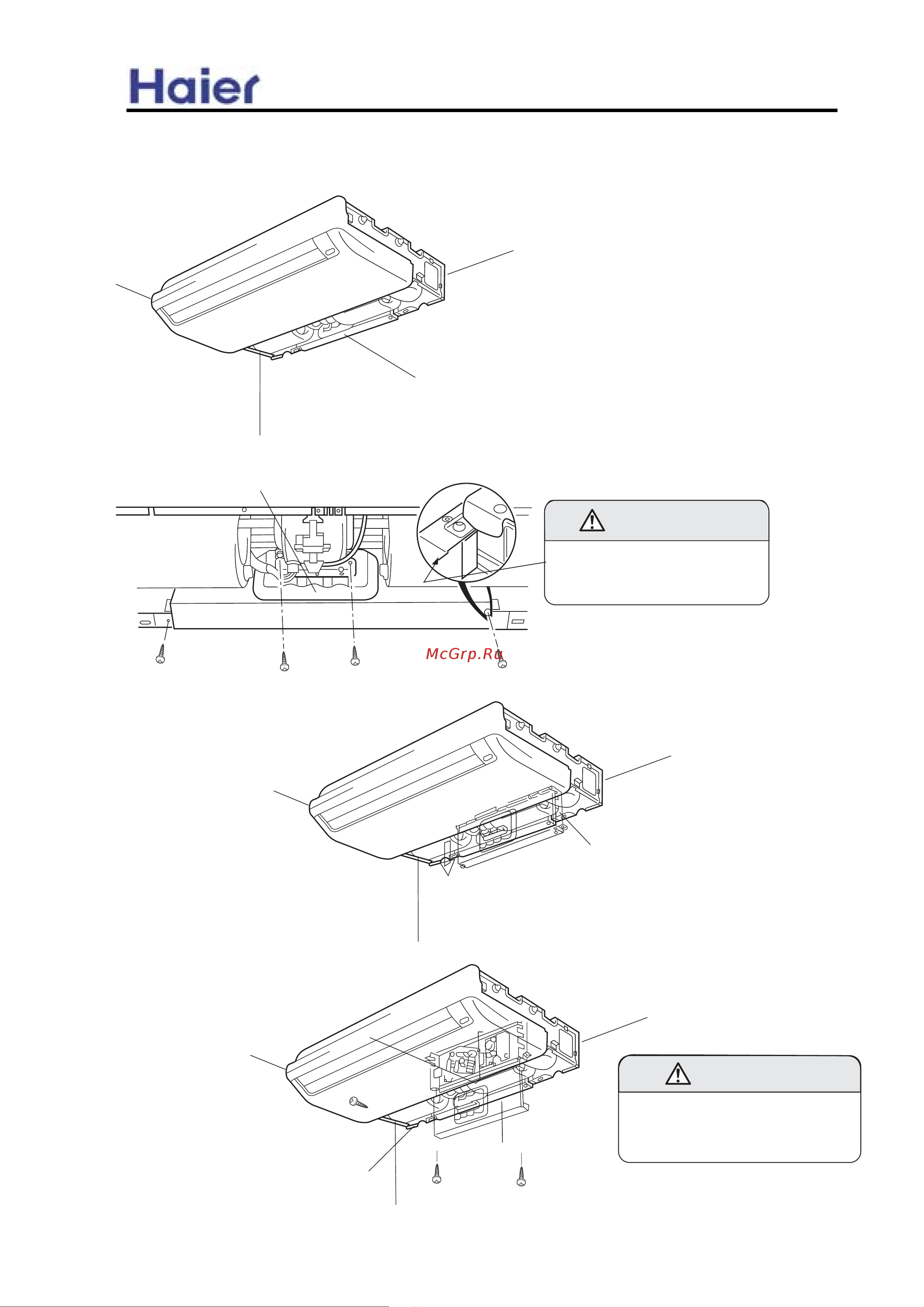

1. INDOOR UNIT SIDE
(1) Remove the electric component box.
(Fig. 21)
Electric component box
(2) Pull out the electric component box.
(3) Remove the electric component box cover.
CAUTION
Be careful not to pinch the lead
wires between the electric
component box and base.
(Fig. 22)
Electric component box
Remove the four tapping screws.
CAUTION
Do not remove the screws. If the
screws are removed, the electric
component box will fall.
(Fig. 23)
Electric component box
(Fig. 24)
Base
Electric component box cover
Remove the three tapping screws.
Commercial Air Conditioner Model: HCFU-18/28CF03
HCFU-18/28HF03
19
