MOUNT THE COVER PLATE AND THE INTAKE GRILL

Note: The following installing procedure only for series 14,18,24

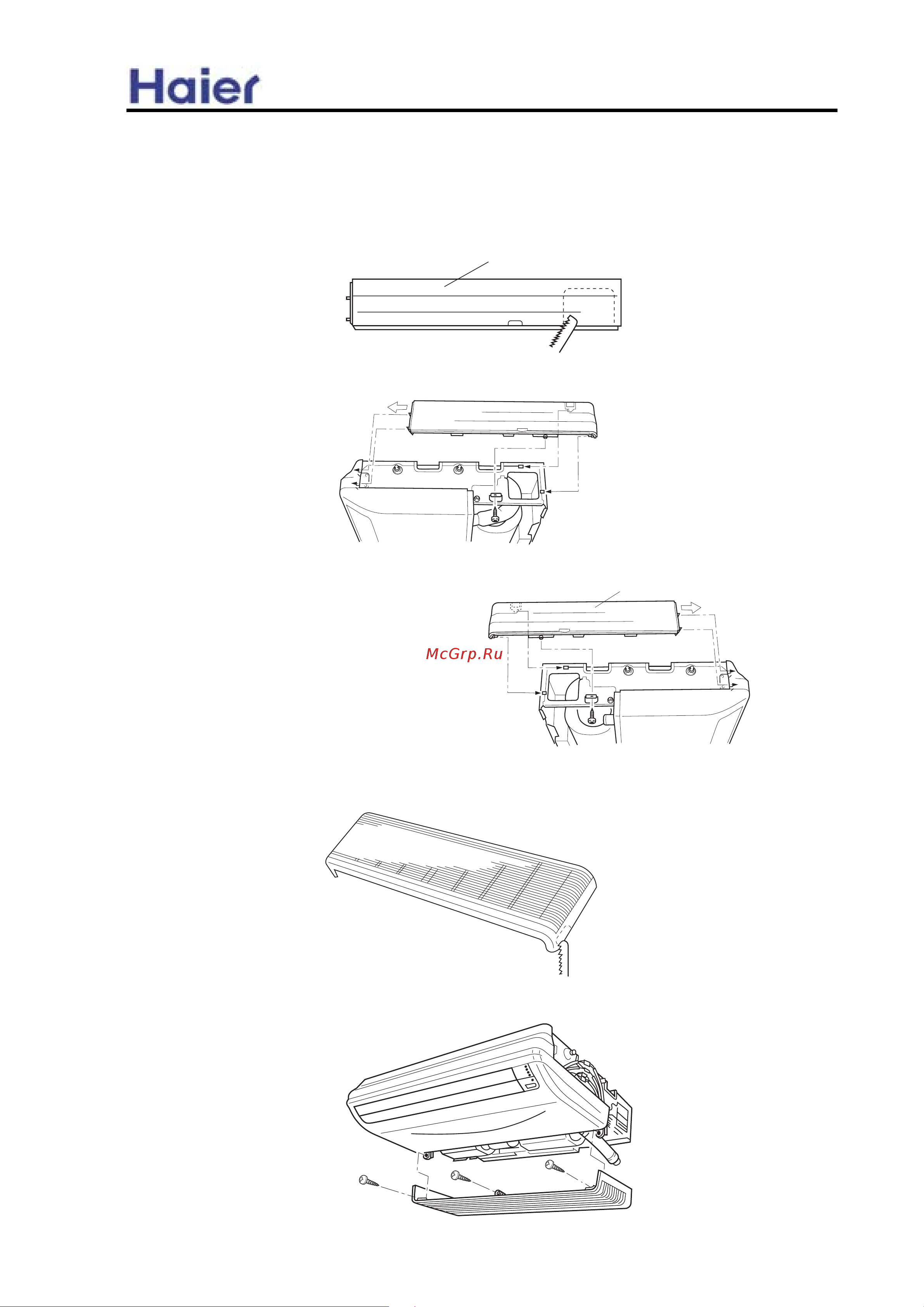

1.Mount the cover plate. (Right)

(1) Cut a pipe exit hole in the right plate. This is only when the pipe exits from the right side. (This operation is not

required when the protrusion is on the top or rear.)

(Fig. 26)

Cover plate (Right)

(2) Join the cover plates (right) and mount with screws.

(Fig. 27)

2. Mount the cover plate.(Left)

(1) Join the cover plate (left) and mount with screws.

(2) Insert the hinges on the bottom of the intake grill into the holes in the base assembly. Then mount the

arms to the three areas on the top of the intake grill.

(Fig. 29)

(1) Cut the right side of the intake grill. This is only when the pipe exits from the right side

3. Mount the intake grill.

(Fig. 28)

(Fig.30)

Cover plate (Left)
