Haier HSU-09H03/R(DB) [54/131] Operation

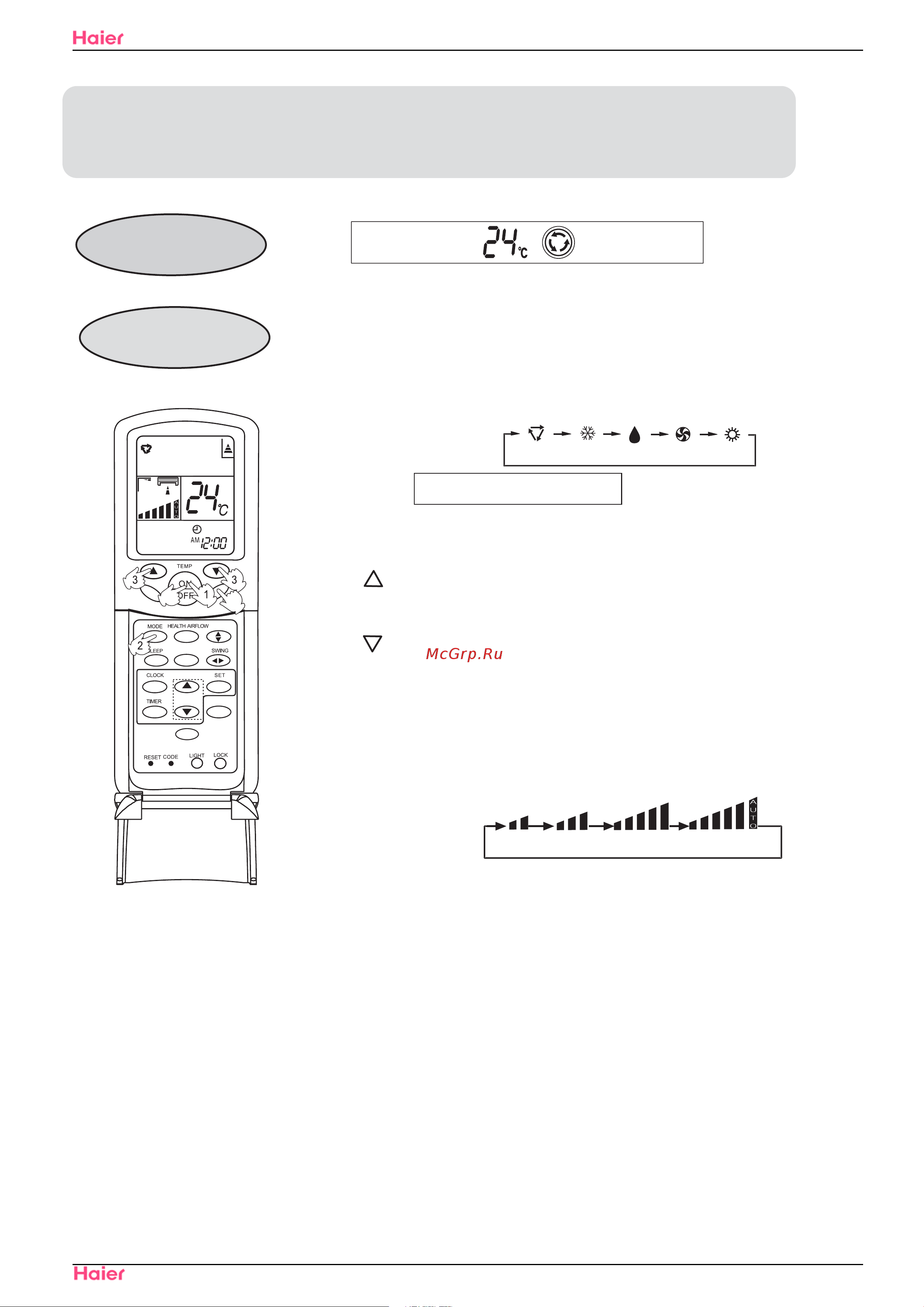

![Haier HSU-09H03/R(DB) [54/131] Operation](/views2/1809710/page54/bg36.png)
Remote controller
LOW
MED
HI
AUTO
5
4
Operation
POWER/SOFT
About Auto Operation
Under the mode of auto operation, air conditioner will automatically
select Cool or Fan operation according to room temperature.
1. Unit start
Press ON/OFF on the remote controller, unit starts.
2.Select operation mode
Press MODE button. For each press, operation mode
changes as follows:
Remote controller:
Then
Select Auto operation
Press FAN button. For each press, fan speed changes
as follows:
Remote controller:
Press TEMP. button
Every time the button is pressed, temp.setting
increase 1
o
C,if kept depressed, it will increase
rapidly.
Every time the button is pressed, temp.setting
decrease 1
o
C,if kept depressed, it will decrease
rapidly.
Select a desired temperature.
4.Fan speed selection
3.Select temp.setting
5.Unit stop
Air conditioner is running under displayed fan speed.
When FAN is set to AUTO, the air conditioner
automatically adjusts the fan speed according to room
temperature.
Press ON/OFF button, the unit stops.
Display board
Auto Operation
AUTO COOL DRY FAN HEAT
TEMP./HUMIDITY DISPLAY
HUMIDITY
FRESH
PURIFY
51
Domestic Air Conditioner
HSU-09,12H03/R(DB) System Configuration
