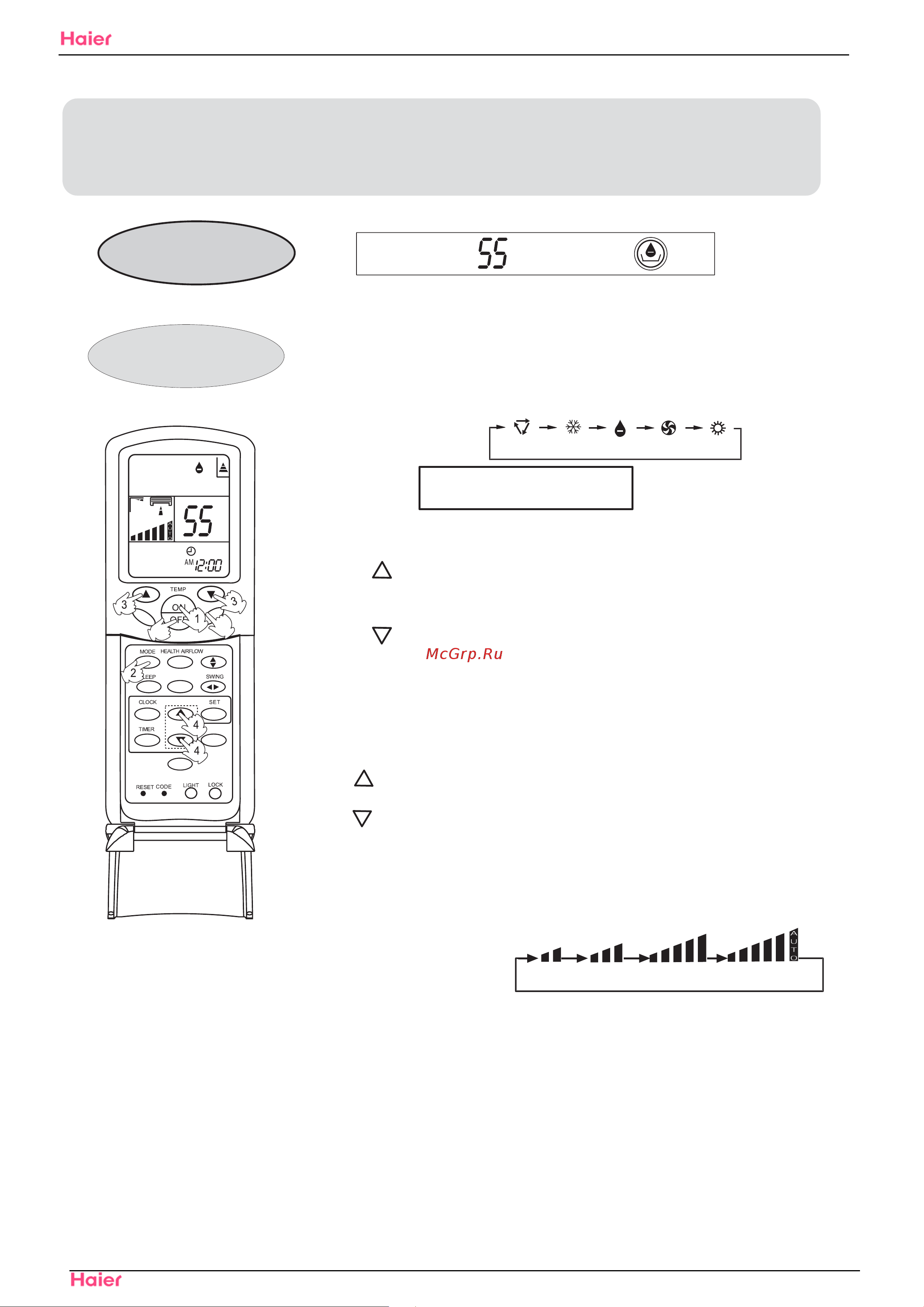

![Haier HSU-09H03/R(DB) [56/131] Operation](/views2/1809710/page56/bg38.png)
Remote controller
About constant temperature dehumidification operation:
when constant temperature dehumidification runs, if the room temperature is 3
o
C
higher than the set
temperature, the air conditioner will automatically decrease the temperature and dehumidify; if the
temperature deviation is less than 3
o
C
, the air conditioner will automatically keep the temperature and
dehumidify, so these can make the temperatures of the air inside and outside near to each other and
avoid the cold airflow blowing people.
4.Setting humidity
Each time, the set humidity will increase by 5%, if keeping press
it, the humidity will increase rapidly.
Each time, the set humidity will decrease by 5%, if keeping press
it, the humidity will decrease rapidly.
Under the state of constant temperature dehumidification,
press humidity setting key
5
6
The controllable humidity range is available from 35% to 70%.
%
%
2.Select operation mode
Press FAN button. For each press, fan speed changes as
follows:
Press MODE button. For each press, operation mode
changes as follows:
Remote controller:
Remote controller:
Then Select DRY operation
Press TEMP. button
Every time the button is pressed, temp.setting
increase 1
o
C,if kept depressed, it will increase
rapidly.
Every time the button is pressed, temp.setting
decrease 1
o
C,if kept depressed, it will decrease
rapidly.
Select a desired temperature.
5.Fan speed selection
3.Select temp.setting
6.Unit stop
Press ON/OFF button, the unit stops.
LOW
MED
HI
AUTO
Operation
1. Unit start
Press ON/OFF on the remote controller, unit starts.
POWER/SOFT
FRESH
Air conditioner is running under displayed fan speed.
In DRY mode, when room temperature becomes
lower than temp.setting+2
o
C,unit will run intermittently
at LOW speed regardless of FAN setting.
Dry Operation
Display board
AUTO COOL DRY FAN HEAT
HUMIDITY
TEMP./HUMIDITY
DISPLAY
PURIFY
53
Domestic Air Conditioner
HSU-09,12H03/R(DB) System Configuration
