7.4.8 Communication error between the indoor and
outdoor units
,QGRRUGLVSOD\
(
(
(
0HWKRGRI
The date received from the another unit in indoor unit-outdoor unit signal
transmission is
0DOIXQFWLRQ
checked whether is normal
'HWHFWLRQ
0DOIXQFWLRQ
When the date sent from the another unit cannot be received normally,or when the content
'HFLVLRQ
of the data is abnormal
&RQGLWLRQV
6XSSRVHGƵ
indoor unit- outdoor unit signal transmission error due to wiring error
&DXVHVƵ
Faulty PCB

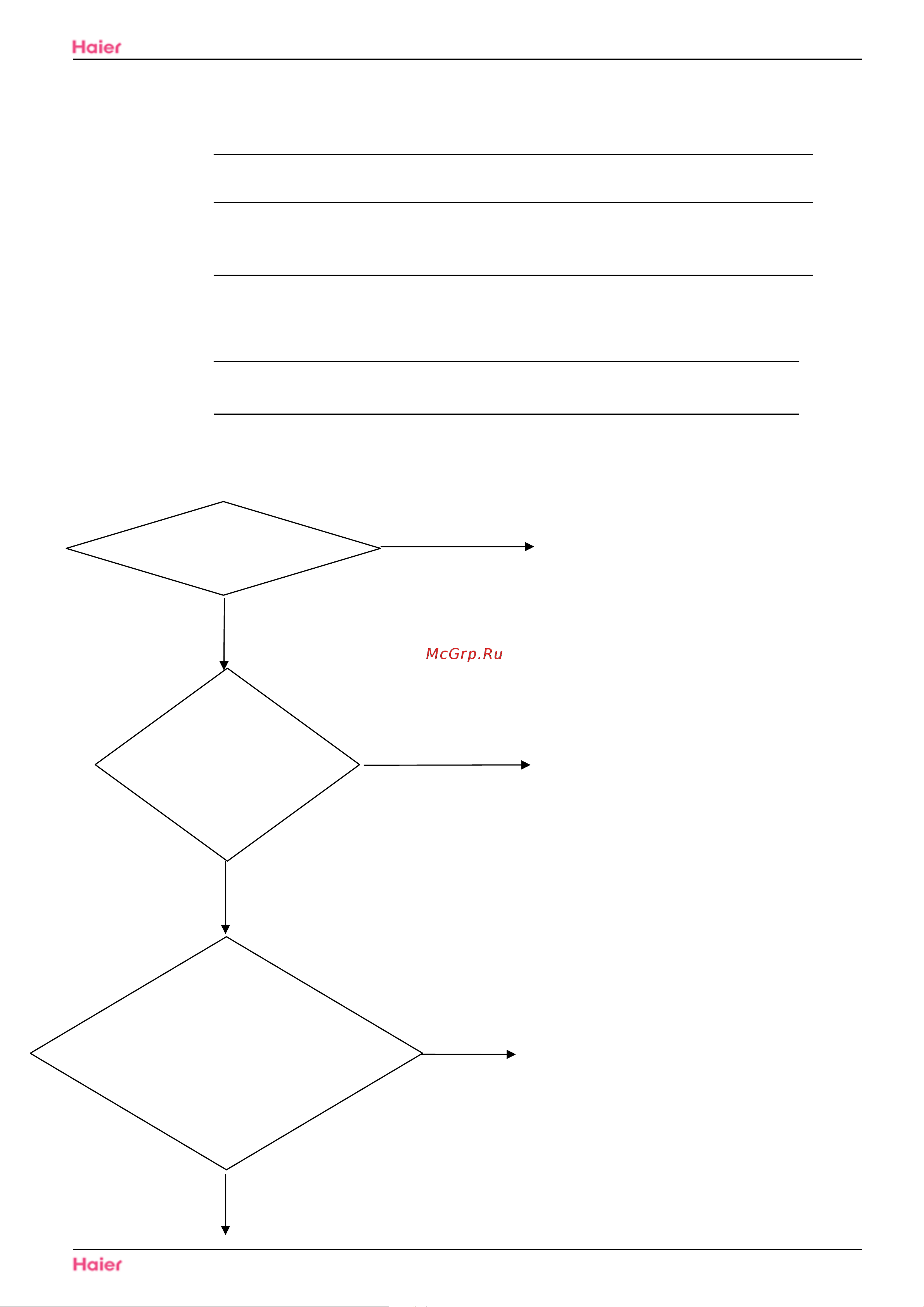

Troubleshooting
&DXWLRQ
Be sure to turn off power switch before connect or disconnect connector,
or else parts damage may be occurred.
Restart the a/c and it
becomes normally.
If starting up
normally, but
malfunction occurs
again after a while
Check whether the linking
cable between the indoor and
outdoor is well connected or
whether its core wires are
well insulated.
Yes
Yes
Yes
No
No
No
1. Reconnect the linking cable;
2. Replace the linking cable with
new one.
The outdoor mainboard
needs dedust.
The outdoor mainboard needs
dehumidification.
Demastic Air Conditioners
+6809,12H03/R(DB)
System Diagnosis
84
