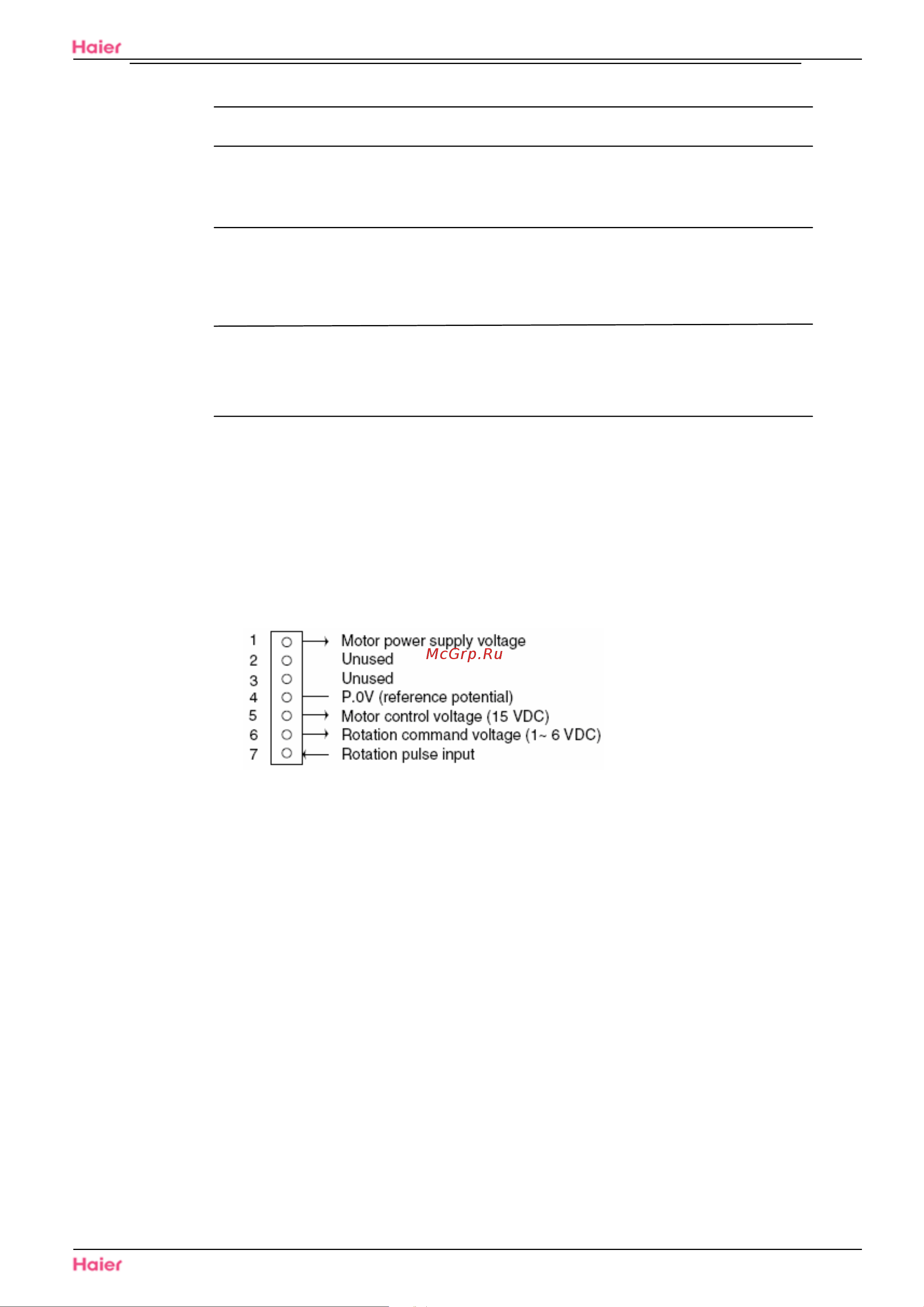

7.4.3 Fan Motor(DC Motor) or Related Abnormality
,QGRRU'LVSOD\
(
(
(
0HWKRGRI
The rotation speed detected by the Hall IC during fan motor operation is used to determine
0DOIXQFWLRQ
abnormal fan motor operation
'HWHFWLRQ
0DOIXQFWLRQ
when the detected rotation feedback singal don’t receiced in 2 minutes
'HFLVLRQ
&RQGLWLRQV
6XSSRVHGƵ
Operation halt due to short circuit inside the fan motor winding.
&DXVHVƵ
Operation halt due to breaking of wire inside the fan motor .
Ƶ
Operation halt due to breaking of the fan motor lead wires
Ƶ
Dedection error due to faulty indoor unit PCB
How to check Fan Motor (DC)
1. Check connector connection.
2. Check motor power supply voltage output (pins 1-4).
3. Check motor control voltage (pins 4-5).
4. Check rotation command voltage output (pins 4-6).
5. Check rotation pulse input (pins 4-7).
Notes:the a/c is electrifying,don’t pull out or insert the terminals of
the motor,else the motor would be damaged
Demastic Air Conditioners
+6809,12H03/R(DB)
System Diagnosis
76
