6XSSRVHGƵ
Supply voltage not as specified
&DXVHVƵ
the IPM module is broken
Ƶ
the outdoor PCB is broken

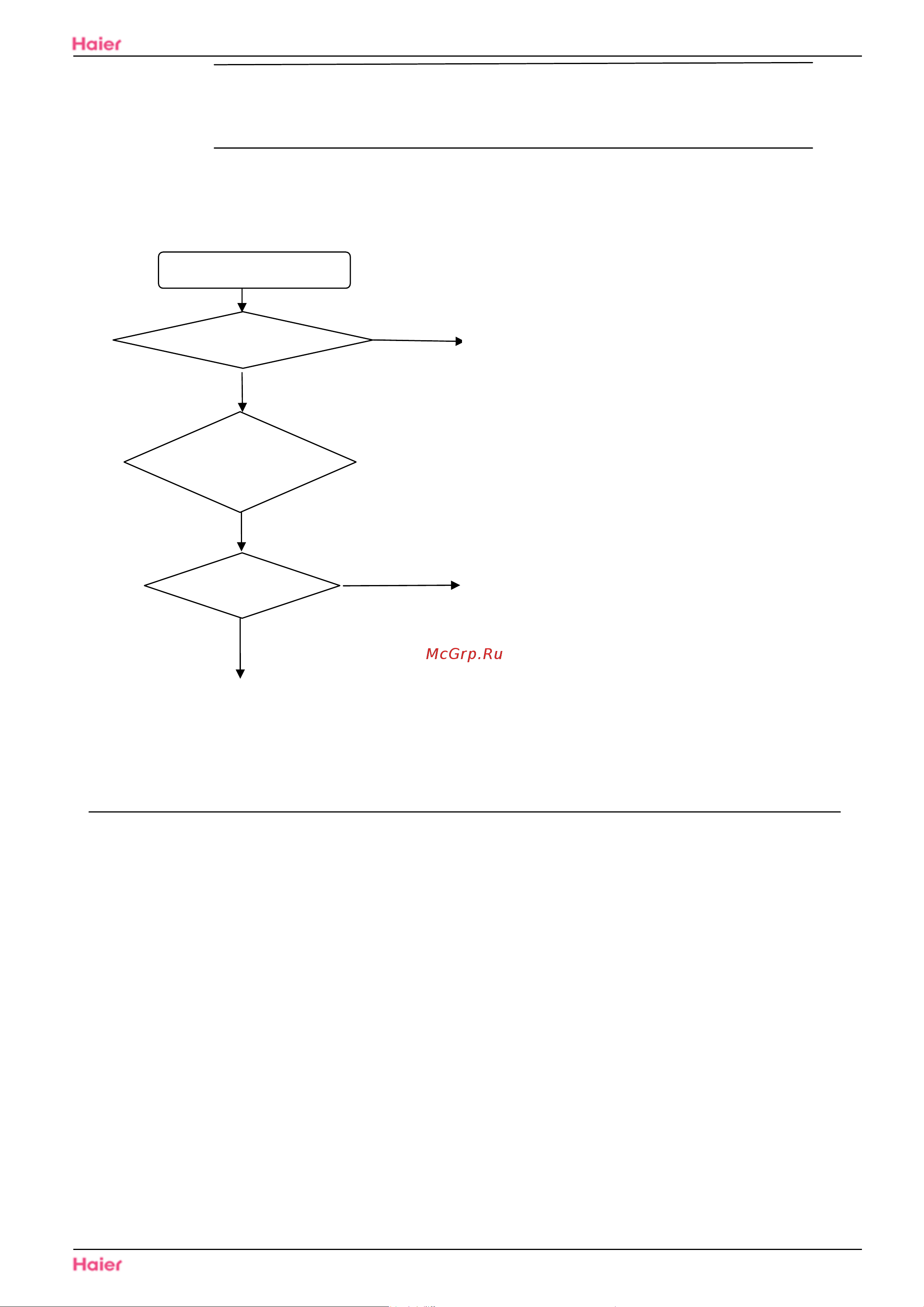

Troubleshooting
&DXWLRQ
Be sure to turn off power switch before connect or disconnect connector, or
else parts damage may be occurred.
About how to check the IPM module,please refer to IPM protection fault
Check the power supply
Is it rated power?
No
This question may be caused by the power
Yes
Yes
Check the IPM
module
Is it normal?
Change the new one
No
Change the outdoor PCB
Demastic Air Conditioners
+6809,12H03/R(DB)
System Diagnosis
72
