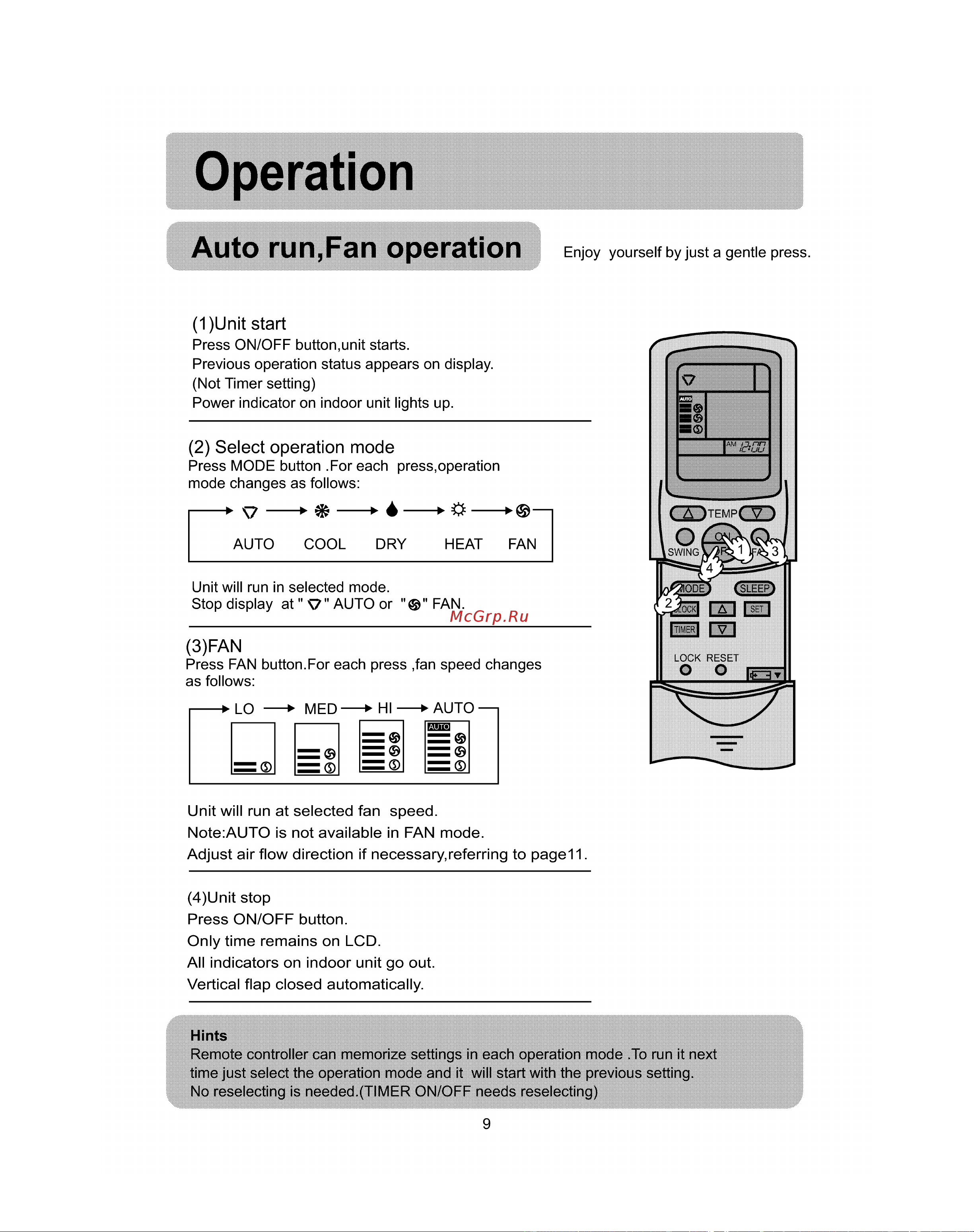

Operation Auto run Fan operation Enjoy yourself by just a gentle press 1 Unit start Press ON OFF button unit starts Previous operation status appears on display Not Timer setting Power indicator on indoor unit lights up 2 Select operation mode Press MODE button For each press operation mode changes as follows v 4 ft AUTO COOL DRY HEAT FAN Unit will run in selected mode Stop display at V AUTO or FAN 3 FAN Press FAN button For each press Jan speed changes as follows LO MED HI kAUTO Unit will run at selected fan speed Note AUTO is not available in FAN mode Adjust air flow direction if necessary referring to page ll 4 Unit stop Press ON OFF button Only time remains on LCD All indicators on indoor unit go out Vertical flap closed automatically Remote controller can memorize settings in each operation mode To run it next time just select the operation mode and it will start with the previous setting No reselecting is needed TIMER ON OFF needs reselecting 9
