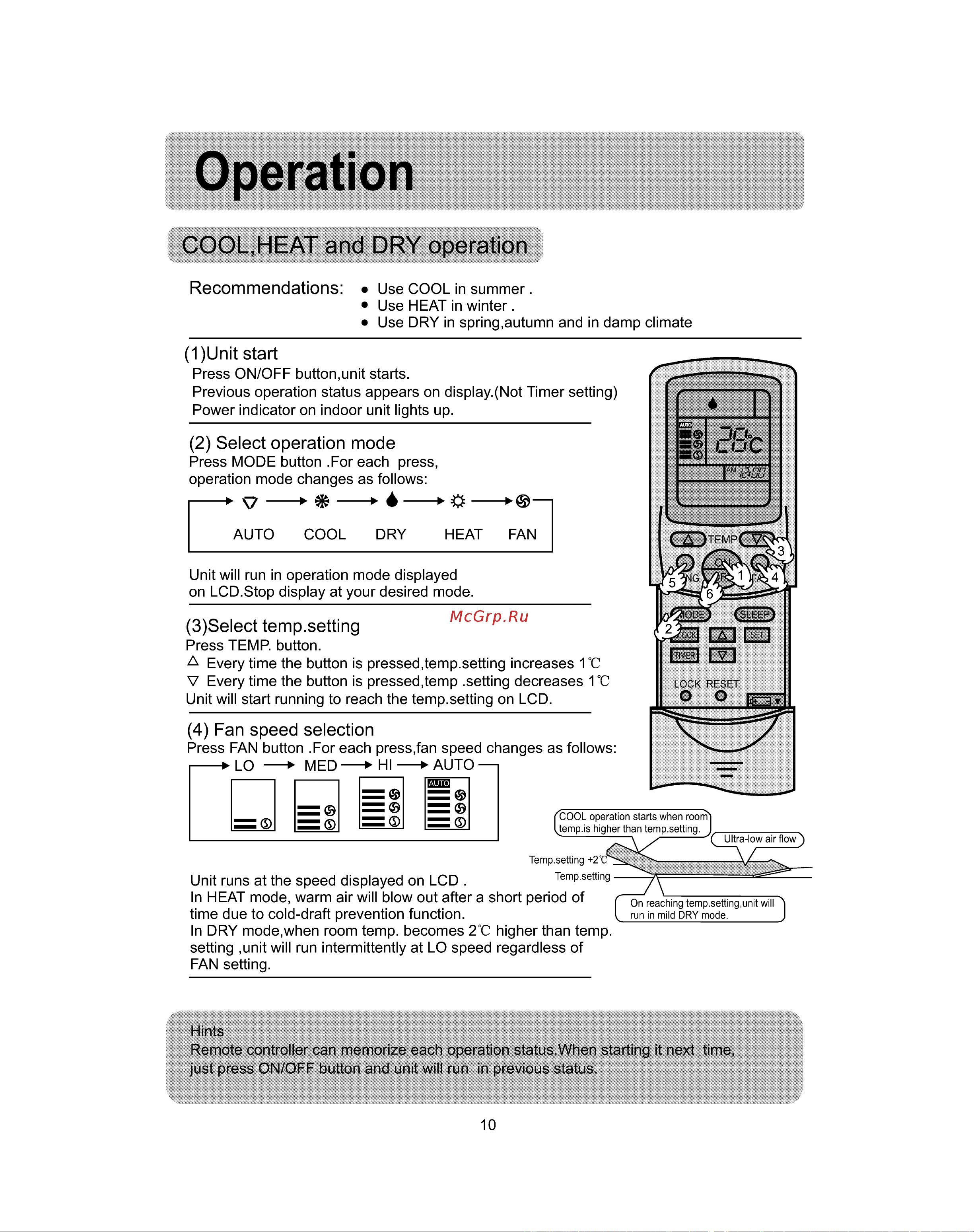

Operation COOL HEAT and DRY operation Recommendations Use COOL in summer Use HEAT in winter Use DRY in spring autumn and in damp climate 1 Unit start Press ON OFF button unit starts Previous operation status appears on display Not Timer setting Power indicator on indoor unit lights up 2 Select operation mode Press MODE button For each press operation mode changes as follows Unit will run in operation mode displayed on LCD Stop display at your desired mode 3 Select temp setting Press TEMP button Every time the button is pressed temp setting increases 1 C V Every time the button is pressed temp setting decreases 1 C Unit will start running to reach the temp setting on LCD 4 Fan speed selection Press FAN button For each press fan speed changes as follows LO MED HI AUTO raum Temp setting 2 C Temp setting Unit runs at the speed displayed on LCD In HEAT mode warm air Will blow out after a short period of Reaching temp setting unit will time due to cold draft prevention function I run in mild DRY mode __________ In DRY mode when room temp becomes 2 C higher than temp setting unit will run intermittently at LO speed regardless of FAN setting Remote controller can memorize each operation status When starting it next time just press ON OFF button and unit will run in previous status 10
