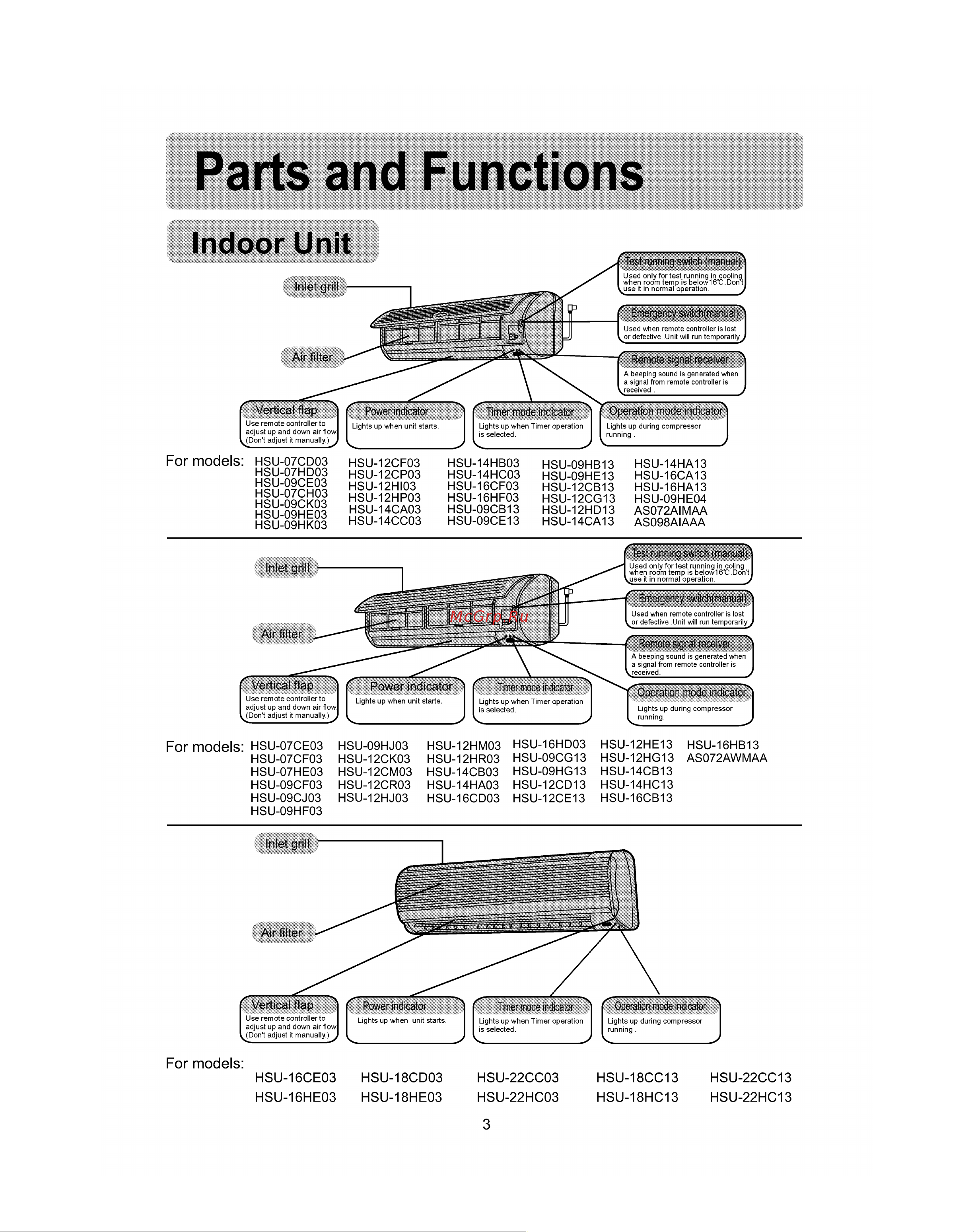

Parts and Functions Indoor Unit Test running switch manualp Used only for test running in cooling when room temp is below16 C Dont use it in normal operation _______ j Inlet grill Emergency switch manualp Used when remote controller is lost or defective Unit will run temporarily Air filter Remote signal receiver A beeping sound is generated when a signal from remote controller is Vertical flap Use remote controller to adjust up and down air flow Don t adjust it manually For models HSU 07CD03 HSU 07HD03 HSU 09CE03 HSU 07CH03 HSU 09CK03 HSU 09HE03 HSU 09HK03 Power indicator Timer mode indicator Lights up when unit starts HSU 12CF03 HSU 12CP03 HSU 12HI03 HSU 12HP03 HSU 14CA03 HSU 14CC03 Lights up when Timer operation is selected HSU 14HB03 HSU 14HC03 HSU 16CF03 HSU 16HF03 HSU 09CB13 HSU 09CE13 Operation mode indicator Lights up during compressor running HSU 09HB13 HSU 09HE13 HSU 12CB13 HSU 12CG13 HSU 12HD13 HSU 14CA13 HSU 14HA13 HSU 16CA13 HSU 16HA13 HSU 09HE04 AS072AIMAA AS098AIAAA Test timing switch manual Used only for test running in coling when room temp is below16 C Don t use it in normaloperation J Inlet grill Emergency switch manualp Used when remote controller is lost or defective Unit will run temporanly Air Remote signal receiver A beeping sound is generated when a signal from remote controller is Vertical flap Use remote controller to adjust up and down air flow Don t adjust it manually For models HSU 07CE03 HSU 07CF03 HSU 07HE03 HSU 09CF03 HSU 09CJ03 HSU 09HF03 Power indicator Lights up when unit starts HSU 09HJ03 HSU 12CK03 HSU 12CM03 HSU 12CR03 HSU 12HJ03 Timer mode indicator Lights up when Timer operation is selected HSU 12HM03 HSU 12HR03 HSU 14CB03 HSU 14HA03 HSU 16CD03 HSU 16HD03 HSU 09CG13 HSU 09HG13 HSU 12CD13 HSU 12CE13 Operation mode indicator Lights up during compressor running HSU 12HE13 HSU 16HB13 HSU 12HG13 AS072AWMAA HSU 14CB13 HSU 14HC13 HSU 16CB13 Inlet grill Air filter Vertical flap Use remote controller to adjust up and down air flow Don t adjust it manually Power indicator Lights up when unit starts Timer mode indicator Lights up when Timer operation is selected Operation mode indicator Lights up during compressor running For models HSU 16CE03 HSU 18CD03 HSU 22CC03 HSU 18CC13 HSU 22CC13 HSU 16HE03 HSU 18HE03 HSU 22HC03 HSU 18HC13 HSU 22HC13 3
