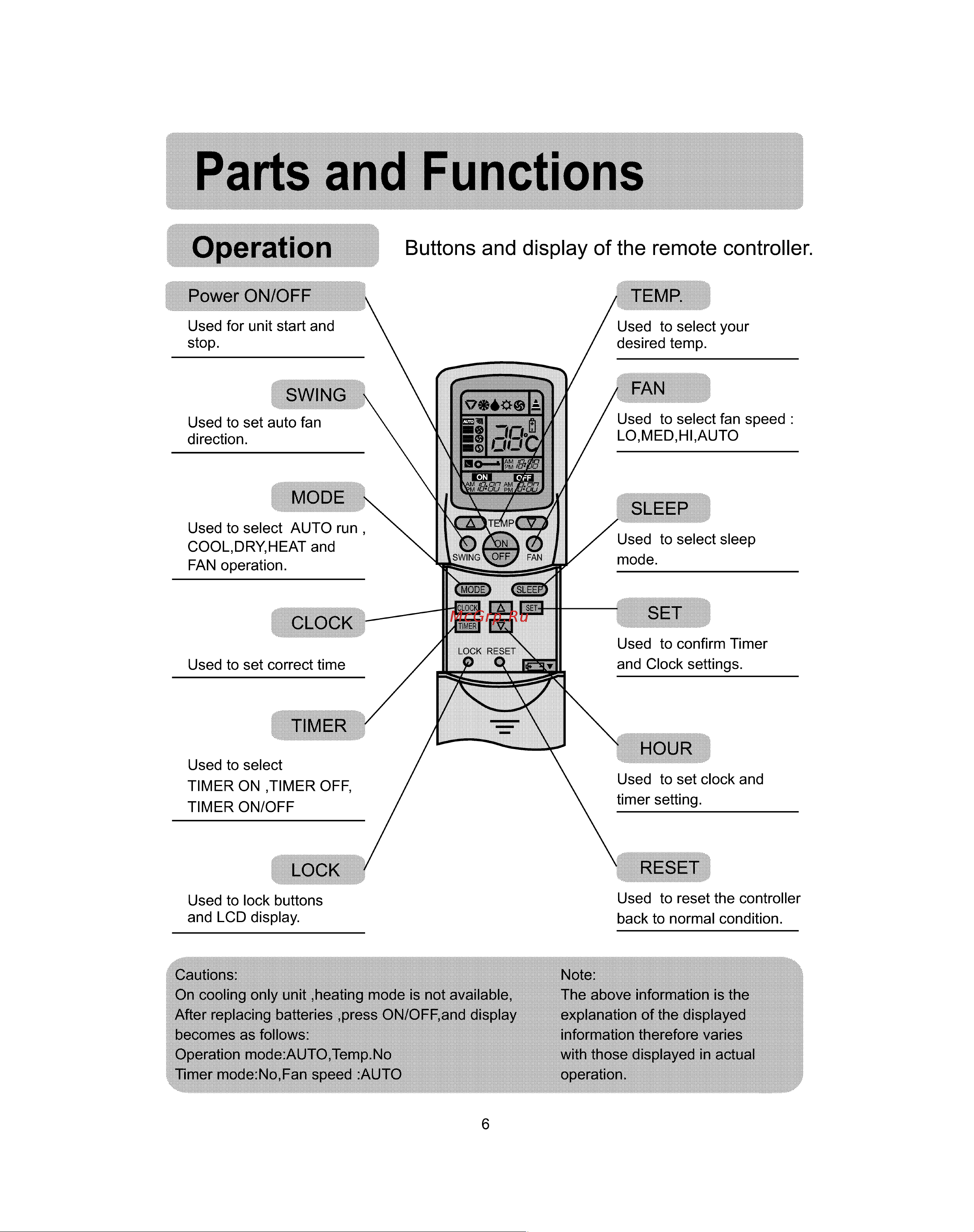

Parts and Functions Operation Buttons and display of the remote controller Power ON OFF TEMP Used for unit start and stop Used to select your desired temp FAN SWING Used to select fan speed LO MED HI AUTO Used to set auto fan direction MODE SLEEP Used to select AUTO run COOL DRY HEAT and FAN operation Used to select sleep mode SET CLOCK Used to confirm Timer and Clock settings Used to set correct time TIMER HOUR Used to select Used to set clock and timer setting TIMER ON TIMER OFF TIMER ON OFF RESET LOCK Used to reset the controller back to normal condition Used to lock buttons and LCD display Cautions On cooling only unit heating mode is not available After replacing batteries press ON OFF and display becomes as follows Operation mode AUTO Temp No Timer mode No Fan speed AUTO 6 Note The above information is the explanation of the displayed information therefore varies with those displayed in actual operation
