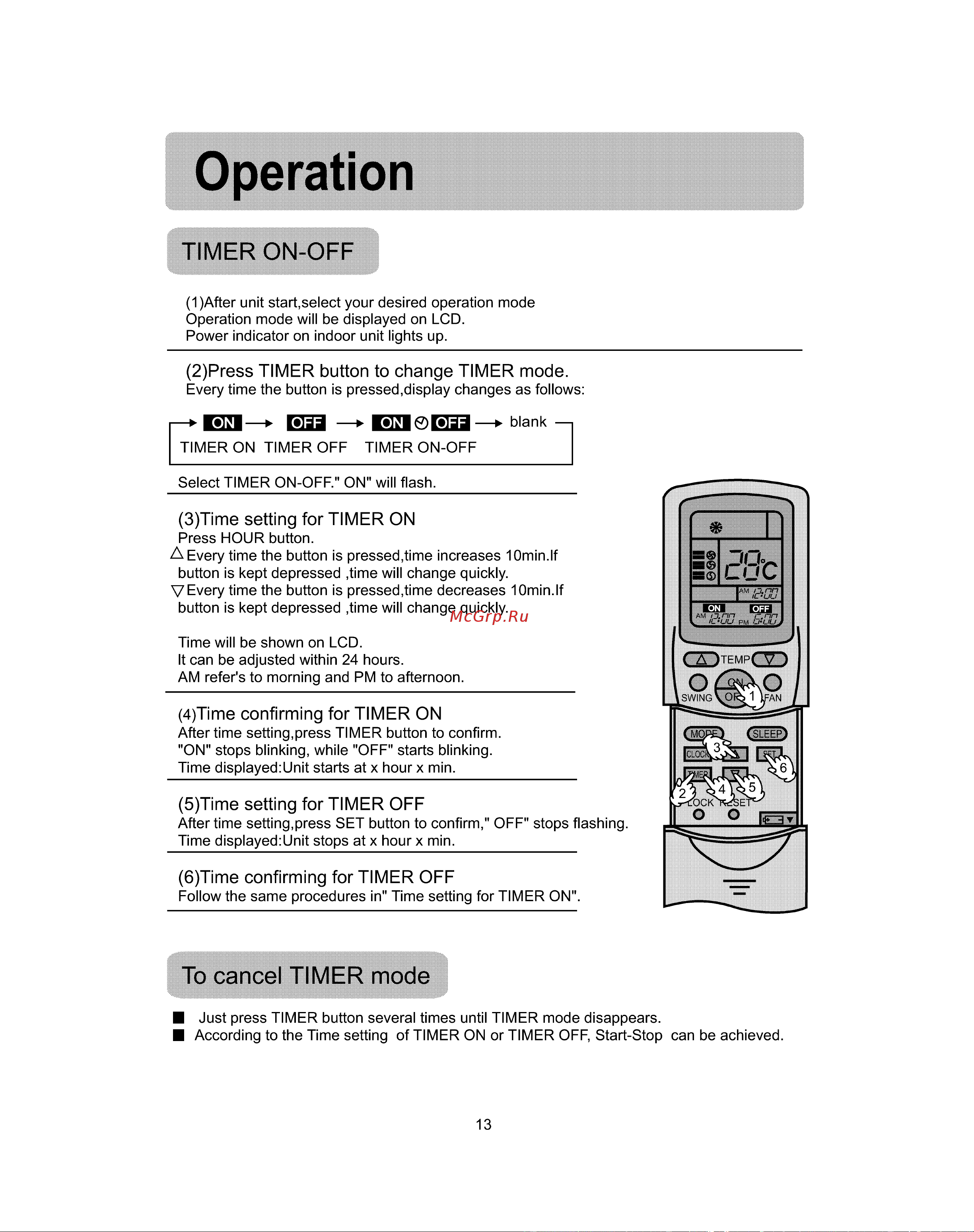

Operation TIMER ON OFF 1 After unit start select your desired operation mode Operation mode will be displayed on LCD Power indicator on indoor unit lights up 2 Press TIMER button to change TIMER mode Every time the button is pressed display changes as follows EM ES3 blank TIMER ON TIMER OFF TIMER ON OFF Select TIMER ON OFF ON will flash 3 Time setting for TIMER ON Press HOUR button Every time the button is pressed time increases 10min lf button is kept depressed time will change quickly V Every time the button is pressed time decreases 10min lf button is kept depressed time will change quickly Time will be shown on LCD It can be adjusted within 24 hours AM refer s to morning and PM to afternoon 4 Time confirming for TIMER ON After time setting press TIMER button to confirm ON stops blinking while OFF starts blinking Time displayed Unit starts at x hour x min 5 Time setting for TIMER OFF After time setting press SET button to confirm OFF stops flashing Time displayed Unit stops at x hour x min 6 Time confirming for TIMER OFF Follow the same procedures in Time setting for TIMER ON To cancel TIMER mode Just press TIMER button several times until TIMER mode disappears According to the Time setting of TIMER ON or TIMER OFF Start Stop can be achieved 13
