Bomann GSPE 771.1 [21/31] Figure1

Minimum space when

the door is opened

ʧ ʨFigure2

Cabinet dimensions

ʧ ʨFigure1

Cabinet

Dishwasher

Door of

dishwashe r

Minimum space of 50mm

Less than 5mm

between the top

of dishwasher and

cabinet and the

outer door aligned

to cabinet.

90 

600 mm

820mm

100

580mm

Space between cabinet

bottom and floor

Electrical, drain and

water supply line

entrances

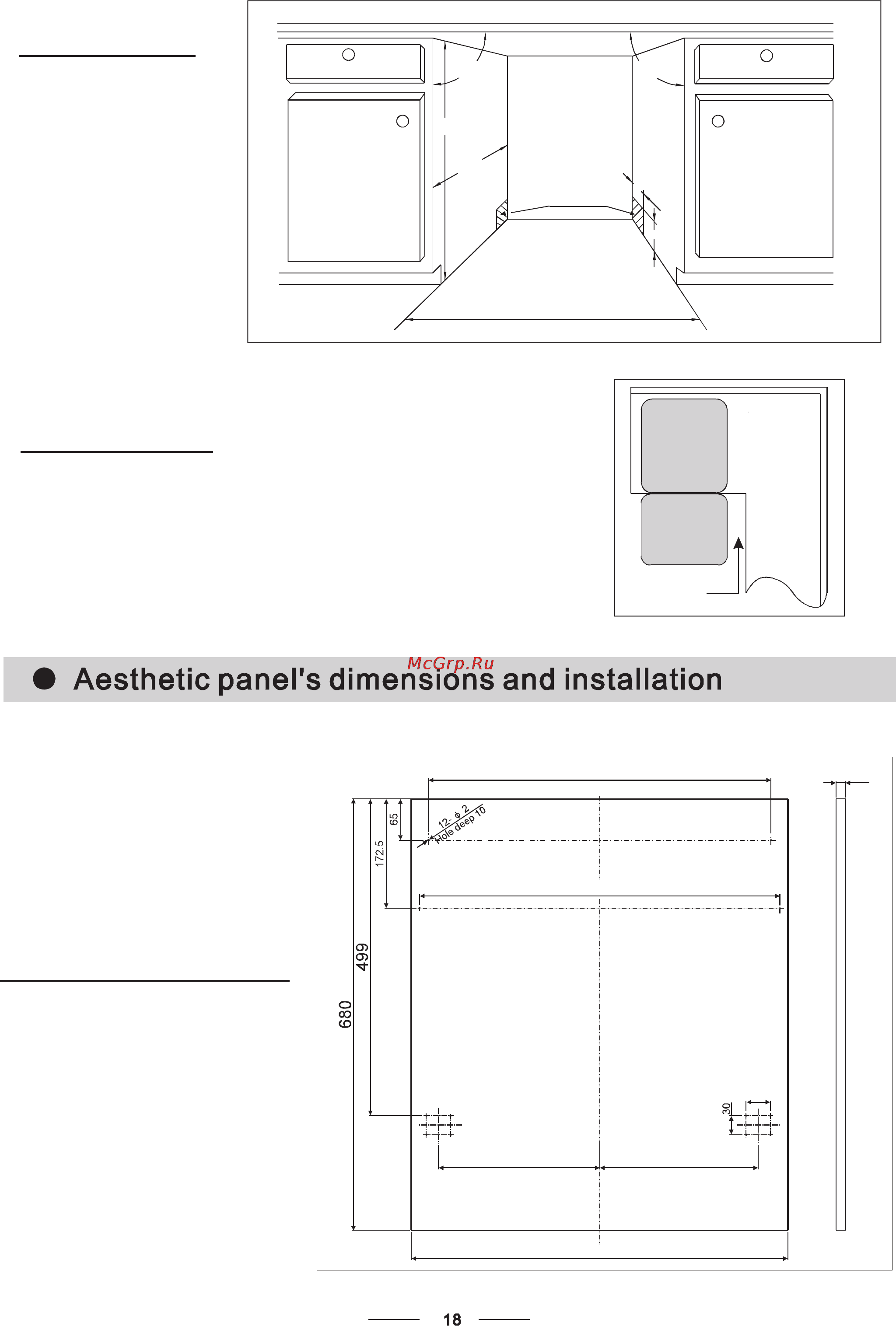

The aesthetic panel could be processed according to the Figure 3.

The aesthetic panel should

be processed in accordance

with the illustrated dimensions

ʧ ʨFigure3

(Unit: mm)

594

568

254

540

250
