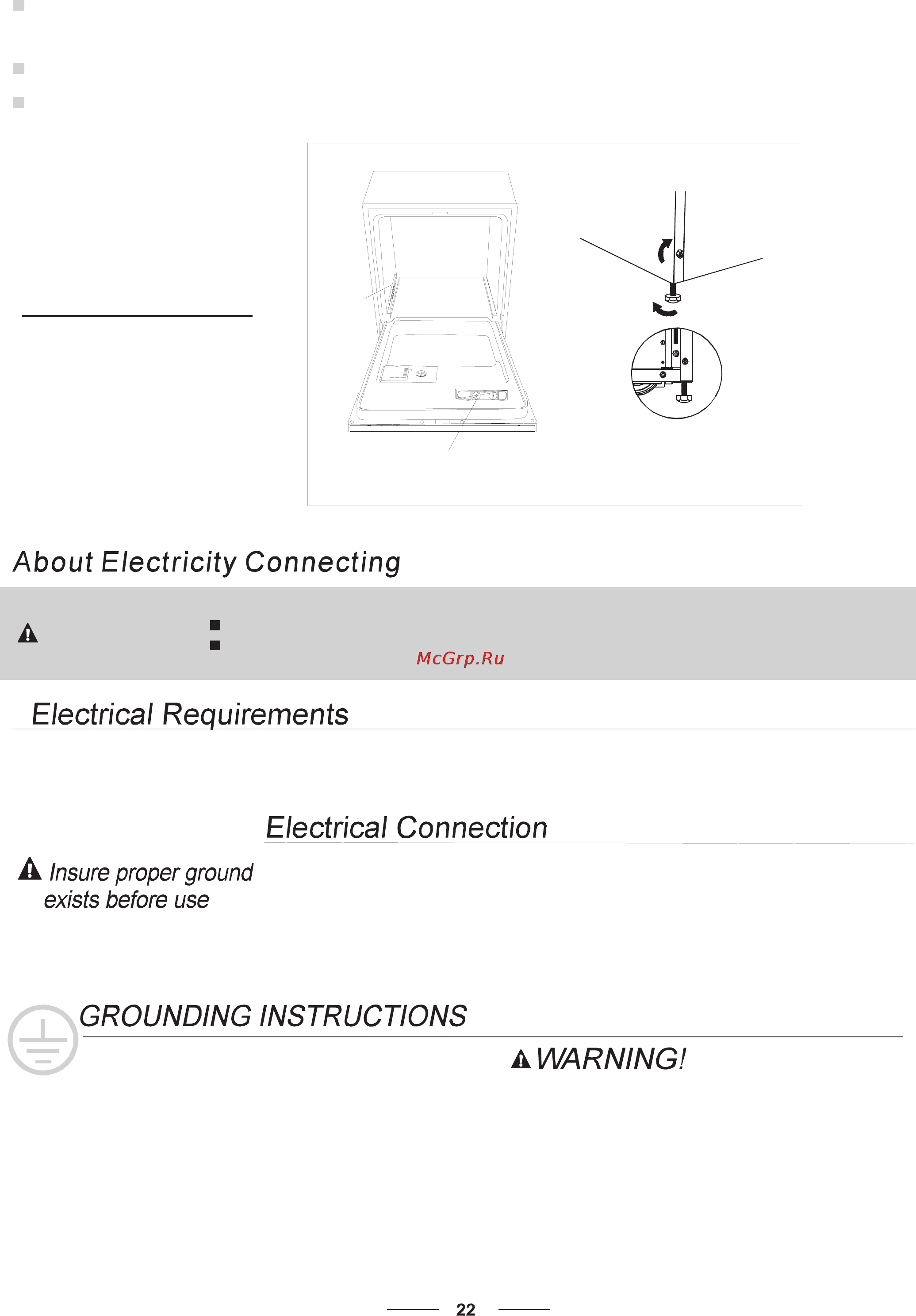

Bomann GSPE 771.1 [25/31] Figure 8
![Bomann GSPE 771.1 [25/31] Figure 8](/views2/1081031/page25/bg19.png)
This appliance must be earthed. In the event
of a malfunction or breakdown, earthing will
reduce the risk of electric shock by providing a
path of least resistance for the electric current.
This app liance is equipped with a cord having an
equipment-earthing conductor and an earthing
plug. The plug must be plugged into an appropriate
outlet that is installed and earthe d in acco rdance
with all local standards a nd requirements.
Improper connection of the equipment-
grounding conductor can result in the risk
of an electric shock. Che ck with a qualified
electrician or service representativ e if you
are in doubt whether the appliance is
properly grounded. Do not modify the plug
provided with the appliance; If it is not fit
for the outlet. Have a pro per outlet installed
by a qualified electrician.
Ensure the voltage and frequency of the power being corresponds to
those on the rating plate. Only insert the plug into an electrical socket
which is earthed properly. If the electrical socket to which the appliance
must be connected is not appropriate for the plu g , replace the socket,
rather than using a adaptors or the like as th ey could cause overheating and burns.
Plea se look at the rating label to know the rat ing voltage and connect the dishwash er to the appropriate power supply.
Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving
only this appliance.
WARNING!
For personal safety:
DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING
CONNECTION FROM THE POWER CORD.
Dishwasher must be level for proper dish rack operation and wash performance.
Place level on door and rack track inside the tub as shown to check that the
dishwasher is level.
level the dishwasher by adjusting the four leveling legs individually.
When level the dishwasher, please pay attention not to let the dishwasher tip over.
1
2
3
Illustration of feet adjustment
ʧ ʨFigure 8
&KHFN OHYHO
VLGH WR VLGH
-FWFM
UP #BDL
'SPOU
$IFDL
NOTE:
The maximum adjustment
height of the feet is 60 mm.
