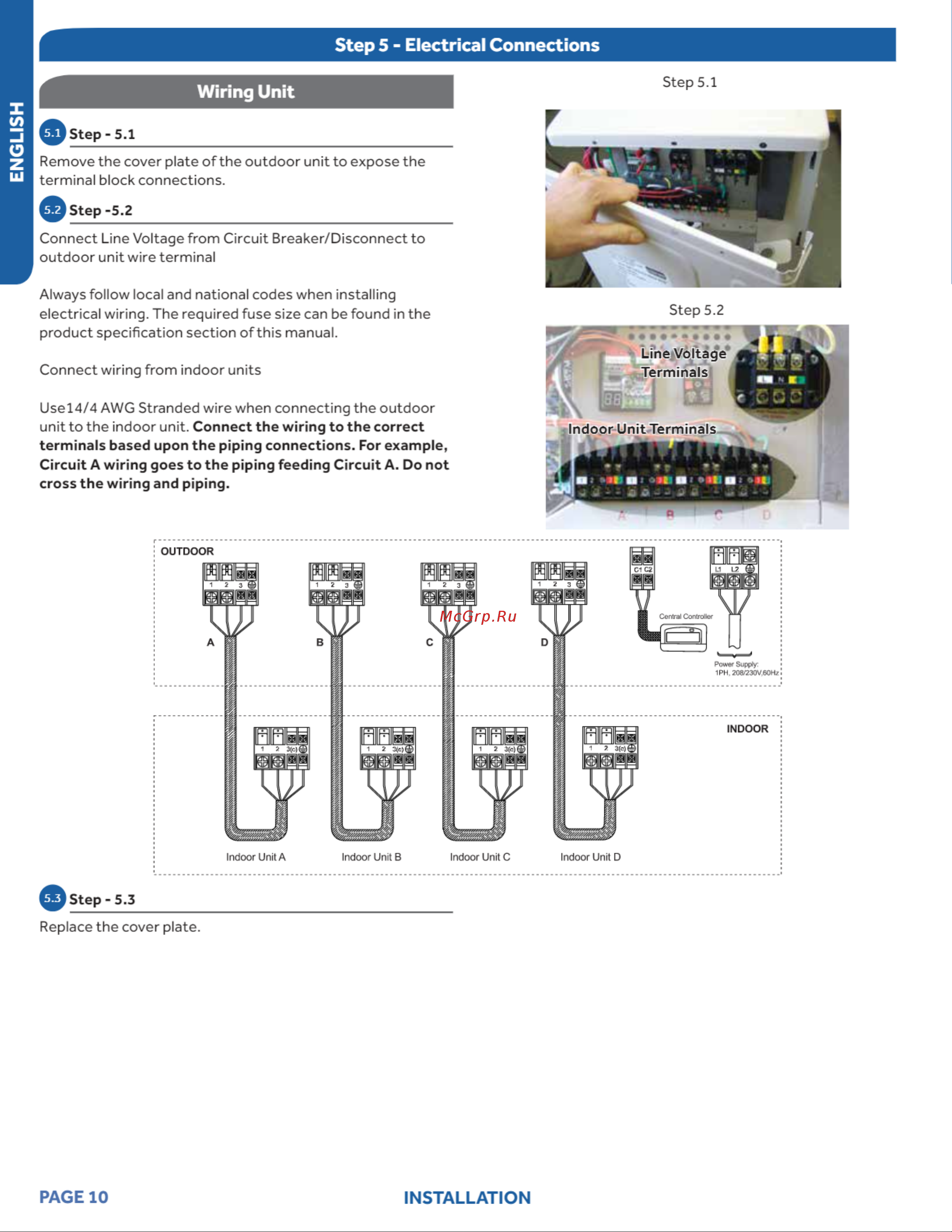

Step 5 Electrical Connections Step 5 1 ENGLISH Wiring Unit Step 5 1 Remove the cover plate of the outdoor unit to expose the terminal block connections Step 5 2 Connect Line Voltage from Circuit Breaker Disconnect to outdoor unit wire terminal Always follow local and national codes when installing electrical wiring The required fuse size can be found in the product specification section of this manual Step 5 2 Connect wiring from indoor units Usel4 4 AWG Stranded wire when connecting the outdoor unit to the indoor unit Connect the wiring to the correct terminals based upon the piping connections For example Circuit A wiring goes to the piping feeding Circuit A Do not cross the wiring and piping Indoor Unit A Indoor Unit B Indoor Unite Indoor Unit D Step 5 3 Replace the cover plate PAGE 10 INSTALLATION
