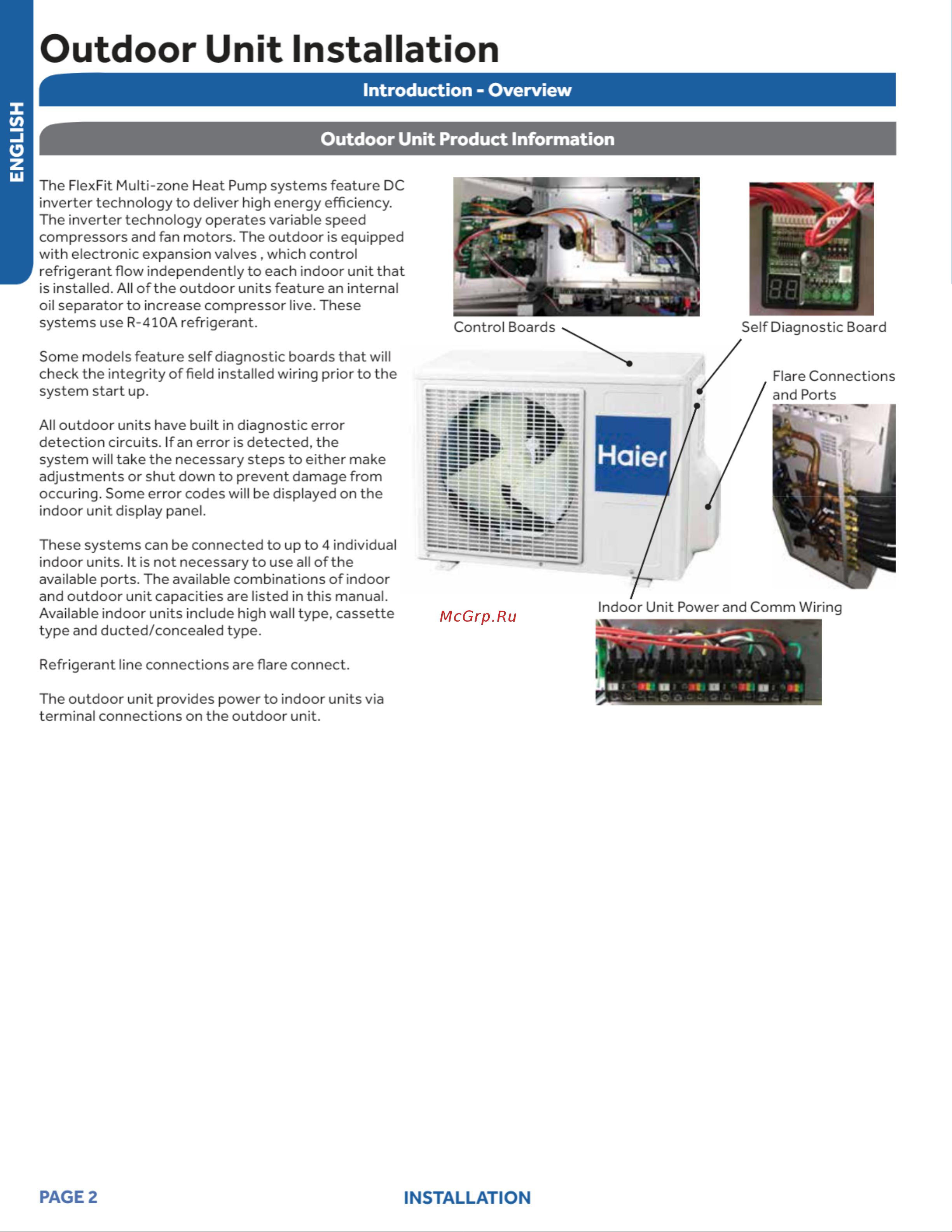

Outdoor Unit Installation Introduction Overview Outdoor Unit Product Information The FlexFit Multi zone Heat Pump systems feature DC inverter technology to deliver high energy efficiency The inverter technology operates variable speed compressors and fan motors The outdoor is equipped with electronic expansion valves which control refrigerant flow independently to each indoor unit that is installed All of the outdoor units feature an internal oil separator to increase compressor live These systems use R 410A refrigerant Some models feature self diagnostic boards that will check the integrity of field installed wiring prior to the system start up All outdoor units have built in diagnostic error detection circuits If an error is detected the system will take the necessary steps to either make adjustments or shut down to prevent damage from occuring Some error codes will be displayed on the indoor unit display panel These systems can be connected to up to 4 individual indoor units It is not necessary to use all of the available ports The available combinations of indoor and outdoor unit capacities are listed in this manual Available indoor units include high wall type cassette type and ducted concealed type Refrigerant line connections are flare connect The outdoor unit provides power to indoor units via terminal connections on the outdoor unit PAGE 2 INSTALLATION
